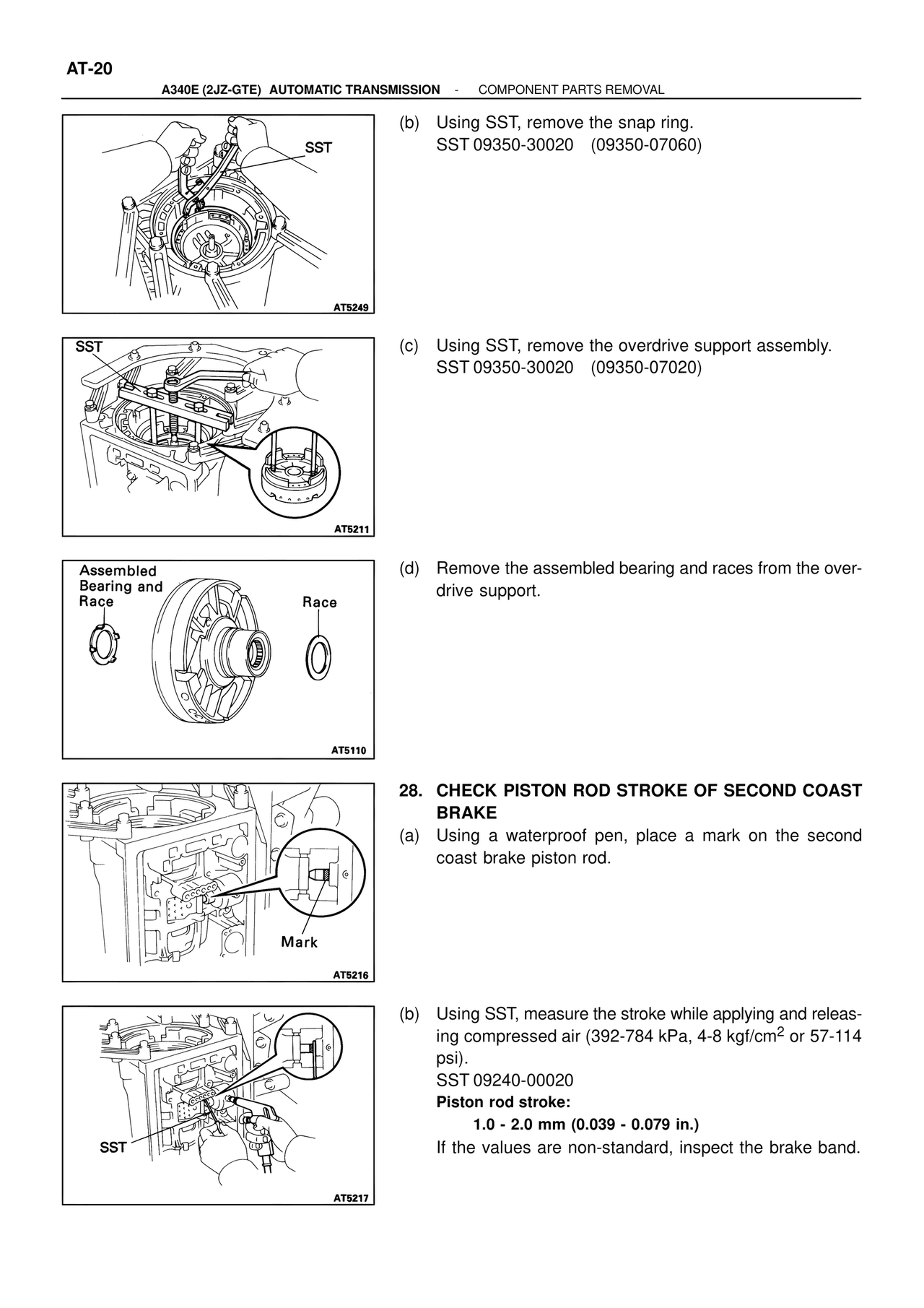

AT-20
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
SST
AT5249
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)
SST
AT5211
(c) Using SST, remove the overdrive support assembly.
SST 09350-30020 (09350-07020)
Assembled
Bearing and
Race
Race
AT5110
(d) Remove the assembled bearing and races from the over-
drive support.
Mark
AT5216
28. CHECK PISTON ROD STROKE OF SECOND COAST
BRAKE
(a) Using a waterproof pen, place a mark on the second
coast brake piston rod.
SST
AT5217
(b) Using SST, measure the stroke while applying and releas-
ing compressed air (392-784 kPa, 4-8 kgf/cm² or 57-114
psi).
SST 09240-00020
Piston rod stroke:
1.0 - 2.0 mm (0.039 - 0.079 in.)
If the values are non-standard, inspect the brake band.
