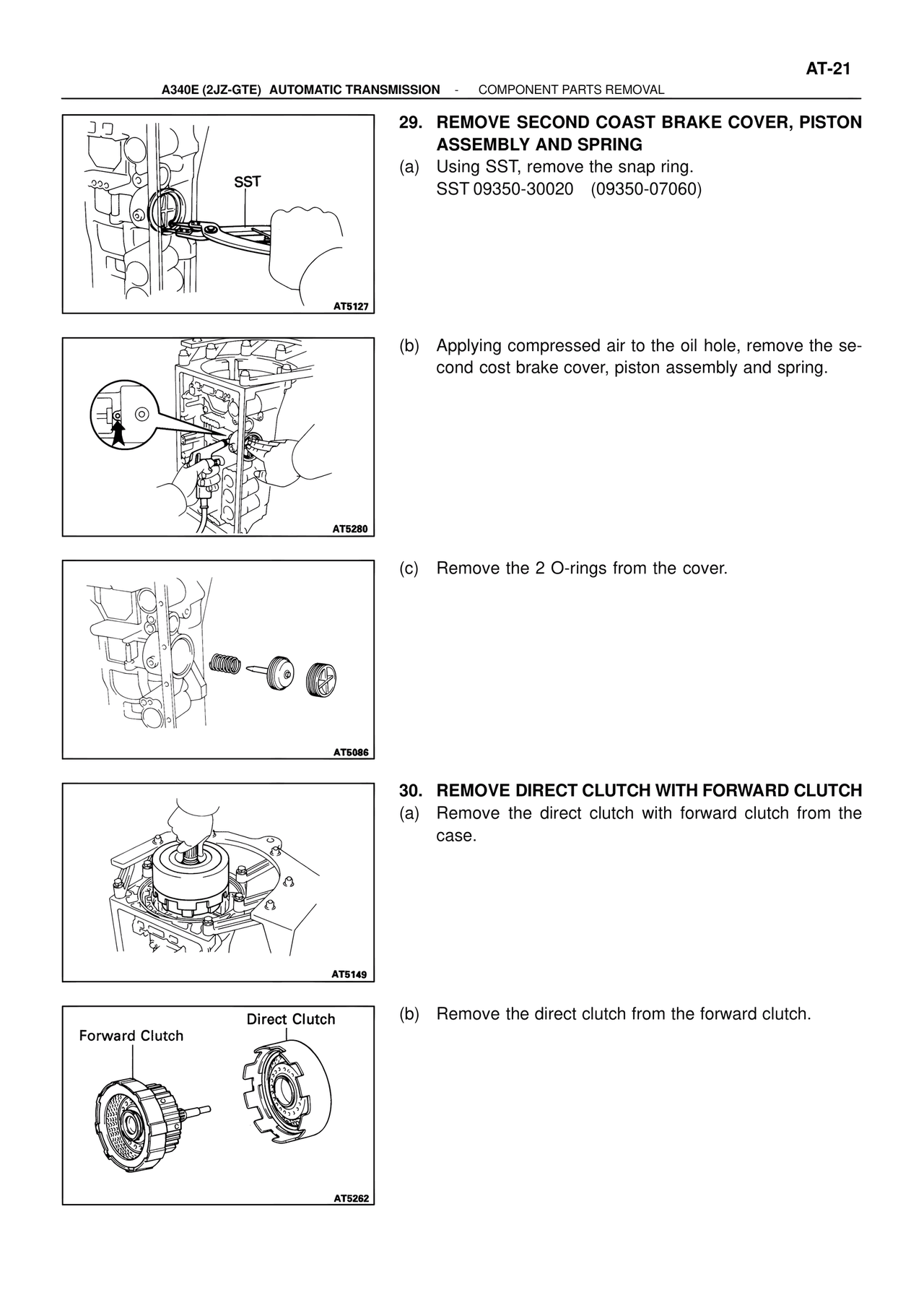

AT-21
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
SST
AT5127
29. REMOVE SECOND COAST BRAKE COVER, PISTON
ASSEMBLY AND SPRING
(a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)
AT5280
(b) Applying compressed air to the oil hole, remove the se-
cond cost brake cover, piston assembly and spring.
AT5086
(c) Remove the 2 O-rings from the cover.
AT5149
30. REMOVE DIRECT CLUTCH WITH FORWARD CLUTCH
(a) Remove the direct clutch with forward clutch from the
case.
Forward Clutch Direct Clutch
AT5262
(b) Remove the direct clutch from the forward clutch.
