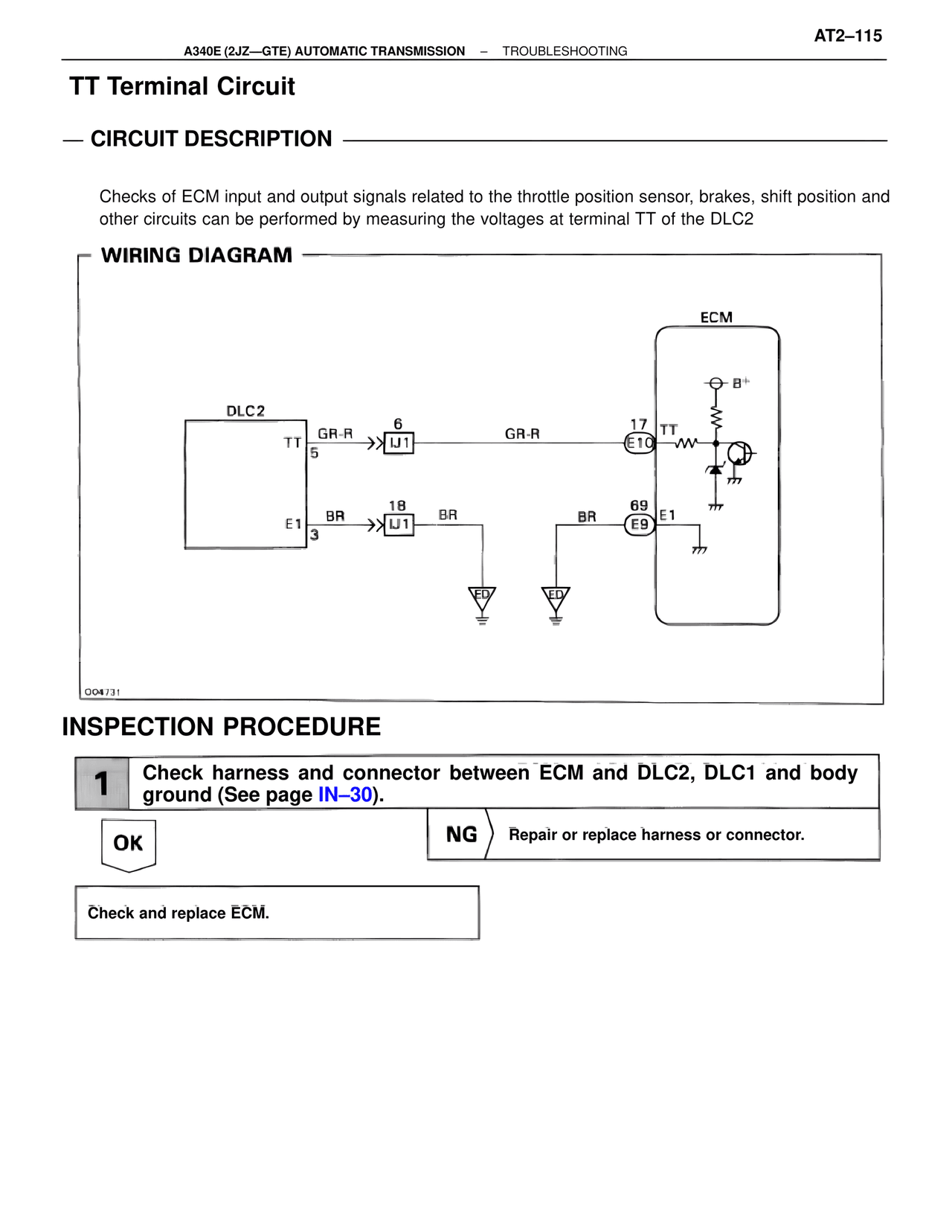

TT Terminal Circuit

— CIRCUIT DESCRIPTION —

Checks of ECM input and output signals related to the throttle position sensor, brakes, shift position and
other circuits can be performed by measuring the voltages at terminal TT of the DLC2

— WIRING DIAGRAM —

ECM

B+

DLC2
TT  GR-R  6        GR-R    17  TT
5        IJ1                    E10

E1   BR   18   BR      BR   69  E1
3        IJ1                E9

EO       EO

O04731

INSPECTION PROCEDURE

1   Check harness and connector between ECM and DLC2, DLC1 and body
    ground (See page IN–30).

OK                          NG    Repair or replace harness or connector.

Check and replace ECM.
