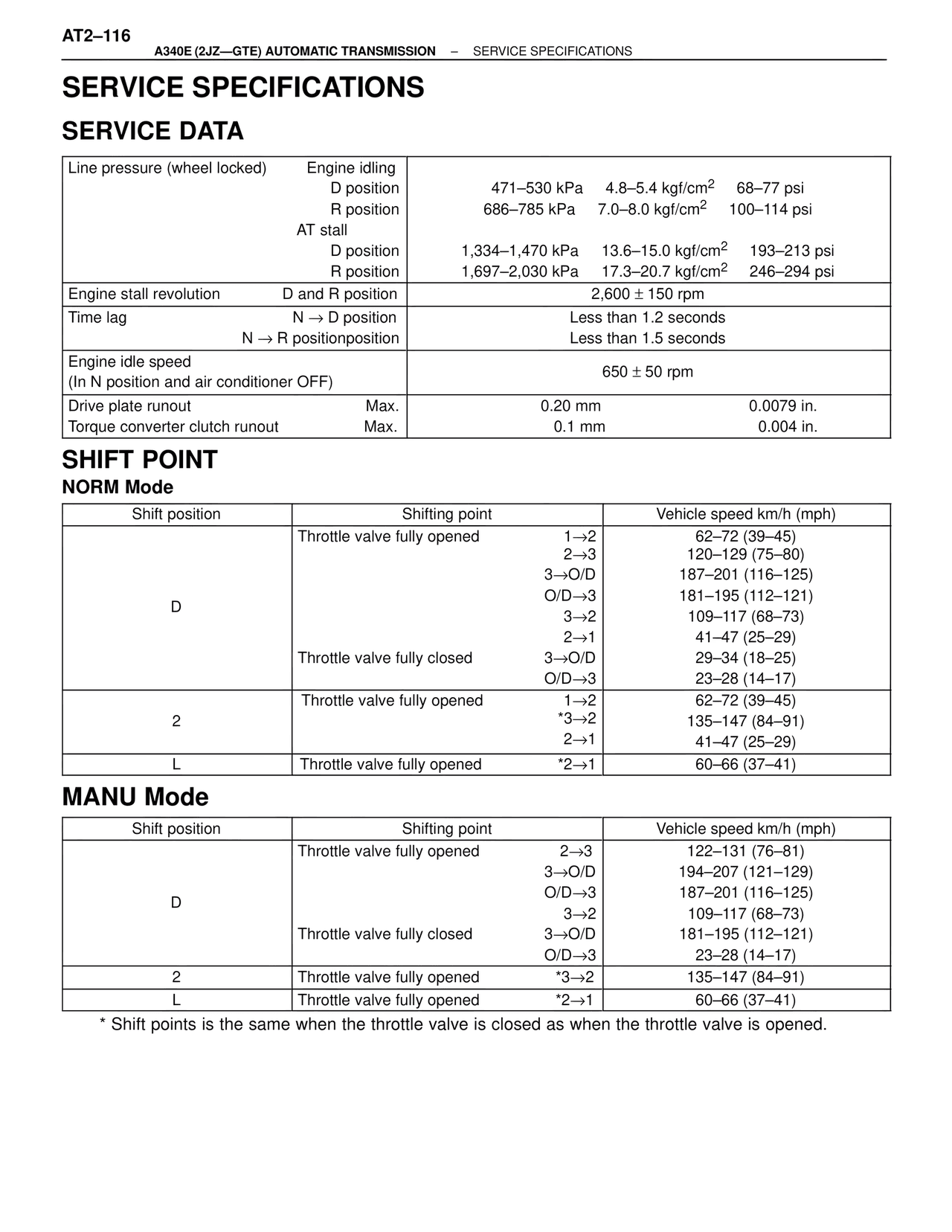

A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
Line pressure (wheel locked) Engine idling
D position 471–530 kPa 4.8–5.4 kgf/cm2 68–77 psi
R position 686–785 kPa 7.0–8.0 kgf/cm2 100–114 psi
AT stall
D position 1,334–1,470 kPa 13.6–15.0 kgf/cm2 193–213 psi
R position 1,697–2,030 kPa 17.3–20.7 kgf/cm2 246–294 psi
Engine stall revolution D and R position 2,600 ± 150 rpm
Time lag N → D position Less than 1.2 seconds
N → R positionposition Less than 1.5 seconds
Engine idle speed
(In N position and air conditioner OFF) 650 ± 50 rpm
Drive plate runout Max. 0.20 mm 0.0079 in.
Torque converter clutch runout Max. 0.1 mm 0.004 in.
SHIFT POINT
NORM Mode
Shift position Shifting point Vehicle speed km/h (mph)
D Throttle valve fully opened 1→2 62–72 (39–45)
2→3 120–129 (75–80)
3→O/D 187–201 (116–125)
O/D→3 181–195 (112–121)
3→2 109–117 (68–73)
2→1 41–47 (25–29)
Throttle valve fully closed 3→O/D 29–34 (18–25)
O/D→3 23–28 (14–17)
2 Throttle valve fully opened 1→2 62–72 (39–45)
*3→2 135–147 (84–91)
2→1 41–47 (25–29)
L Throttle valve fully opened *2→1 60–66 (37–41)
MANU Mode
Shift position Shifting point Vehicle speed km/h (mph)
D Throttle valve fully opened 2→3 122–131 (76–81)
3→O/D 194–207 (121–129)
O/D→3 187–201 (116–125)
3→2 109–117 (68–73)
Throttle valve fully closed 3→O/D 181–195 (112–121)
O/D→3 23–28 (14–17)
2 Throttle valve fully opened *3→2 135–147 (84–91)
L Throttle valve fully opened *2→1 60–66 (37–41)
* Shift points is the same when the throttle valve is closed as when the throttle valve is opened.
