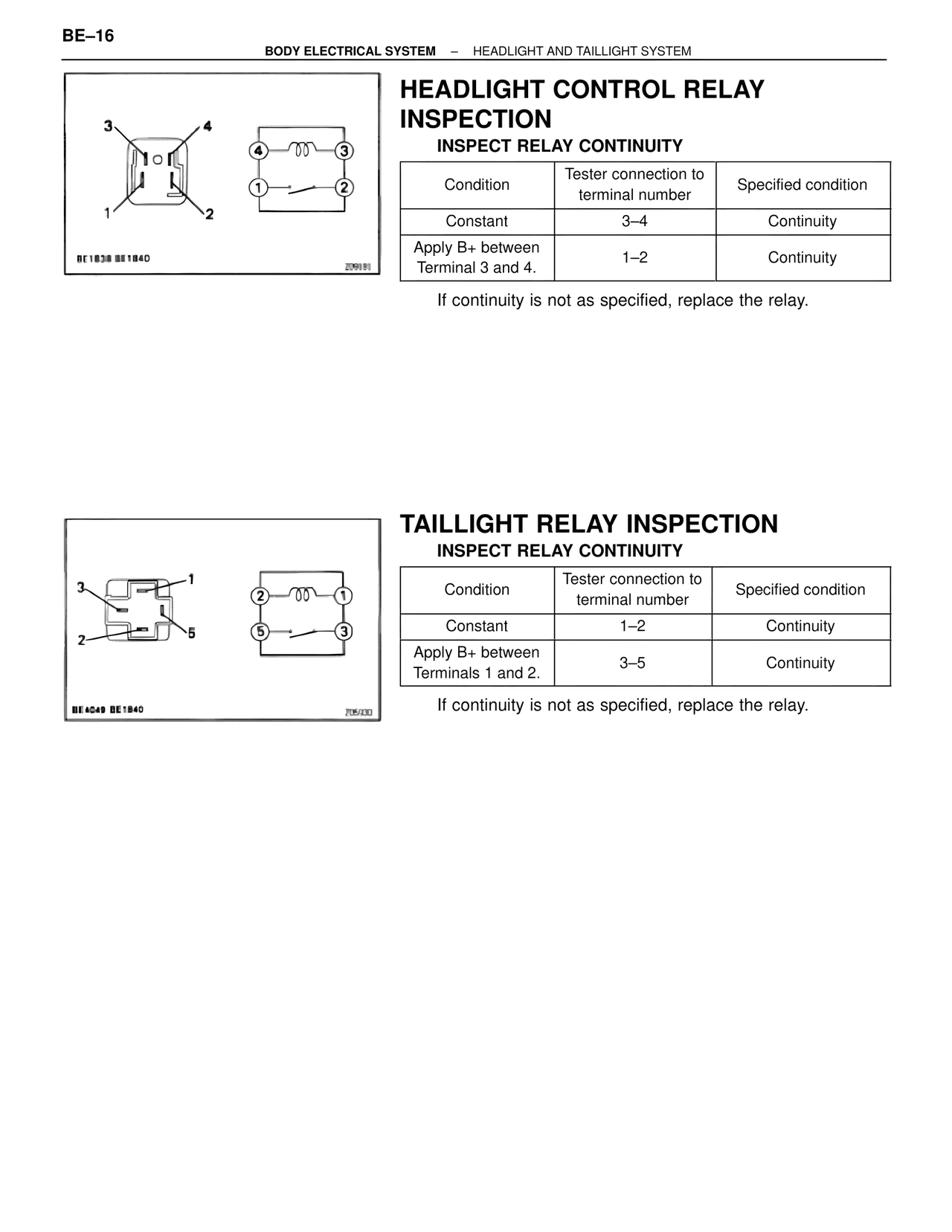

BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM
HEADLIGHT CONTROL RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Constant | 3–4 | Continuity
Apply B+ between Terminal 3 and 4. | 1–2 | Continuity
If continuity is not as specified, replace the relay.
BE1838 BE184C
209989
TAILLIGHT RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Constant | 1–2 | Continuity
Apply B+ between Terminals 1 and 2. | 3–5 | Continuity
If continuity is not as specified, replace the relay.
