BE–160
BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM

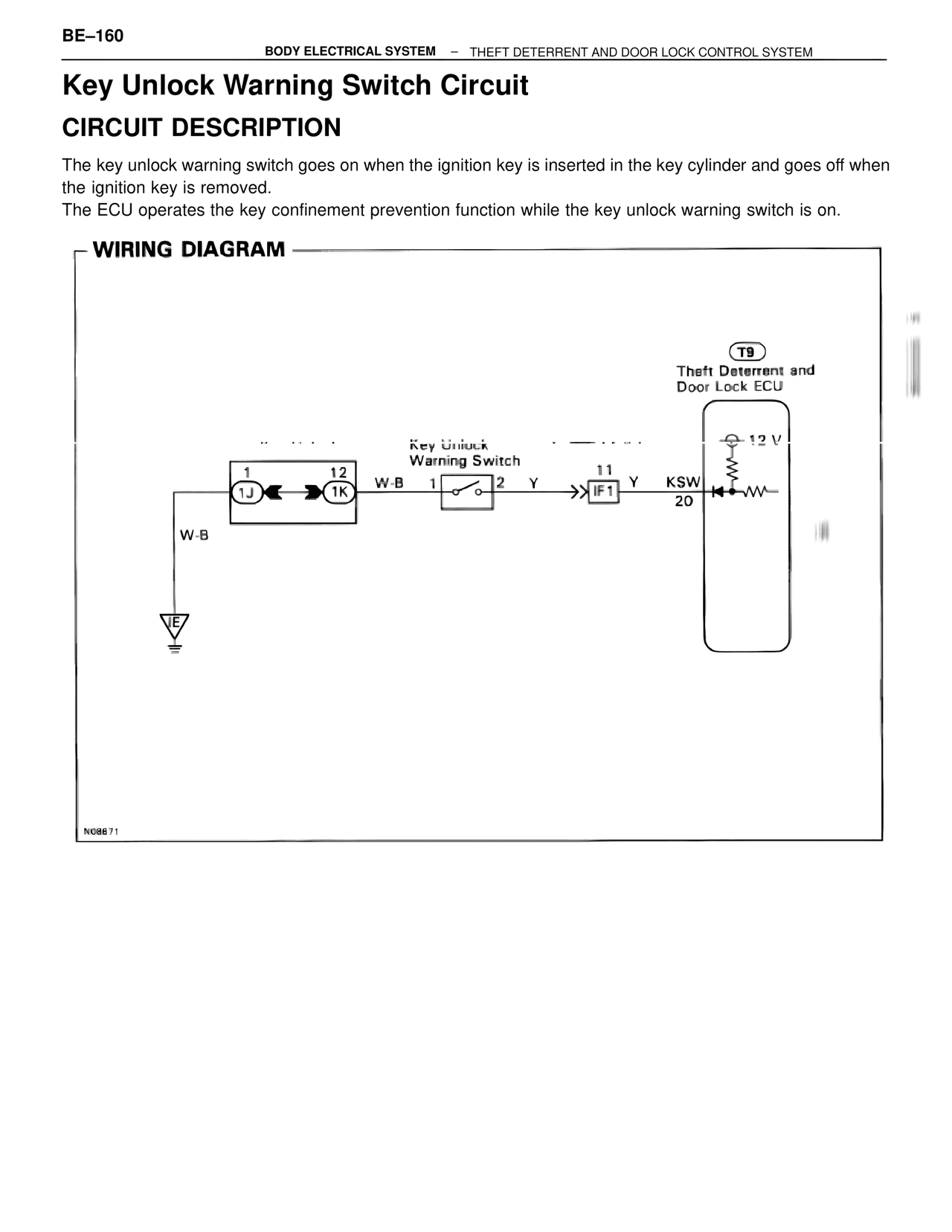

Key Unlock Warning Switch Circuit
CIRCUIT DESCRIPTION
The key unlock warning switch goes on when the ignition key is inserted in the key cylinder and goes off when the ignition key is removed.
The ECU operates the key confinement prevention function while the key unlock warning switch is on.
WIRING DIAGRAM
T9
Theft Deterrent and
Door Lock ECU
12 V
Key Unlock
Warning Switch
1 12
1J 1K
W-B 1 2 Y 11 Y KSW
IF1 20
W-B
E
N09871
