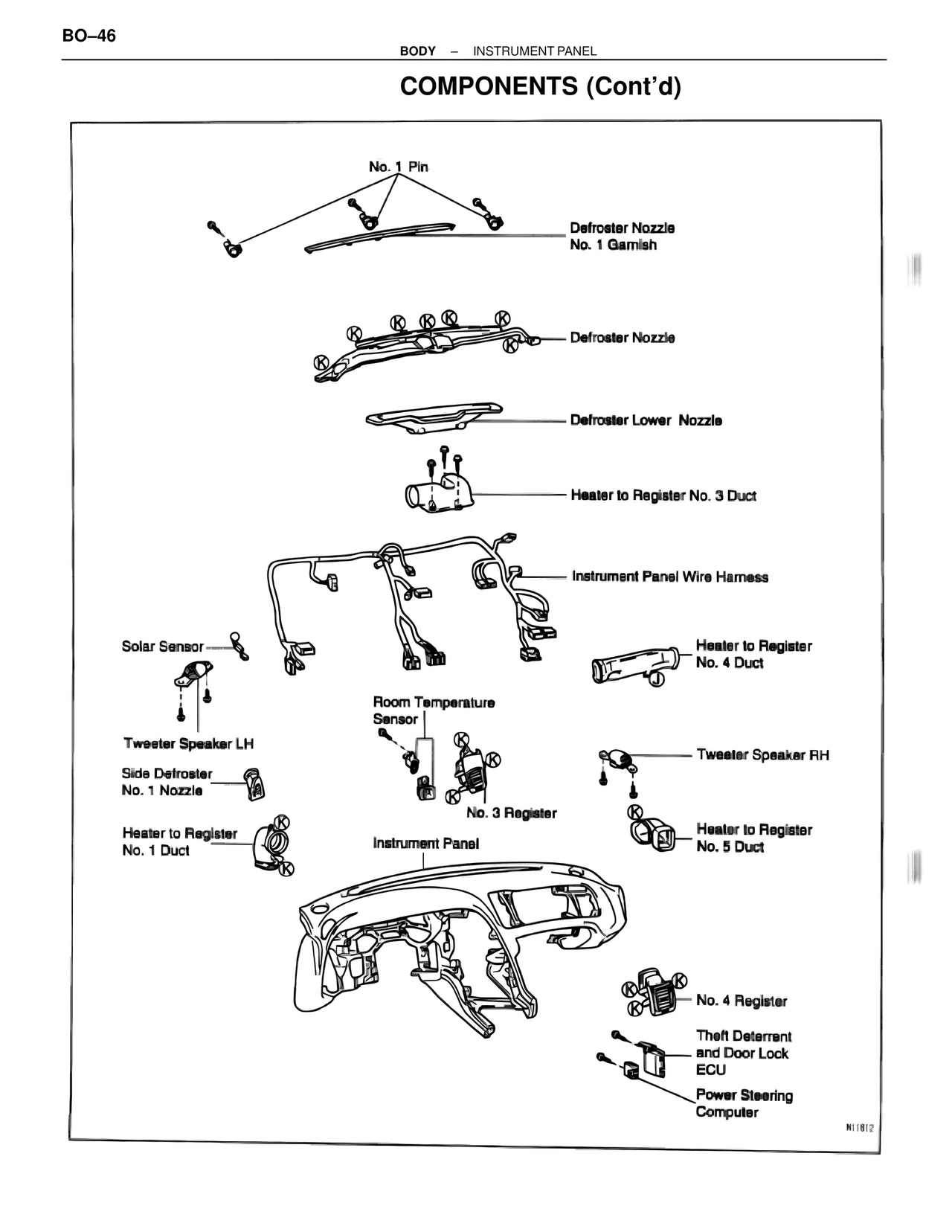

BO–46
BODY – INSTRUMENT PANEL
COMPONENTS (Cont'd)
No. 1 Pin
Defroster Nozzle
No. 1 Garnish
Defroster Nozzle
Defroster Lower Nozzle
Heater to Register No. 3 Duct
Instrument Panel Wire Harness
Solar Sensor
Heater to Register
No. 4 Duct
Room Temperature
Sensor
Tweeter Speaker LH
Tweeter Speaker RH
Side Defroster
No. 1 Nozzle
No. 3 Register
Heater to Register
No. 1 Duct
Instrument Panel
Heater to Register
No. 5 Duct
No. 4 Register
Theft Deterrent
and Door Lock
ECU
Power Steering
Computer
N11912
