BODY DIMENSIONS
DI-11

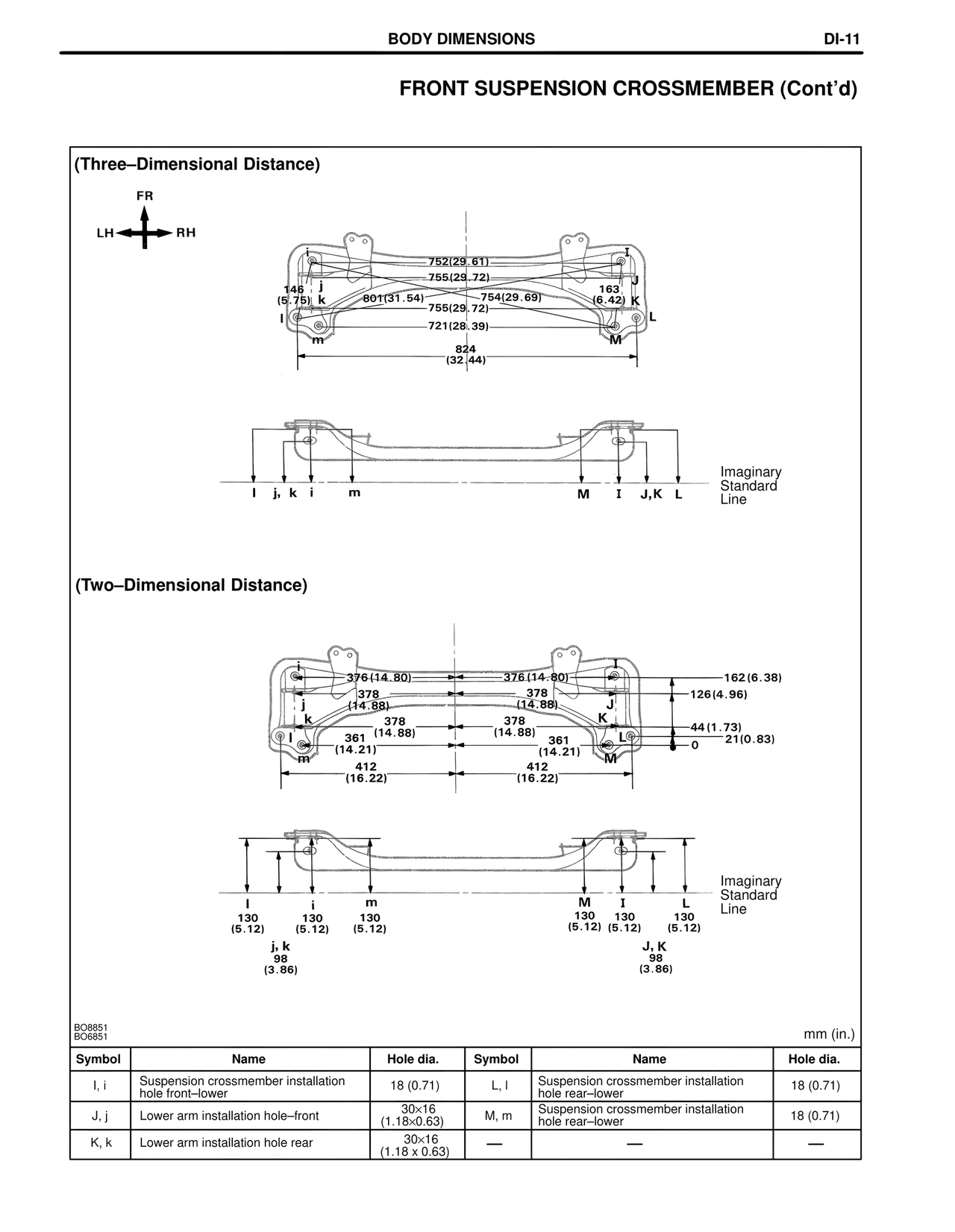

FRONT SUSPENSION CROSSMEMBER (Cont'd)

(Three–Dimensional Distance)

FR
LH ◄►RH

752(29.61)
755(29.72)
146
(5.75) k
801(31.54)
754(29.69)
163
(6.42) K
755(29.72)
721(28.39)
824
(32.44)

Imaginary
Standard
Line

I  j, k  i     m                    M    I   J,K  L

(Two–Dimensional Distance)

376(14.80)        376(14.80)
378                    378
(14.88)   J       (14.88)  J
k
378               378
(14.88)          (14.88)
I
361                    361
(14.21)               (14.21)
m
412                    412
(16.22)               (16.22)

162(6.38)
126(4.96)

K
L●
o
44(1.73)
21(0.83)

M

Imaginary
Standard
Line

I      i      m                    M    I      L
130    130    130              130   130   130
(5.12) (5.12) (5.12)         (5.12) (5.12) (5.12)

j, k                              J, K
98                                98
(3.86)                           (3.86)

BO8851
BO8851
mm (in.)

Symbol | Name | Hole dia. | Symbol | Name | Hole dia.

I, i | Suspension crossmember installation hole front–lower | 18 (0.71) | L, l | Suspension crossmember installation hole rear–lower | 18 (0.71)

J, j | Lower arm installation hole–front | 30×16 (1.18×0.63) | M, m | Suspension crossmember installation hole rear–lower | 18 (0.71)

K, k | Lower arm installation hole rear | 30×16 (1.18 x 0.63) | — | — | —
