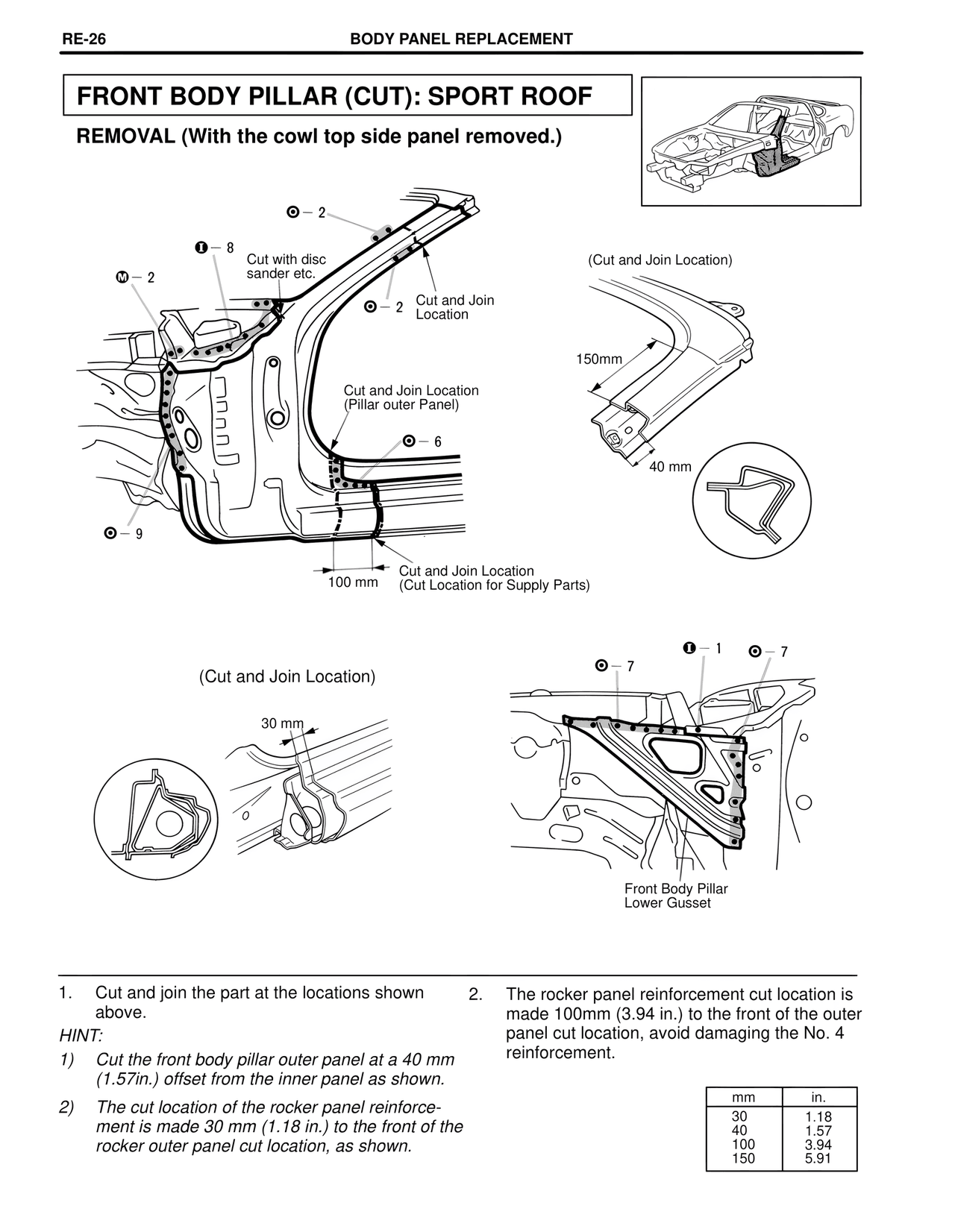

RE-26          BODY PANEL REPLACEMENT

FRONT BODY PILLAR (CUT): SPORT ROOF

REMOVAL (With the cowl top side panel removed.)

⊙ - 2
❶ - 8
Cut with disc
sander etc.
Ⓜ - 2
⊙ - 2
Cut and Join
Location

(Cut and Join Location)

150mm

40 mm

Cut and Join Location
(Pillar outer Panel)

⊙ - 6

⊙ - 9

100 mm     Cut and Join Location
                 (Cut Location for Supply Parts)

(Cut and Join Location)

30 mm

⊙ - 7     ❶ - 1     ⊙ - 7

Front Body Pillar
Lower Gusset

1.    Cut and join the part at the locations shown
       above.

HINT:
1)   Cut the front body pillar outer panel at a 40 mm
      (1.57in.) offset from the inner panel as shown.

2)   The cut location of the rocker panel reinforce-
      ment is made 30 mm (1.18 in.) to the front of the
      rocker outer panel cut location, as shown.

2.    The rocker panel reinforcement cut location is
       made 100mm (3.94 in.) to the front of the outer
       panel cut location, avoid damaging the No. 4
       reinforcement.

mm       in.
30        1.18
40        1.57
100      3.94
150      5.91
