RE-44                    BODY PANEL REPLACEMENT

QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Sport Roof Right Side

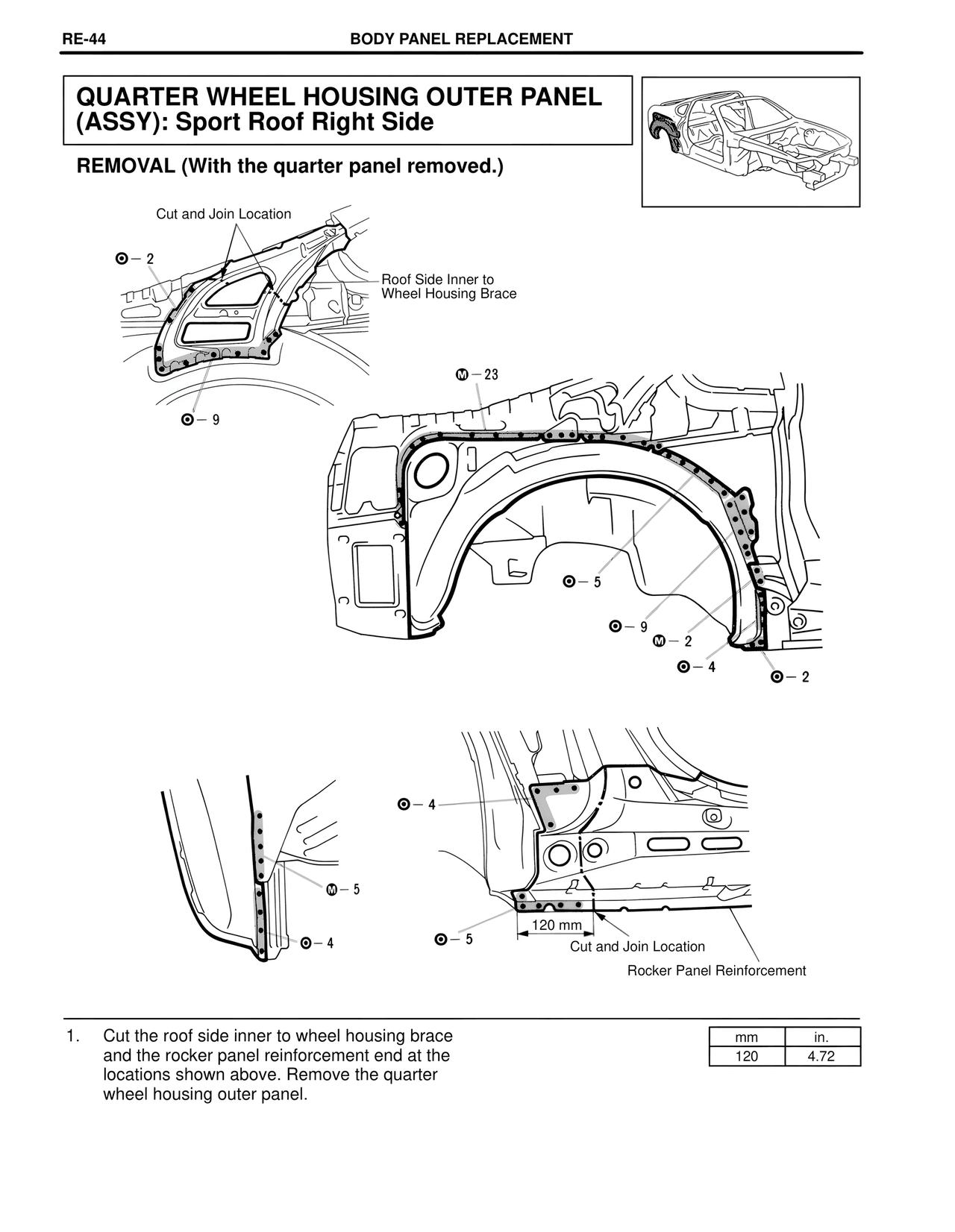

REMOVAL (With the quarter panel removed.)

Cut and Join Location

⊙ - 2

Roof Side Inner to
Wheel Housing Brace

Ⓜ - 23

⊙ - 9

⊙ - 5

⊙ - 9
Ⓜ - 2
⊙ - 4

⊙ - 2

⊙ - 4

Ⓜ - 5

⊙ - 4

⊙ - 4

⊙ - 5

120 mm
Cut and Join Location

Rocker Panel Reinforcement

1.    Cut the roof side inner to wheel housing brace
      and the rocker panel reinforcement end at the
      locations shown above. Remove the quarter
      wheel housing outer panel.

mm       in.
120      4.72
