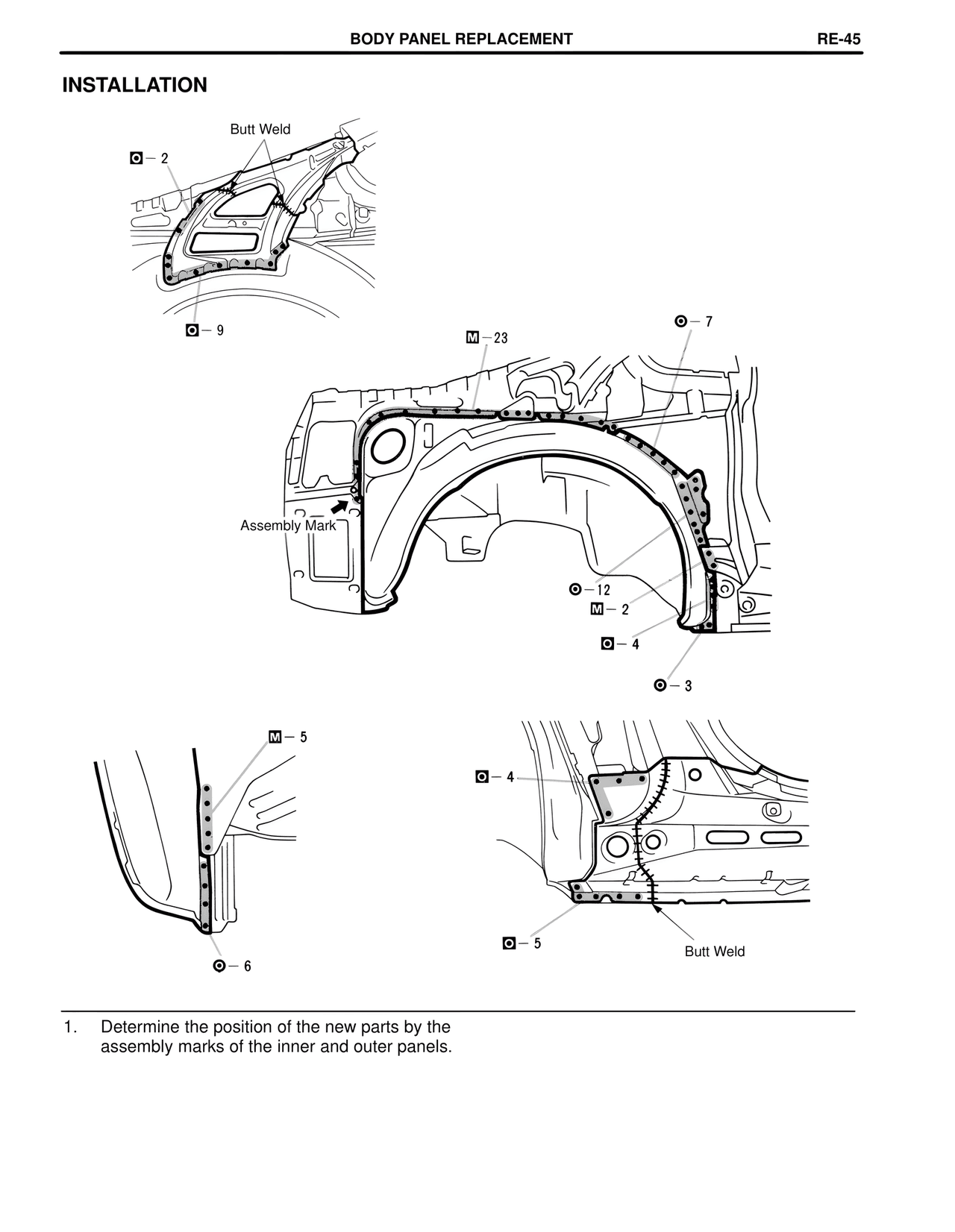

BODY PANEL REPLACEMENT
RE-45
INSTALLATION
Butt Weld
O - 2
O - 9
O - 7
M - 23
Assembly Mark
O - 12
M - 2
O - 4
O - 3
M - 5
O - 4
O
O - 6
O - 5
Butt Weld
1. Determine the position of the new parts by the
assembly marks of the inner and outer panels.
