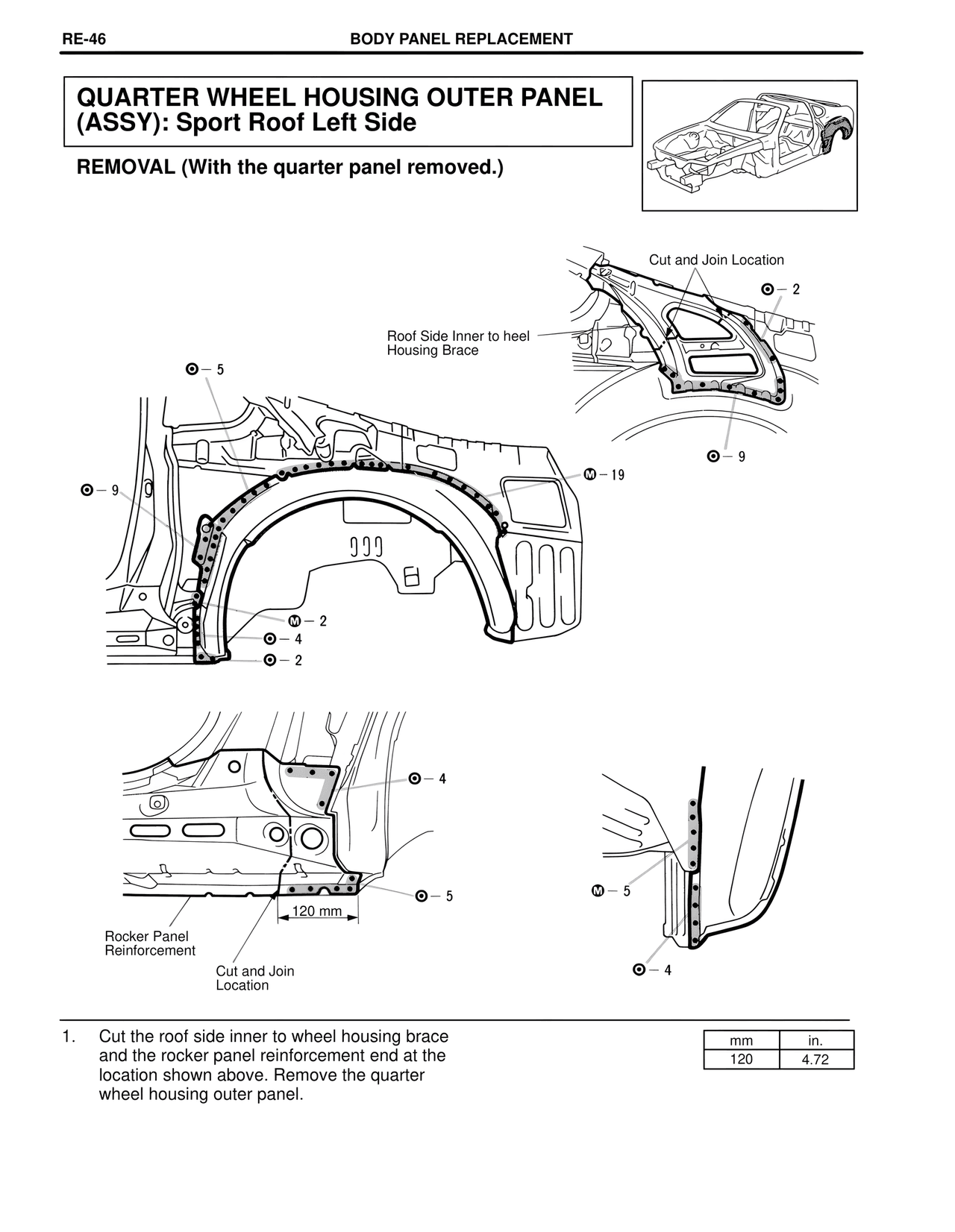

CR/Collision Repair — Quarter Wheel Housing Outer Panel (Assy): Sport Roof Left Side, page 69

RE-46                    BODY PANEL REPLACEMENT

QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Sport Roof Left Side

REMOVAL (With the quarter panel removed.)

Cut and Join Location
⊙ - 2

Roof Side Inner to heel
Housing Brace

⊙ - 5

⊙ - 9

M - 19

⊙ - 9

M - 2
⊙ - 4
⊙ - 2

⊙ - 4

⊙ - 5
120 mm

M - 5

⊙ - 4

Rocker Panel
Reinforcement

Cut and Join
Location

1.    Cut the roof side inner to wheel housing brace
      and the rocker panel reinforcement end at the
      location shown above. Remove the quarter
      wheel housing outer panel.

mm        in.
120       4.72
