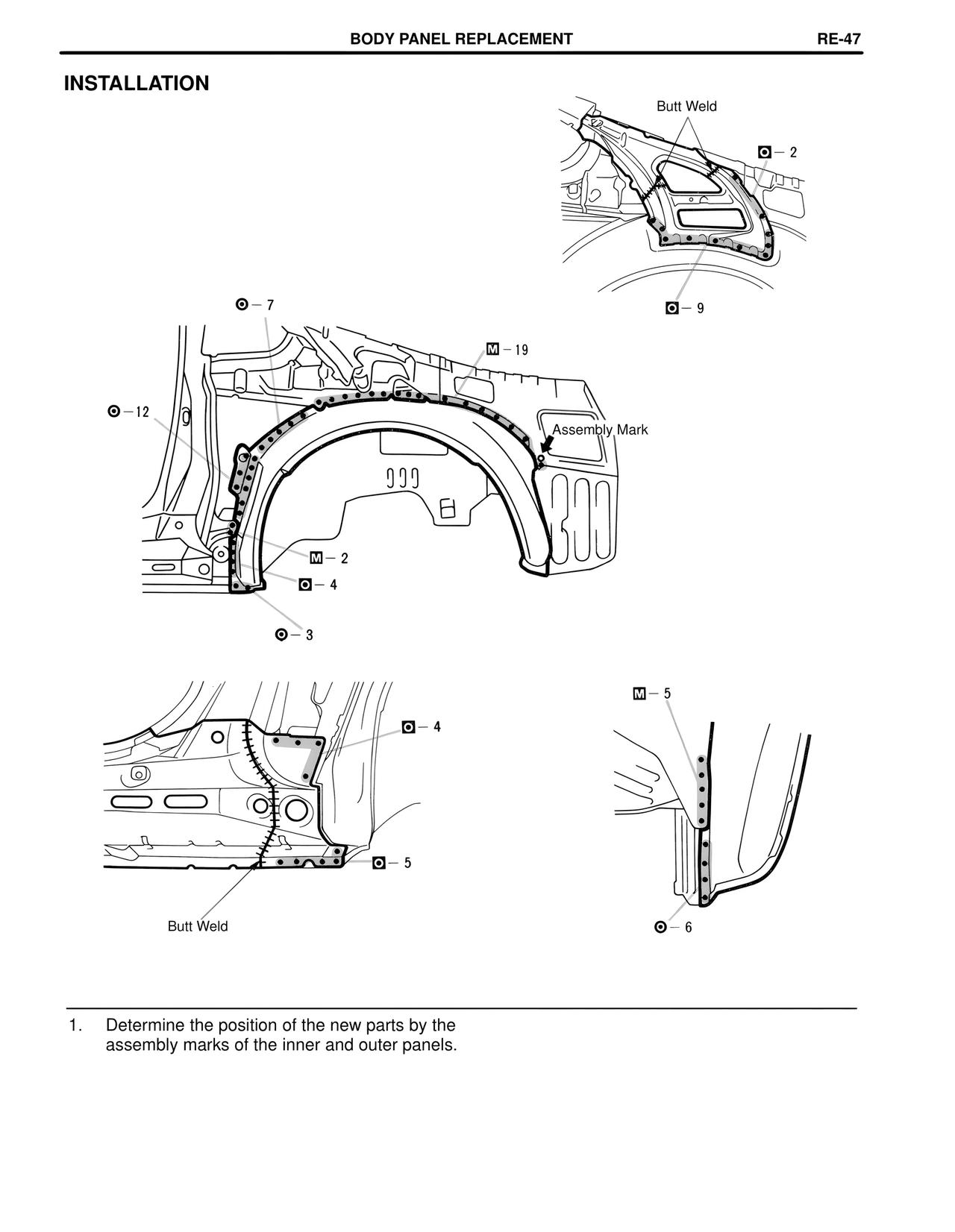

BODY PANEL REPLACEMENT RE-47 INSTALLATION Butt Weld ⊙ — 2 ⊙ — 9 ⊙ — 7 M — 19 ⊙ — 12 Assembly Mark M — 2 ⊙ — 4 ⊙ — 3 ⊙ — 4 M — 5 ⊙ — 5 Butt Weld ⊙ — 6 1. Determine the position of the new parts by the assembly marks of the inner and outer panels.
