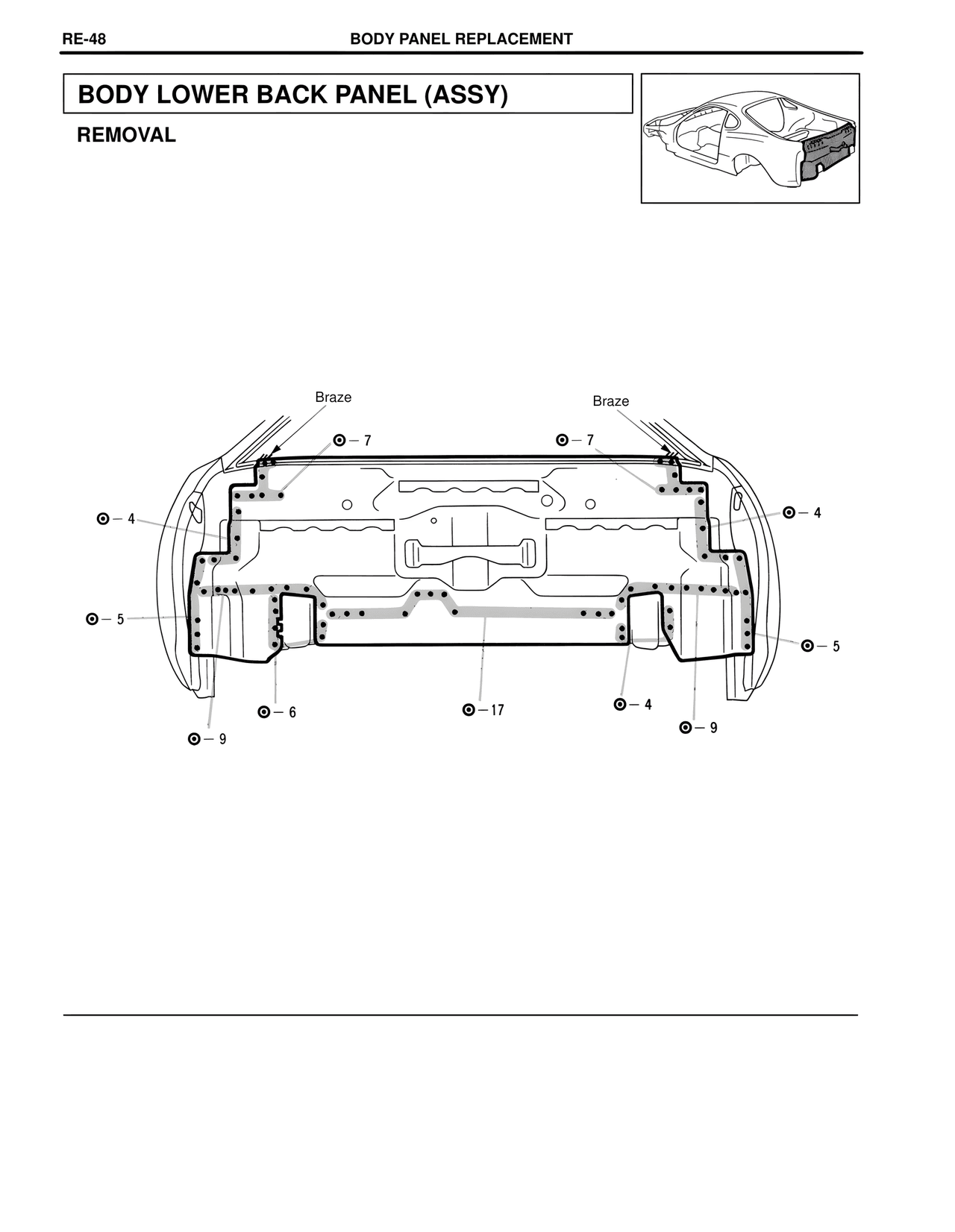

CR/Collision Repair — Body Lower Back Panel (Assy), page 71

RE-48                    BODY PANEL REPLACEMENT

BODY LOWER BACK PANEL (ASSY)

REMOVAL

Braze                    Braze

⊙ - 7                    ⊙ - 7

⊙ - 4                                                        ⊙ - 4

⊙ - 5                                                        ⊙ - 5

⊙ - 6          ⊙ - 17          ⊙ - 4

⊙ - 9                                        ⊙ - 9
