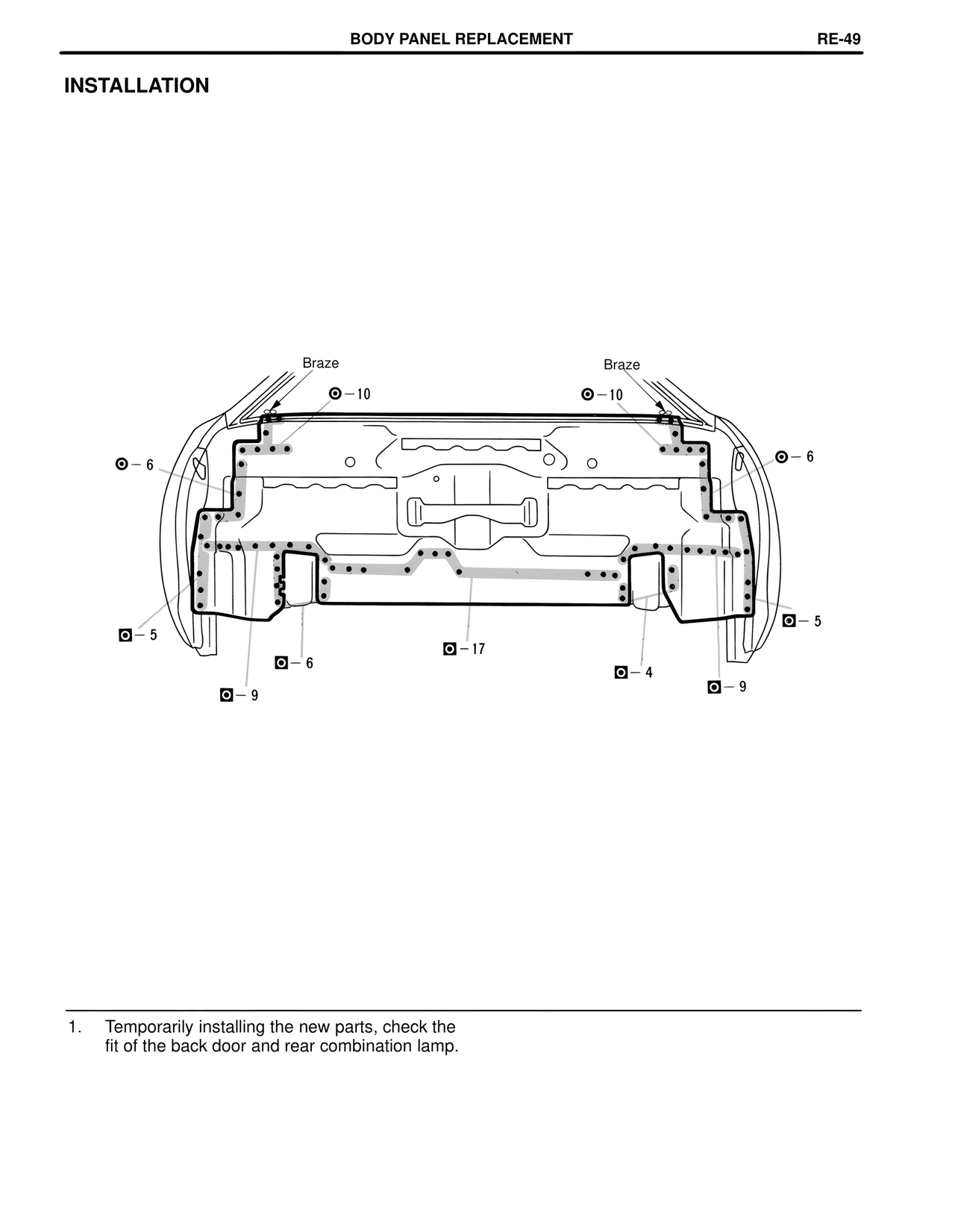

INSTALLATION — MK4 Supra Collision Repair, page 72
100%
BODY PANEL REPLACEMENT RE-49 INSTALLATION Braze Braze ⊙-10 ⊙-10 ⊙-6 ⊙-6 ⊙-5 ⊙-5 ⊙-9 ⊙-6 ⊙-17 ⊙-4 ⊙-9 1. Temporarily installing the new parts, check the fit of the back door and rear combination lamp.
