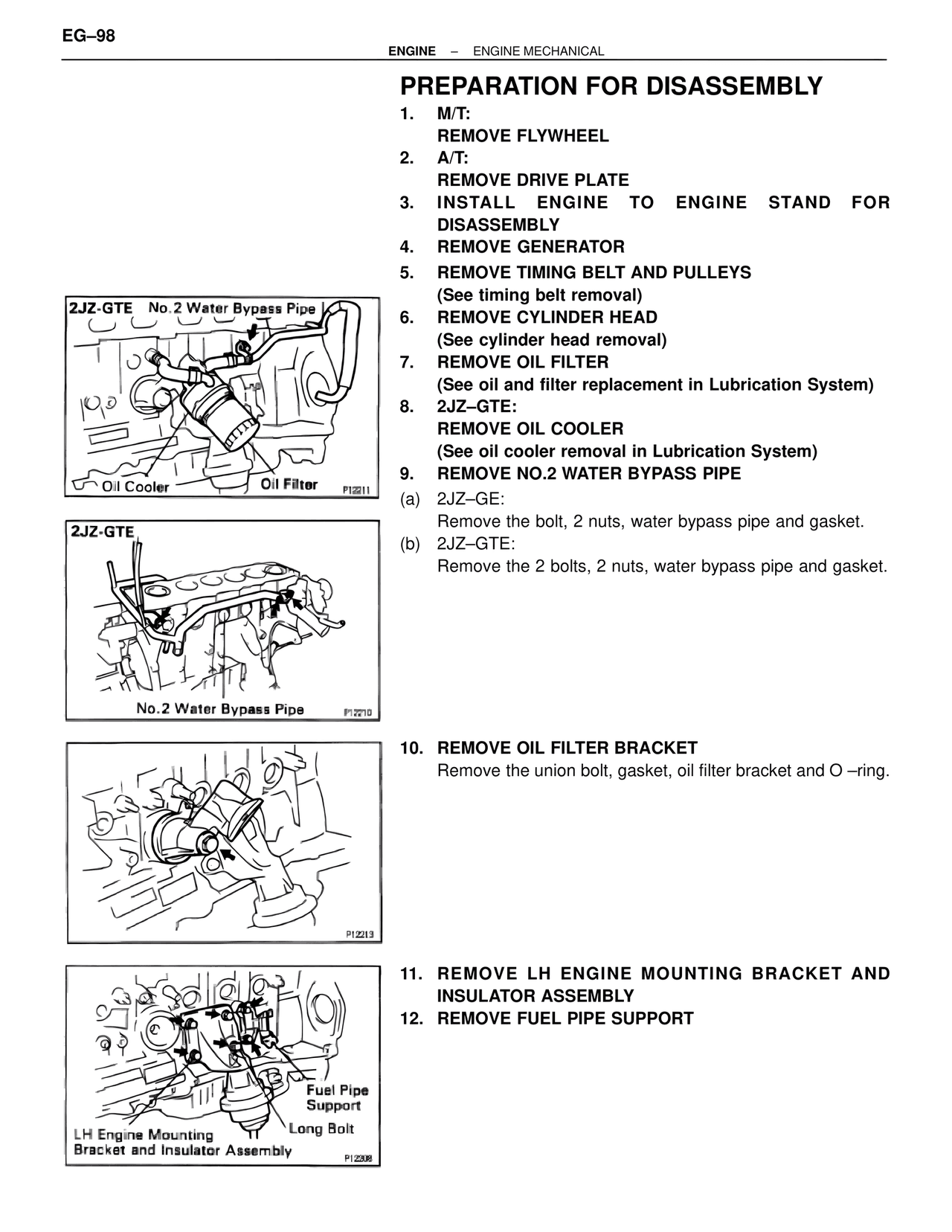

EG–98
ENGINE – ENGINE MECHANICAL
PREPARATION FOR DISASSEMBLY
1. M/T:
REMOVE FLYWHEEL
2. A/T:
REMOVE DRIVE PLATE
3. INSTALL ENGINE TO ENGINE STAND FOR DISASSEMBLY
4. REMOVE GENERATOR
5. REMOVE TIMING BELT AND PULLEYS
(See timing belt removal)
6. REMOVE CYLINDER HEAD
(See cylinder head removal)
7. REMOVE OIL FILTER
(See oil and filter replacement in Lubrication System)
8. 2JZ–GTE:
REMOVE OIL COOLER
(See oil cooler removal in Lubrication System)
9. REMOVE NO.2 WATER BYPASS PIPE
(a) 2JZ–GE:
Remove the bolt, 2 nuts, water bypass pipe and gasket.
(b) 2JZ–GTE:
Remove the 2 bolts, 2 nuts, water bypass pipe and gasket.
2JZ-GTE No.2 Water Bypass Pipe
Oil Cooler
Oil Filter
P12211
2JZ-GTE
No.2 Water Bypass Pipe
P12210
P12213
10. REMOVE OIL FILTER BRACKET
Remove the union bolt, gasket, oil filter bracket and O –ring.
11. REMOVE LH ENGINE MOUNTING BRACKET AND INSULATOR ASSEMBLY
12. REMOVE FUEL PIPE SUPPORT
LH Engine Mounting Bracket and Insulator Assembly
Fuel Pipe Support
Long Bolt
P12208
