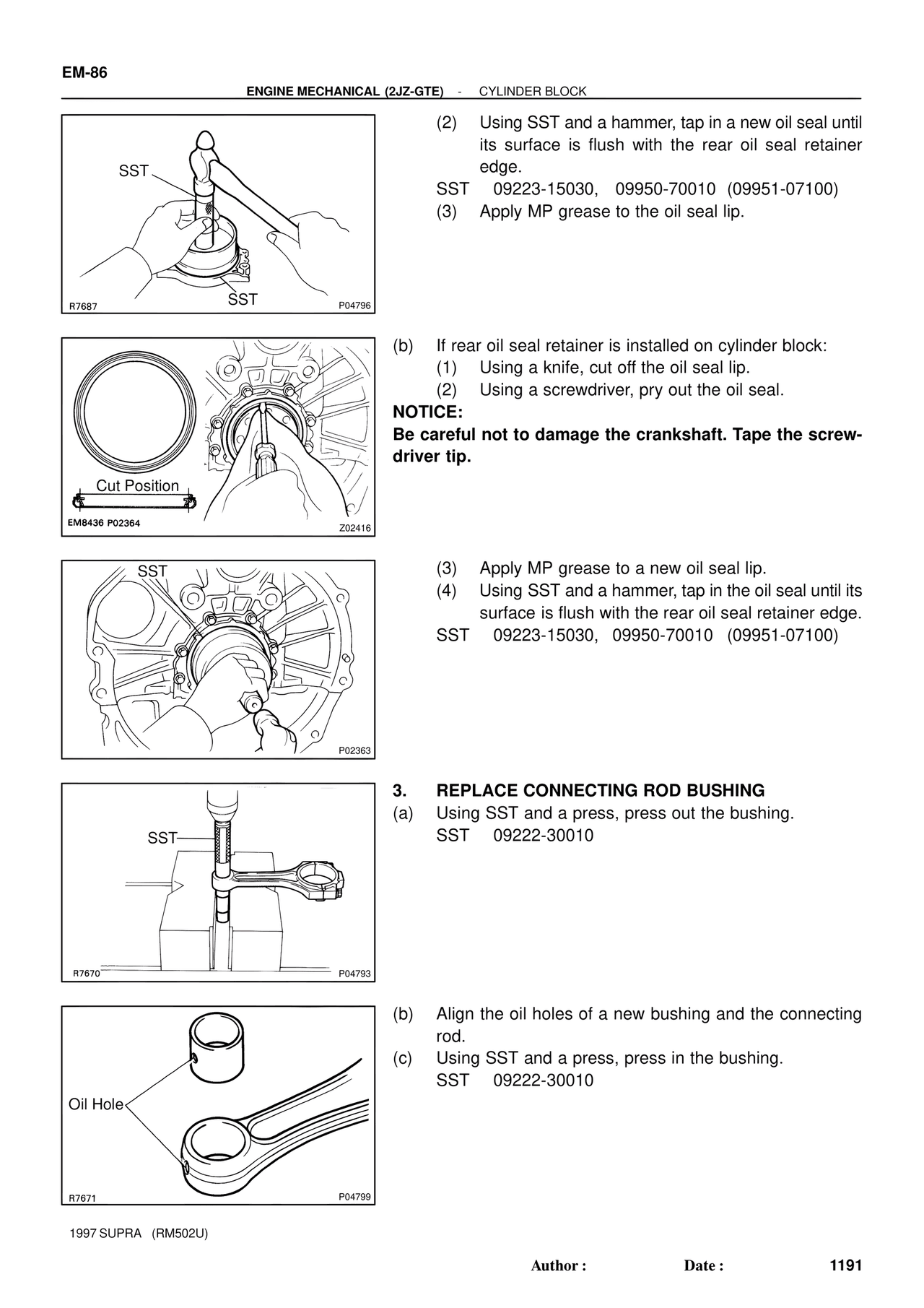

EM-86
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
SST
R7687 SST P04796
(2) Using SST and a hammer, tap in a new oil seal until
its surface is flush with the rear oil seal retainer
edge.
SST 09223-15030, 09950-70010 (09951-07100)
(3) Apply MP grease to the oil seal lip.
Cut Position
EM8436 P02364 Z02416
(b) If rear oil seal retainer is installed on cylinder block:
(1) Using a knife, cut off the oil seal lip.
(2) Using a screwdriver, pry out the oil seal.
NOTICE:
Be careful not to damage the crankshaft. Tape the screw-
driver tip.
SST
P02363
(3) Apply MP grease to a new oil seal lip.
(4) Using SST and a hammer, tap in the oil seal until its
surface is flush with the rear oil seal retainer edge.
SST 09223-15030, 09950-70010 (09951-07100)
3. REPLACE CONNECTING ROD BUSHING
(a) Using SST and a press, press out the bushing.
SST 09222-30010
SST
R7670 P04793
Oil Hole
R7671 P04799
(b) Align the oil holes of a new bushing and the connecting
rod.
(c) Using SST and a press, press in the bushing.
SST 09222-30010
1997 SUPRA (RM502U)
Author : Date : 1191
