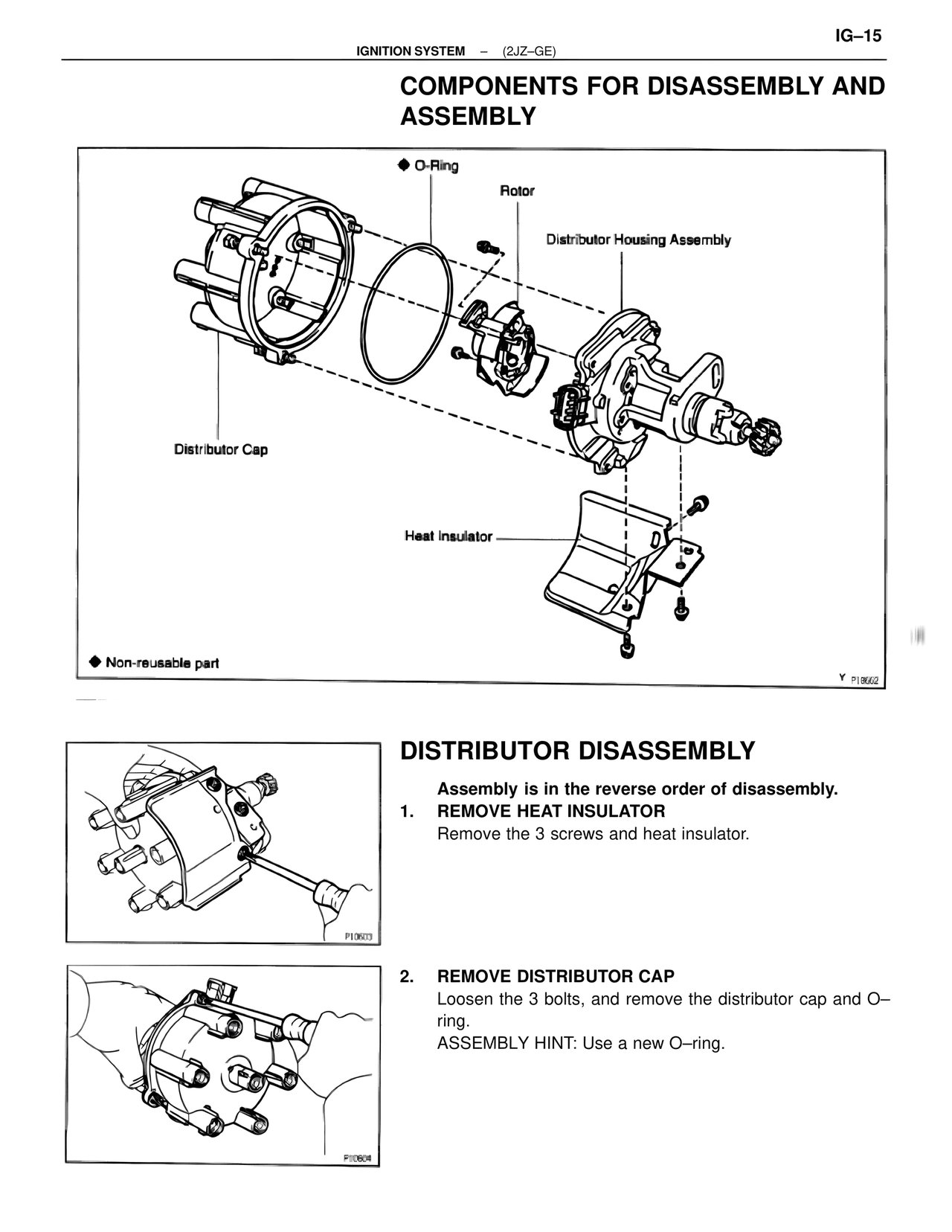

IG–15 IGNITION SYSTEM – (2JZ–GE) COMPONENTS FOR DISASSEMBLY AND ASSEMBLY ♦ O-Ring Rotor Distributor Housing Assembly Distributor Cap Heat Insulator ♦ Non-reusable part Y P19662 P10603 DISTRIBUTOR DISASSEMBLY Assembly is in the reverse order of disassembly. 1. REMOVE HEAT INSULATOR Remove the 3 screws and heat insulator. P10604 2. REMOVE DISTRIBUTOR CAP Loosen the 3 bolts, and remove the distributor cap and O–ring. ASSEMBLY HINT: Use a new O–ring.
