EG–368

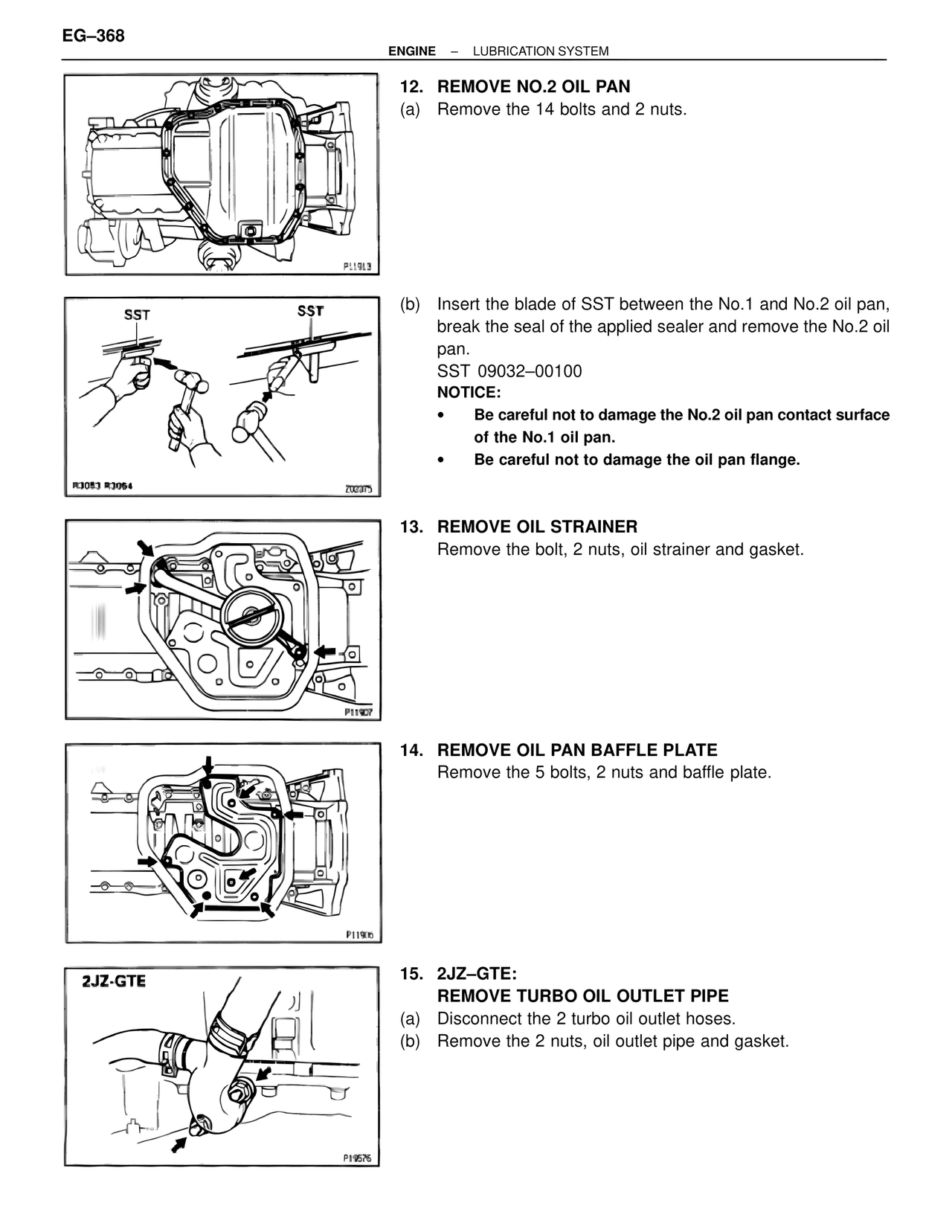

ENGINE – LUBRICATION SYSTEM
12. REMOVE NO.2 OIL PAN
(a) Remove the 14 bolts and 2 nuts.
(b) Insert the blade of SST between the No.1 and No.2 oil pan,
break the seal of the applied sealer and remove the No.2 oil
pan.
SST 09032–00100
NOTICE:
• Be careful not to damage the No.2 oil pan contact surface
of the No.1 oil pan.
• Be careful not to damage the oil pan flange.
13. REMOVE OIL STRAINER
Remove the bolt, 2 nuts, oil strainer and gasket.
14. REMOVE OIL PAN BAFFLE PLATE
Remove the 5 bolts, 2 nuts and baffle plate.
15. 2JZ–GTE:
REMOVE TURBO OIL OUTLET PIPE
(a) Disconnect the 2 turbo oil outlet hoses.
(b) Remove the 2 nuts, oil outlet pipe and gasket.
