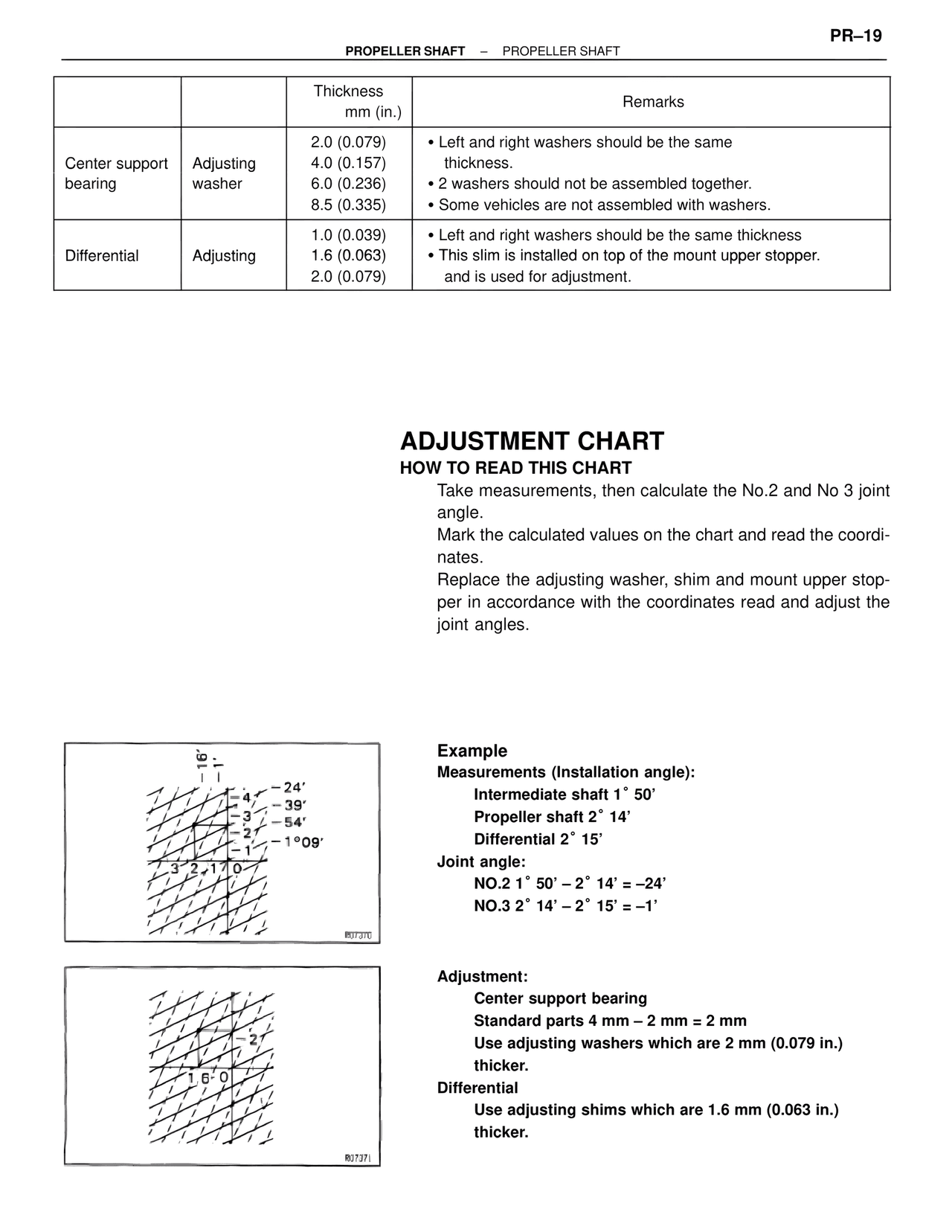

PR–19
PROPELLER SHAFT – PROPELLER SHAFT
Thickness mm (in.) | Remarks
Center support bearing | Adjusting washer | 2.0 (0.079)
4.0 (0.157)
6.0 (0.236)
8.5 (0.335) | • Left and right washers should be the same thickness.
• 2 washers should not be assembled together.
• Some vehicles are not assembled with washers.
Differential | Adjusting | 1.0 (0.039)
1.6 (0.063)
2.0 (0.079) | • Left and right washers should be the same thickness
• This slim is installed on top of the mount upper stopper. and is used for adjustment.
ADJUSTMENT CHART
HOW TO READ THIS CHART
Take measurements, then calculate the No.2 and No 3 joint angle.
Mark the calculated values on the chart and read the coordinates.
Replace the adjusting washer, shim and mount upper stopper in accordance with the coordinates read and adjust the joint angles.
Example
Measurements (Installation angle):
Intermediate shaft 1° 50'
Propeller shaft 2° 14'
Differential 2° 15'
Joint angle:
NO.2 1° 50' – 2° 14' = –24'
NO.3 2° 14' – 2° 15' = –1'
Adjustment:
Center support bearing
Standard parts 4 mm – 2 mm = 2 mm
Use adjusting washers which are 2 mm (0.079 in.) thicker.
Differential
Use adjusting shims which are 1.6 mm (0.063 in.) thicker.
