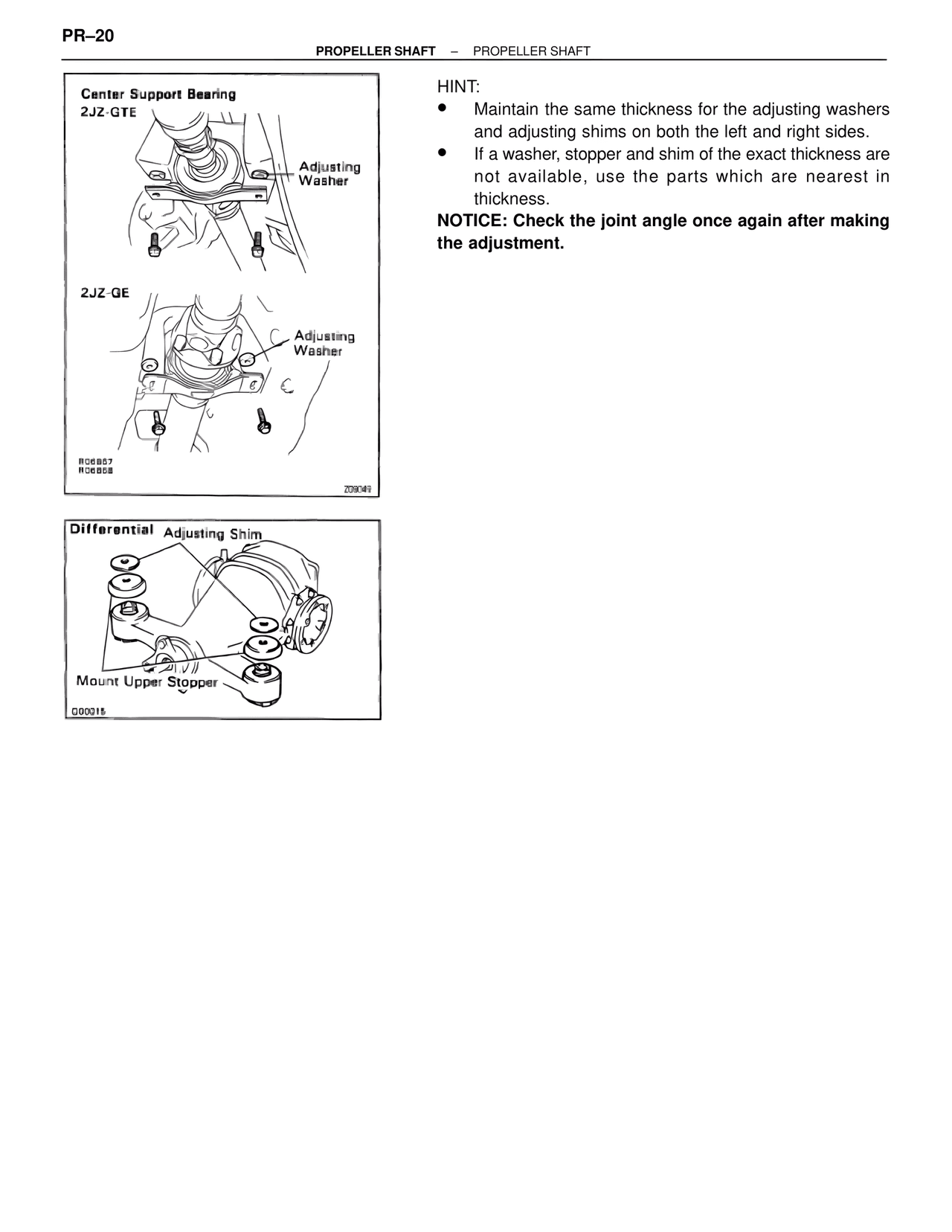

PR–20 PROPELLER SHAFT – PROPELLER SHAFT Center Support Bearing 2JZ-GTE Adjusting Washer R06857 R06858 2JZ-GE Adjusting Washer Z09349 Differential Adjusting Shim Mount Upper Stopper G00015 HINT: • Maintain the same thickness for the adjusting washers and adjusting shims on both the left and right sides. • If a washer, stopper and shim of the exact thickness are not available, use the parts which are nearest in thickness. NOTICE: Check the joint angle once again after making the adjustment.
