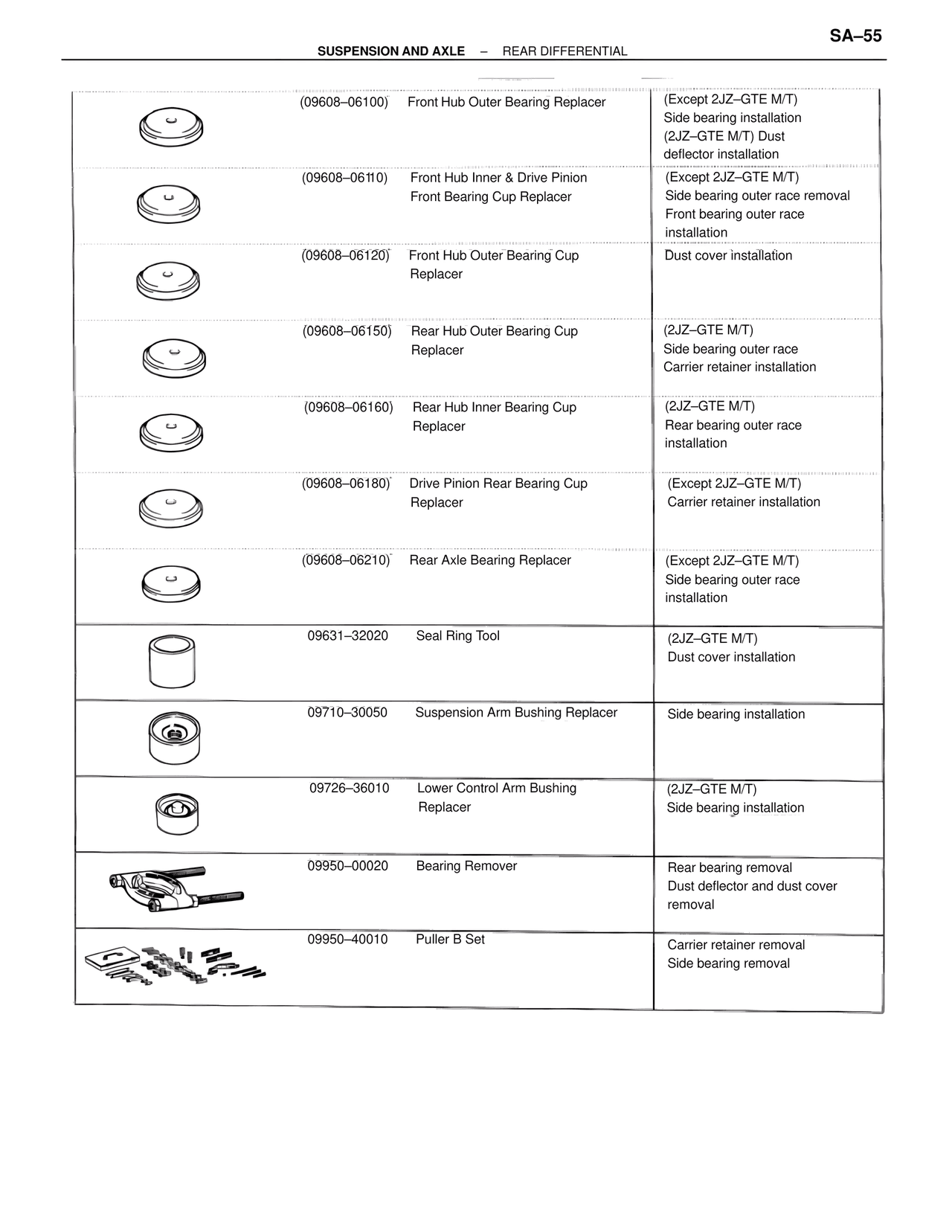

SA–55
SUSPENSION AND AXLE – REAR DIFFERENTIAL
(09608–06100) Front Hub Outer Bearing Replacer (Except 2JZ–GTE M/T)
Side bearing installation
(2JZ–GTE M/T) Dust
deflector installation
(09608–06110) Front Hub Inner & Drive Pinion
Front Bearing Cup Replacer (Except 2JZ–GTE M/T)
Side bearing outer race removal
Front bearing outer race
installation
(09608–06120) Front Hub Outer Bearing Cup
Replacer Dust cover installation
(09608–06150) Rear Hub Outer Bearing Cup
Replacer (2JZ–GTE M/T)
Side bearing outer race
Carrier retainer installation
(09608–06160) Rear Hub Inner Bearing Cup
Replacer (2JZ–GTE M/T)
Rear bearing outer race
installation
(09608–06180) Drive Pinion Rear Bearing Cup
Replacer (Except 2JZ–GTE M/T)
Carrier retainer installation
(09608–06210) Rear Axle Bearing Replacer (Except 2JZ–GTE M/T)
Side bearing outer race
installation
09631–32020 Seal Ring Tool (2JZ–GTE M/T)
Dust cover installation
09710–30050 Suspension Arm Bushing Replacer Side bearing installation
09726–36010 Lower Control Arm Bushing
Replacer (2JZ–GTE M/T)
Side bearing installation
09950–00020 Bearing Remover Rear bearing removal
Dust deflector and dust cover
removal
09950–40010 Puller B Set Carrier retainer removal
Side bearing removal
