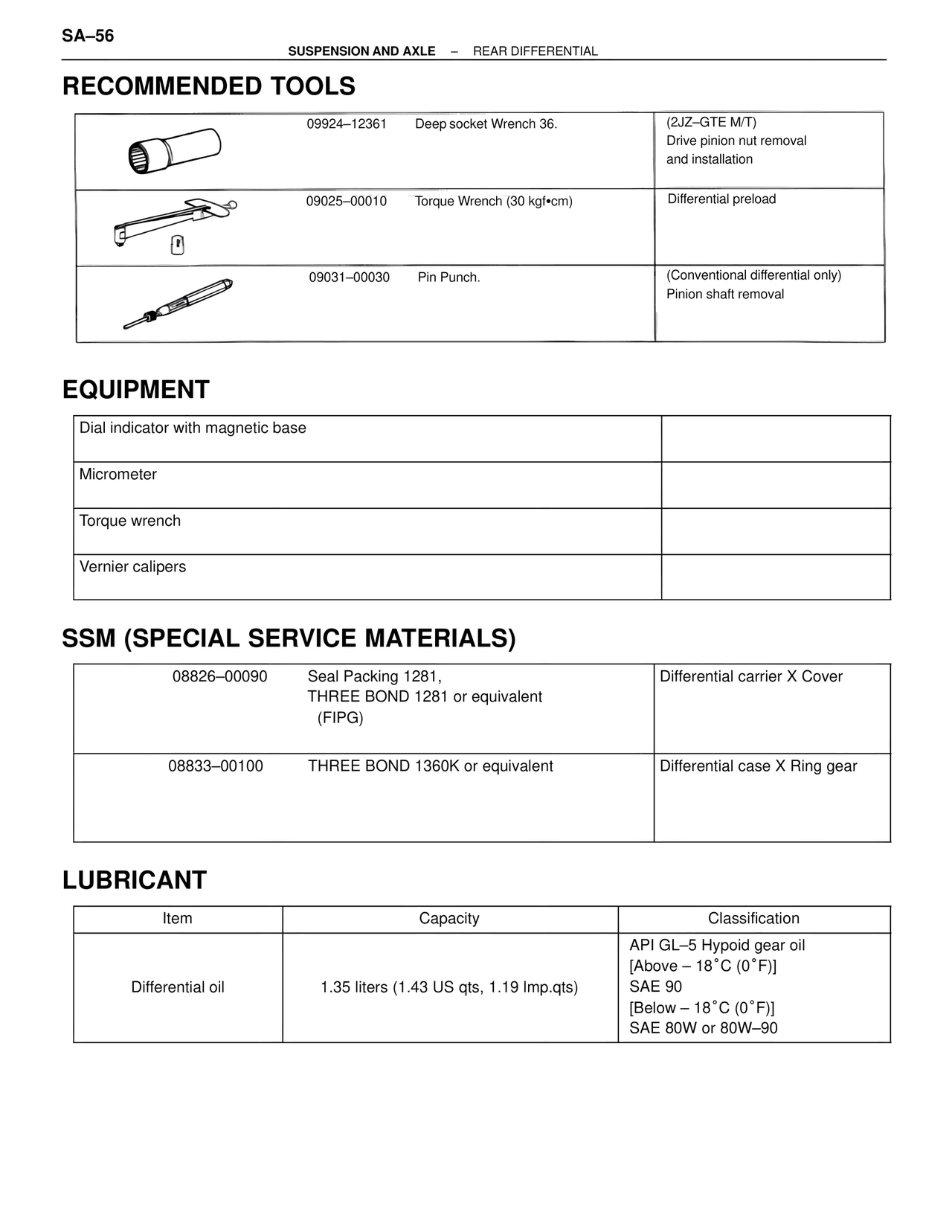

SA–56
SUSPENSION AND AXLE – REAR DIFFERENTIAL
RECOMMENDED TOOLS
09924–12361 Deep socket Wrench 36. (2JZ–GTE M/T)
Drive pinion nut removal
and installation
09025–00010 Torque Wrench (30 kgf•cm) Differential preload
09031–00030 Pin Punch. (Conventional differential only)
Pinion shaft removal
EQUIPMENT
Dial indicator with magnetic base
Micrometer
Torque wrench
Vernier calipers
SSM (SPECIAL SERVICE MATERIALS)
08826–00090 Seal Packing 1281,
THREE BOND 1281 or equivalent
(FIPG) Differential carrier X Cover
08833–00100 THREE BOND 1360K or equivalent Differential case X Ring gear
LUBRICANT
Item Capacity Classification
Differential oil 1.35 liters (1.43 US qts, 1.19 Imp.qts) API GL–5 Hypoid gear oil
[Above – 18°C (0°F)]
SAE 90
[Below – 18°C (0°F)]
SAE 80W or 80W–90
