SA–6
SUSPENSION AND AXLE  –  WHEEL ALIGNMENT

A : Inside
B : Outside
Front
A  B          B  A
SA0028

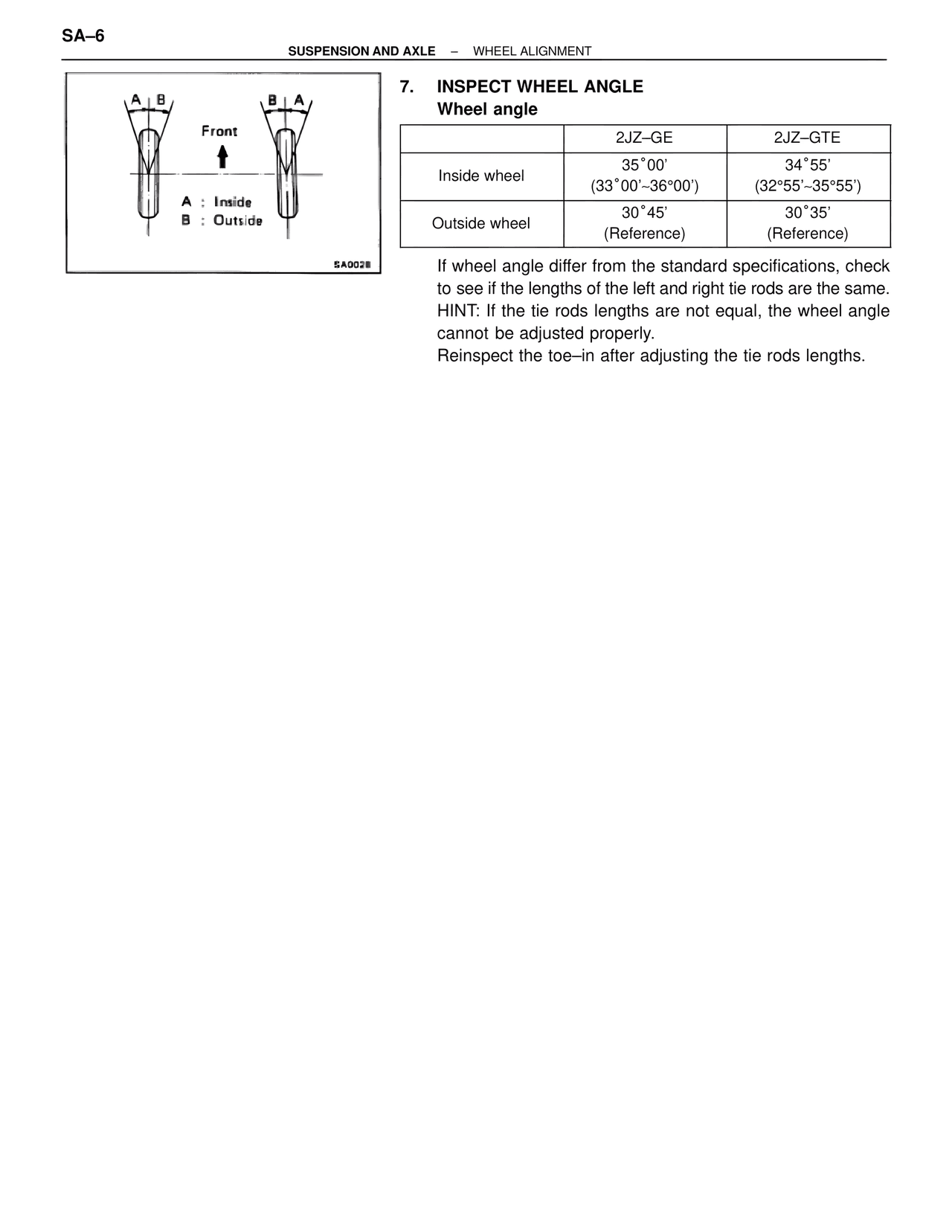

7.  INSPECT WHEEL ANGLE
Wheel angle

                    2JZ–GE              2JZ–GTE
Inside wheel    35°00'              34°55'
                (33°00'–36°00')    (32°55'–35°55')
Outside wheel   30°45'              30°35'
                (Reference)         (Reference)

If wheel angle differ from the standard specifications, check
to see if the lengths of the left and right tie rods are the same.
HINT: If the tie rods lengths are not equal, the wheel angle
cannot be adjusted properly.
Reinspect the toe–in after adjusting the tie rods lengths.
