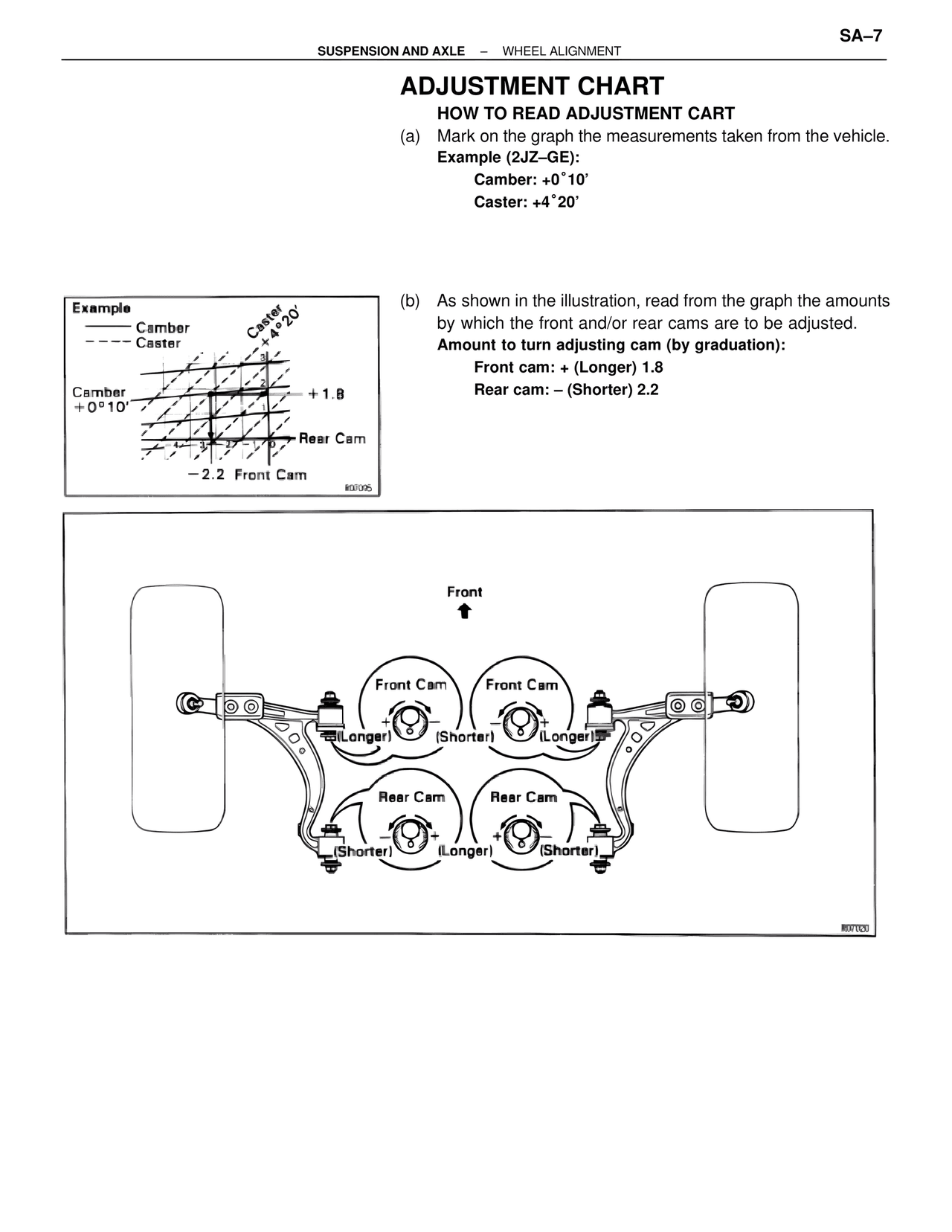

SA–7
SUSPENSION AND AXLE – WHEEL ALIGNMENT
ADJUSTMENT CHART
HOW TO READ ADJUSTMENT CART
(a) Mark on the graph the measurements taken from the vehicle.
Example (2JZ–GE):
Camber: +0˚10'
Caster: +4˚20'
Example
—— Camber
- - - - Caster
Caster +4°20'
Camber +0°10'
+1.8
Rear Cam
−2.2 Front Cam
R07095
(b) As shown in the illustration, read from the graph the amounts by which the front and/or rear cams are to be adjusted.
Amount to turn adjusting cam (by graduation):
Front cam: + (Longer) 1.8
Rear cam: – (Shorter) 2.2
Front
↑
Front Cam Front Cam
+ +
(Longer) (Shorter) (Longer)
Rear Cam Rear Cam
+ +
(Shorter) (Longer) (Shorter)
R07020
