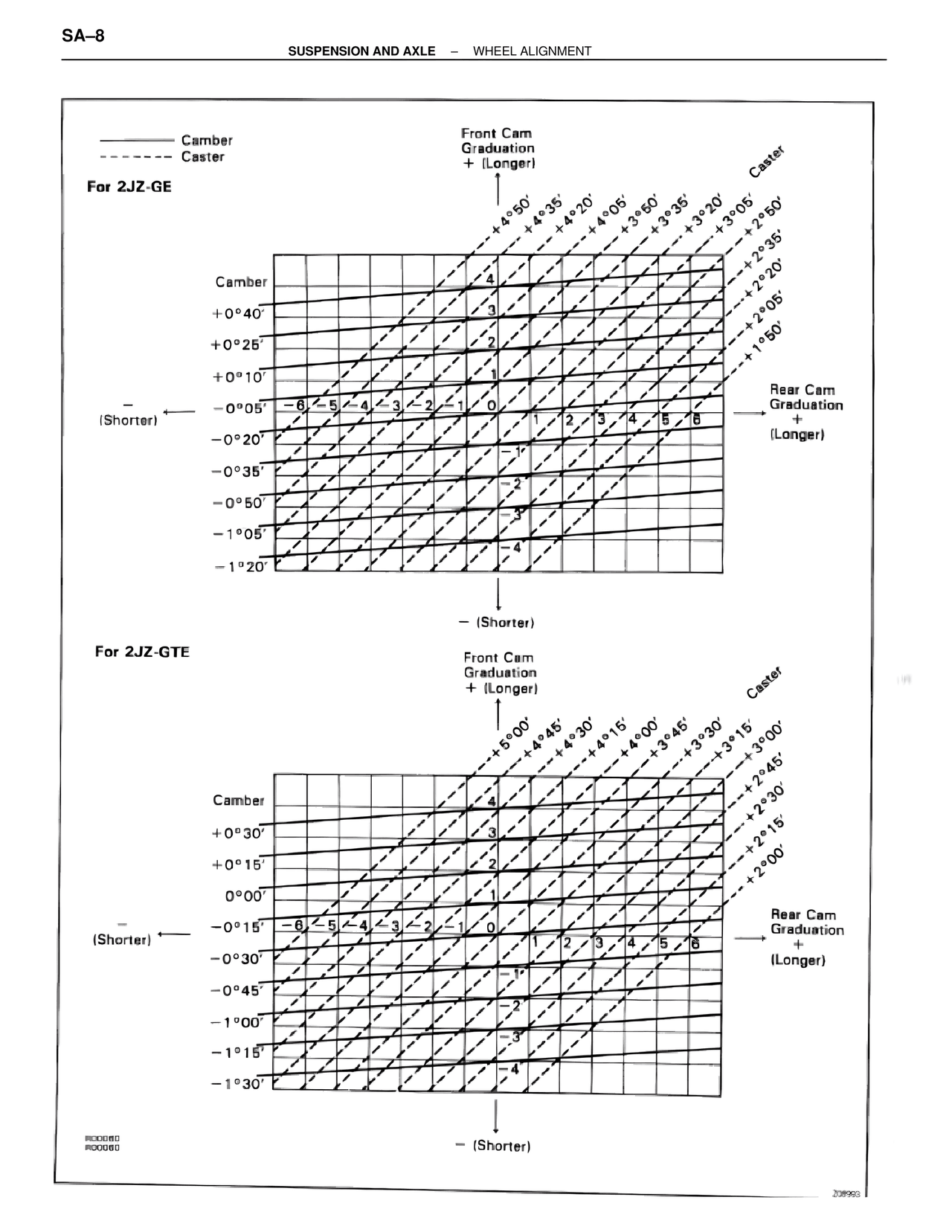

SUSPENSION AND AXLE – WHEEL ALIGNMENT

——— Camber
------- Caster

For 2JZ-GE

Front Cam
Graduation
+ (Longer)

Caster
+4°50' +4°35' +4°20' +4°05' +3°50' +3°35' +3°20' +3°05' +2°50'
+2°35'
+2°20'
+2°05'
+1°50'

Camber
+0°40'
+0°25'
+0°10'
–0°05'
–0°20'
–0°35'
–0°50'
–1°05'
–1°20'

– (Shorter) ←

4
3
2
1
0
-1
-2
-3
-4

–6 –5 –4 –3 –2 –1  0  1  2  3  4  5  6

Rear Cam
Graduation
+
(Longer)

– (Shorter)

For 2JZ-GTE

Front Cam
Graduation
+ (Longer)

Caster
+5°00' +4°45' +4°30' +4°15' +4°00' +3°45' +3°30' +3°15' +3°00'
+2°45'
+2°30'
+2°15'
+2°00'

Camber
+0°30'
+0°15'
0°00'
–0°15'
–0°30'
–0°45'
–1°00'
–1°15'
–1°30'

– (Shorter) ←

4
3
2
1
0
-1
-2
-3
-4

–6 –5 –4 –3 –2 –1  0  1  2  3  4  5  6

Rear Cam
Graduation
+
(Longer)

– (Shorter)
