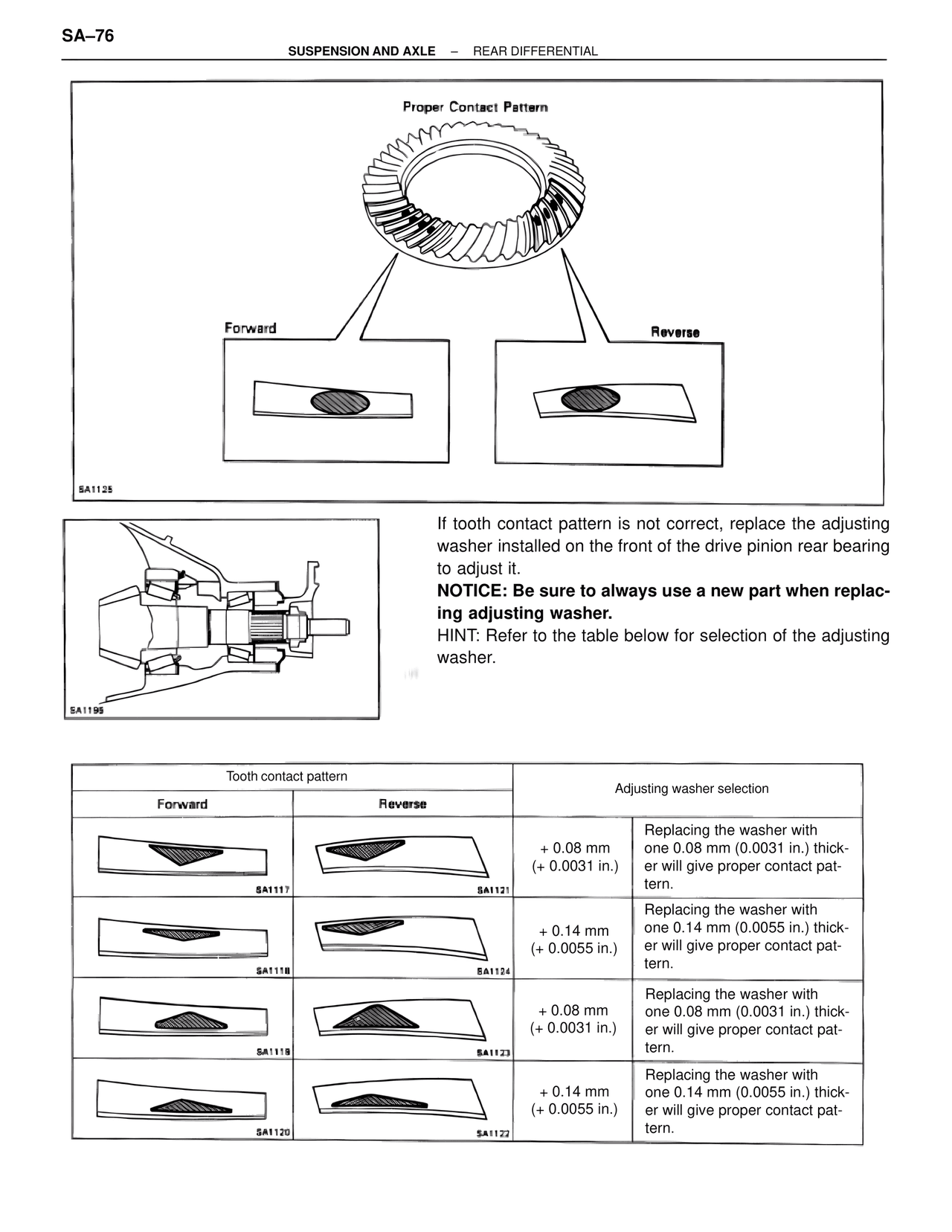

SA–76
SUSPENSION AND AXLE – REAR DIFFERENTIAL
Proper Contact Pattern
Forward Reverse
SA1125
If tooth contact pattern is not correct, replace the adjusting
washer installed on the front of the drive pinion rear bearing
to adjust it.
NOTICE: Be sure to always use a new part when replac-
ing adjusting washer.
HINT: Refer to the table below for selection of the adjusting
washer.
SA1195
Tooth contact pattern Adjusting washer selection
Forward Reverse
SA1117 SA1121
+ 0.08 mm
(+ 0.0031 in.) Replacing the washer with
one 0.08 mm (0.0031 in.) thick-
er will give proper contact pat-
tern.
SA1118 SA1124
+ 0.14 mm
(+ 0.0055 in.) Replacing the washer with
one 0.14 mm (0.0055 in.) thick-
er will give proper contact pat-
tern.
SA1119 SA1123
+ 0.08 mm
(+ 0.0031 in.) Replacing the washer with
one 0.08 mm (0.0031 in.) thick-
er will give proper contact pat-
tern.
SA1120 SA1122
+ 0.14 mm
(+ 0.0055 in.) Replacing the washer with
one 0.14 mm (0.0055 in.) thick-
er will give proper contact pat-
tern.
