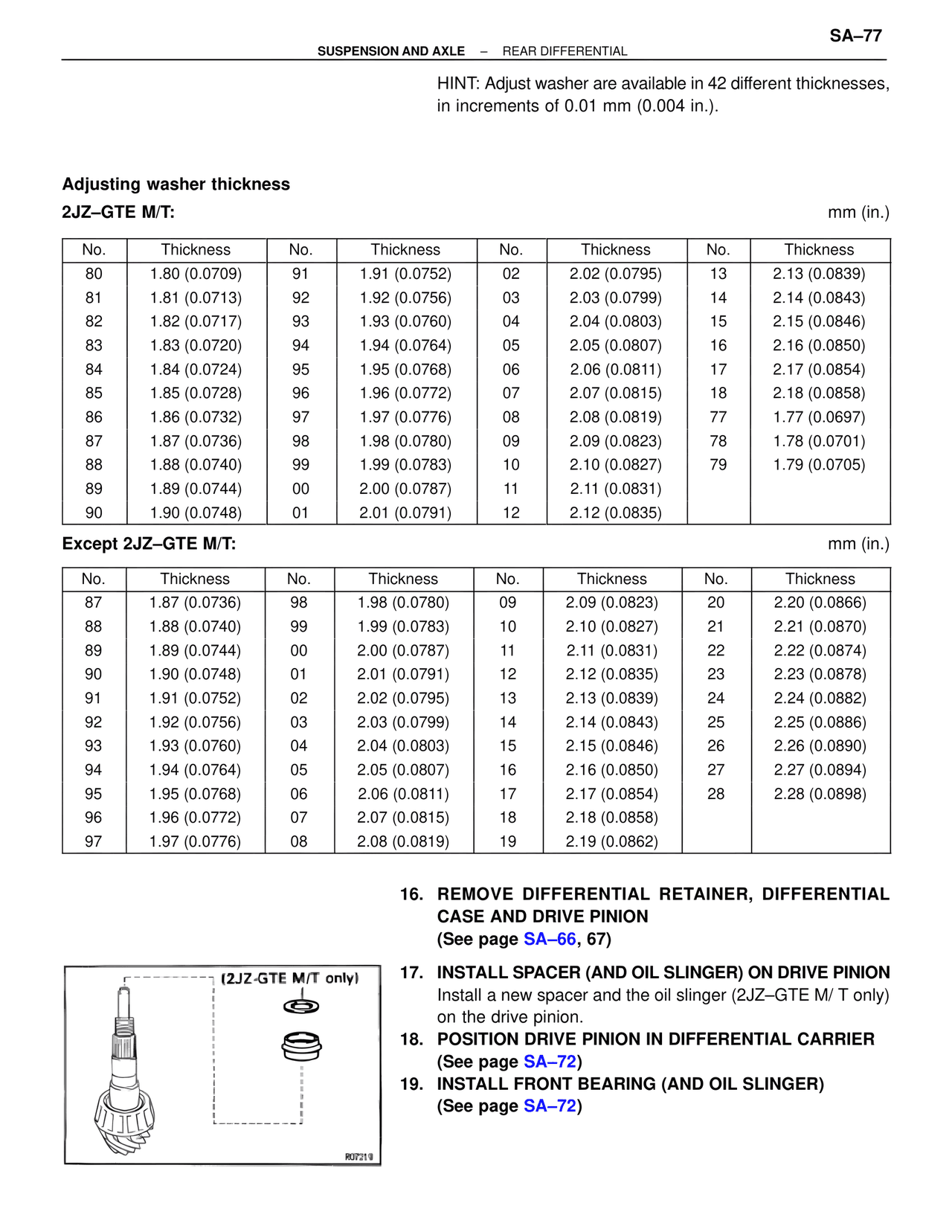

SA–77
SUSPENSION AND AXLE – REAR DIFFERENTIAL
HINT: Adjust washer are available in 42 different thicknesses,
in increments of 0.01 mm (0.004 in.).
Adjusting washer thickness
2JZ–GTE M/T:
mm (in.)
No. Thickness No. Thickness No. Thickness No. Thickness
80 1.80 (0.0709) 91 1.91 (0.0752) 02 2.02 (0.0795) 13 2.13 (0.0839)
81 1.81 (0.0713) 92 1.92 (0.0756) 03 2.03 (0.0799) 14 2.14 (0.0843)
82 1.82 (0.0717) 93 1.93 (0.0760) 04 2.04 (0.0803) 15 2.15 (0.0846)
83 1.83 (0.0720) 94 1.94 (0.0764) 05 2.05 (0.0807) 16 2.16 (0.0850)
84 1.84 (0.0724) 95 1.95 (0.0768) 06 2.06 (0.0811) 17 2.17 (0.0854)
85 1.85 (0.0728) 96 1.96 (0.0772) 07 2.07 (0.0815) 18 2.18 (0.0858)
86 1.86 (0.0732) 97 1.97 (0.0776) 08 2.08 (0.0819) 77 1.77 (0.0697)
87 1.87 (0.0736) 98 1.98 (0.0780) 09 2.09 (0.0823) 78 1.78 (0.0701)
88 1.88 (0.0740) 99 1.99 (0.0783) 10 2.10 (0.0827) 79 1.79 (0.0705)
89 1.89 (0.0744) 00 2.00 (0.0787) 11 2.11 (0.0831)
90 1.90 (0.0748) 01 2.01 (0.0791) 12 2.12 (0.0835)
Except 2JZ–GTE M/T:
mm (in.)
No. Thickness No. Thickness No. Thickness No. Thickness
87 1.87 (0.0736) 98 1.98 (0.0780) 09 2.09 (0.0823) 20 2.20 (0.0866)
88 1.88 (0.0740) 99 1.99 (0.0783) 10 2.10 (0.0827) 21 2.21 (0.0870)
89 1.89 (0.0744) 00 2.00 (0.0787) 11 2.11 (0.0831) 22 2.22 (0.0874)
90 1.90 (0.0748) 01 2.01 (0.0791) 12 2.12 (0.0835) 23 2.23 (0.0878)
91 1.91 (0.0752) 02 2.02 (0.0795) 13 2.13 (0.0839) 24 2.24 (0.0882)
92 1.92 (0.0756) 03 2.03 (0.0799) 14 2.14 (0.0843) 25 2.25 (0.0886)
93 1.93 (0.0760) 04 2.04 (0.0803) 15 2.15 (0.0846) 26 2.26 (0.0890)
94 1.94 (0.0764) 05 2.05 (0.0807) 16 2.16 (0.0850) 27 2.27 (0.0894)
95 1.95 (0.0768) 06 2.06 (0.0811) 17 2.17 (0.0854) 28 2.28 (0.0898)
96 1.96 (0.0772) 07 2.07 (0.0815) 18 2.18 (0.0858)
97 1.97 (0.0776) 08 2.08 (0.0819) 19 2.19 (0.0862)
16. REMOVE DIFFERENTIAL RETAINER, DIFFERENTIAL
CASE AND DRIVE PINION
(See page SA–66, 67)
(2JZ-GTE M/T only)
17. INSTALL SPACER (AND OIL SLINGER) ON DRIVE PINION
Install a new spacer and the oil slinger (2JZ–GTE M/T only)
on the drive pinion.
18. POSITION DRIVE PINION IN DIFFERENTIAL CARRIER
(See page SA–72)
19. INSTALL FRONT BEARING (AND OIL SLINGER)
(See page SA–72)
R07319
