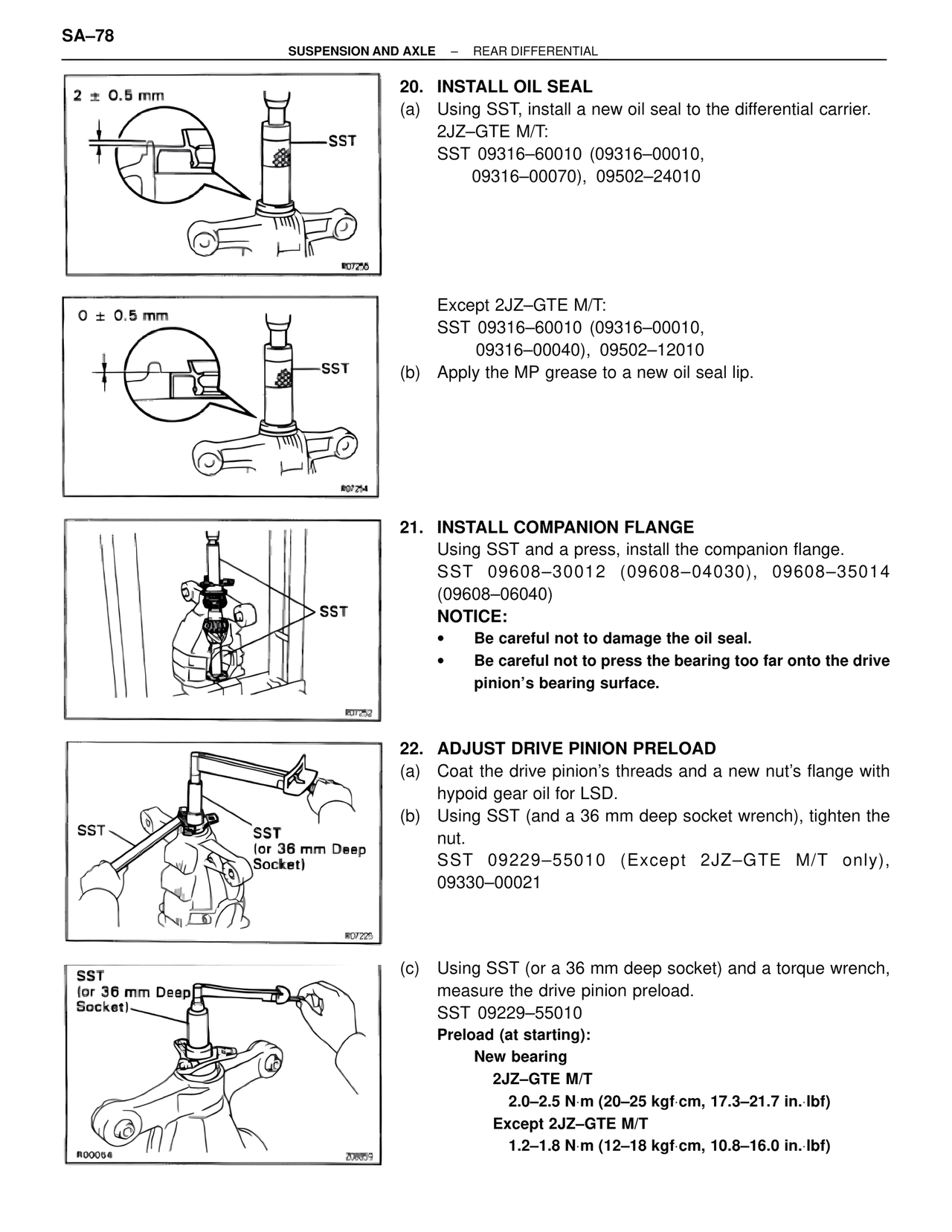

SA–78
SUSPENSION AND AXLE – REAR DIFFERENTIAL
2 ± 0.5 mm
SST
R07255
20. INSTALL OIL SEAL
(a) Using SST, install a new oil seal to the differential carrier.
2JZ–GTE M/T:
SST 09316–60010 (09316–00010,
09316–00070), 09502–24010
0 ± 0.5 mm
SST
R07254
Except 2JZ–GTE M/T:
SST 09316–60010 (09316–00010,
09316–00040), 09502–12010
(b) Apply the MP grease to a new oil seal lip.
SST
R07252
21. INSTALL COMPANION FLANGE
Using SST and a press, install the companion flange.
SST 09608–30012 (09608–04030), 09608–35014
(09608–06040)
NOTICE:
• Be careful not to damage the oil seal.
• Be careful not to press the bearing too far onto the drive
pinion's bearing surface.
SST
SST
(or 36 mm Deep
Socket)
R07225
22. ADJUST DRIVE PINION PRELOAD
(a) Coat the drive pinion's threads and a new nut's flange with
hypoid gear oil for LSD.
(b) Using SST (and a 36 mm deep socket wrench), tighten the
nut.
SST 09229–55010 (Except 2JZ–GTE M/T only),
09330–00021
SST
(or 36 mm Deep
Socket)
R00054
Z08859
(c) Using SST (or a 36 mm deep socket) and a torque wrench,
measure the drive pinion preload.
SST 09229–55010
Preload (at starting):
New bearing
2JZ–GTE M/T
2.0–2.5 N·m (20–25 kgf·cm, 17.3–21.7 in.·lbf)
Except 2JZ–GTE M/T
1.2–1.8 N·m (12–18 kgf·cm, 10.8–16.0 in.·lbf)
