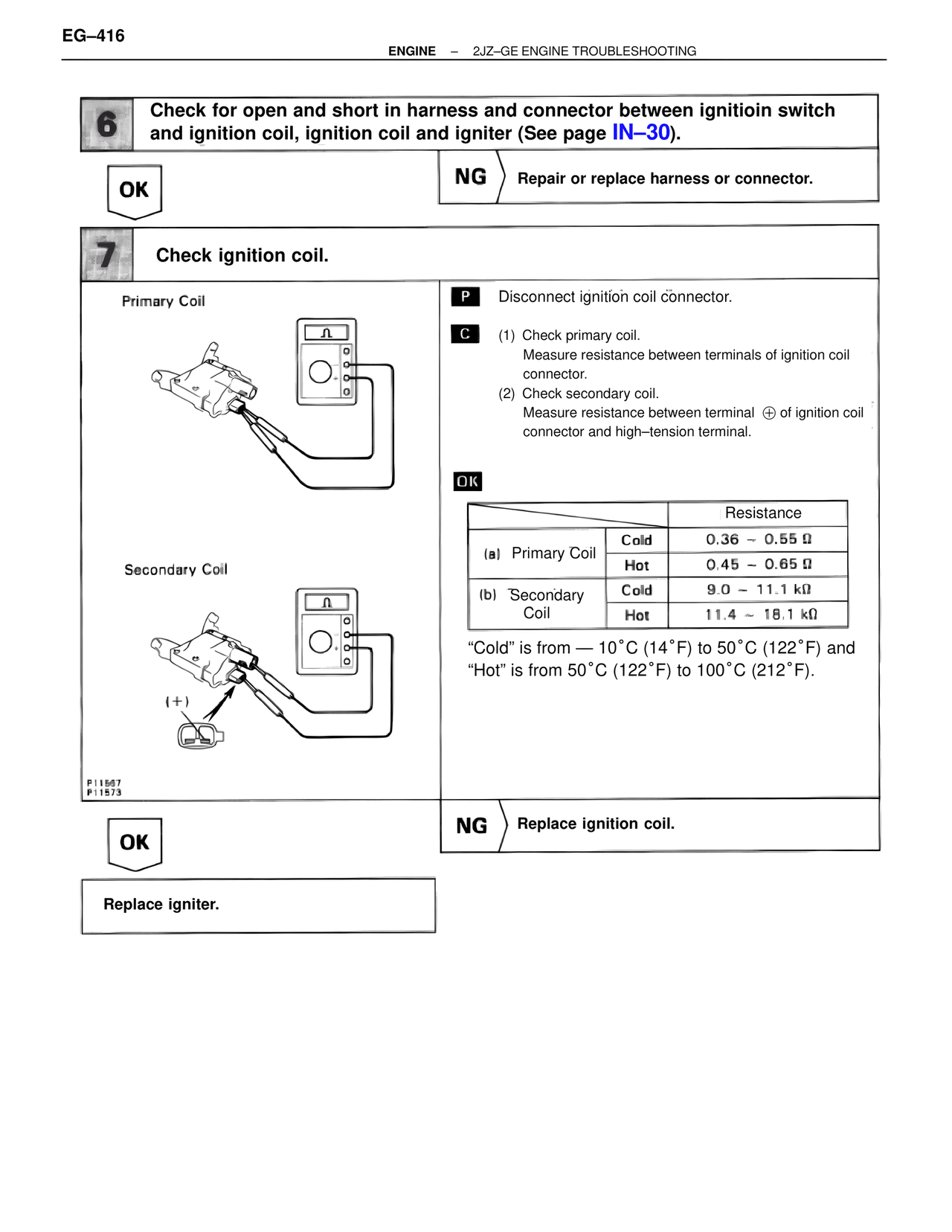

EG–416
ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING
6 Check for open and short in harness and connector between ignitioin switch
and ignition coil, ignition coil and igniter (See page IN–30).
OK
NG Repair or replace harness or connector.
7 Check ignition coil.
Primary Coil
P Disconnect ignition coil connector.
C (1) Check primary coil.
Measure resistance between terminals of ignition coil
connector.
(2) Check secondary coil.
Measure resistance between terminal (+) of ignition coil
connector and high–tension terminal.
OK
Resistance
(a) Primary Coil Cold 0.36 ~ 0.55 Ω
Hot 0.45 ~ 0.65 Ω
(b) Secondary Cold 9.0 ~ 11.1 kΩ
Coil Hot 11.4 ~ 18.1 kΩ
"Cold" is from — 10°C (14°F) to 50°C (122°F) and
"Hot" is from 50°C (122°F) to 100°C (212°F).
Secondary Coil
(+)
P11567
P11573
OK
NG Replace ignition coil.
Replace igniter.
