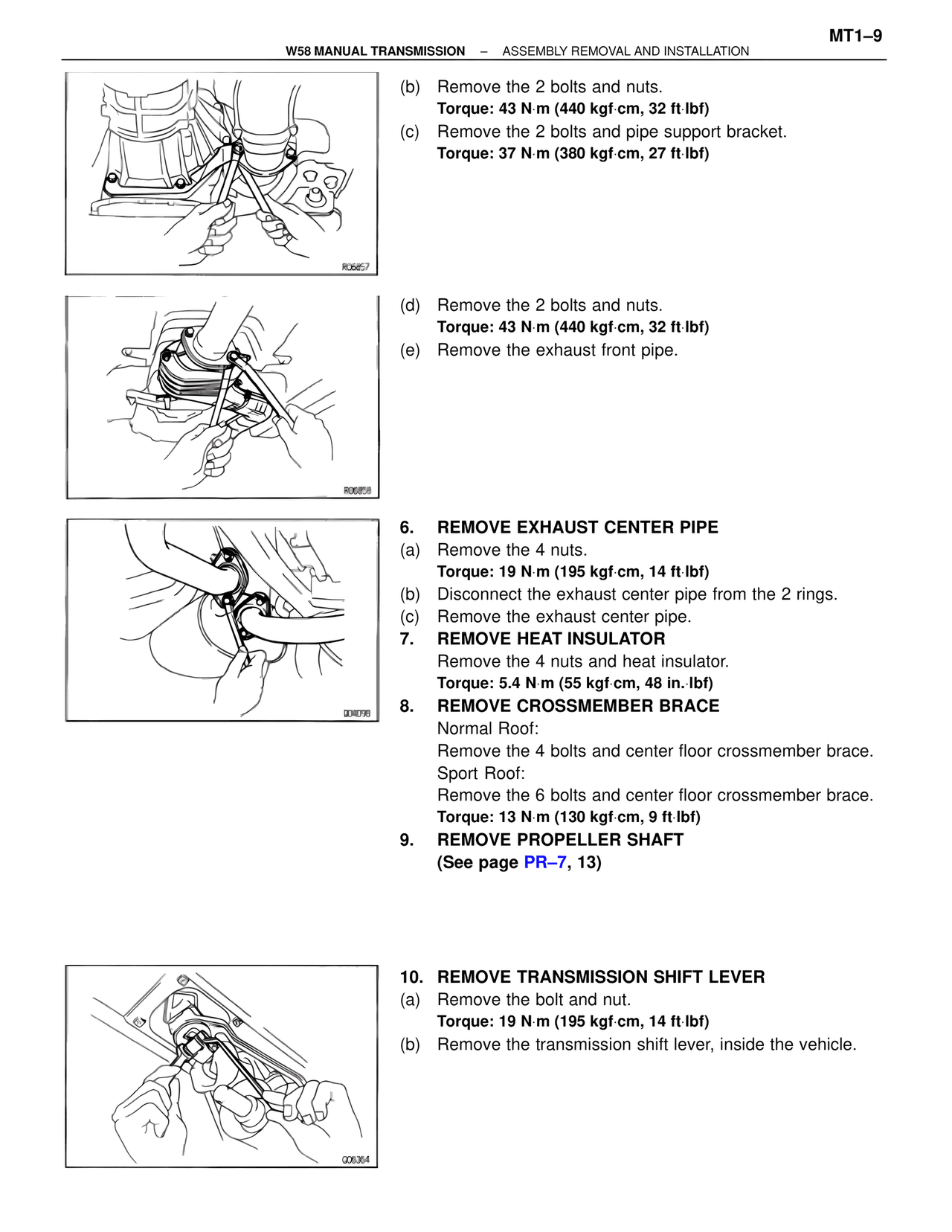

MT1–9
W58 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
(b) Remove the 2 bolts and nuts.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
(c) Remove the 2 bolts and pipe support bracket.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)
R06857
(d) Remove the 2 bolts and nuts.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
(e) Remove the exhaust front pipe.
R06858
6. REMOVE EXHAUST CENTER PIPE
(a) Remove the 4 nuts.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
(b) Disconnect the exhaust center pipe from the 2 rings.
(c) Remove the exhaust center pipe.
7. REMOVE HEAT INSULATOR
Remove the 4 nuts and heat insulator.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
8. REMOVE CROSSMEMBER BRACE
Normal Roof:
Remove the 4 bolts and center floor crossmember brace.
Sport Roof:
Remove the 6 bolts and center floor crossmember brace.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
9. REMOVE PROPELLER SHAFT
(See page PR–7, 13)
004098
10. REMOVE TRANSMISSION SHIFT LEVER
(a) Remove the bolt and nut.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
(b) Remove the transmission shift lever, inside the vehicle.
006364
