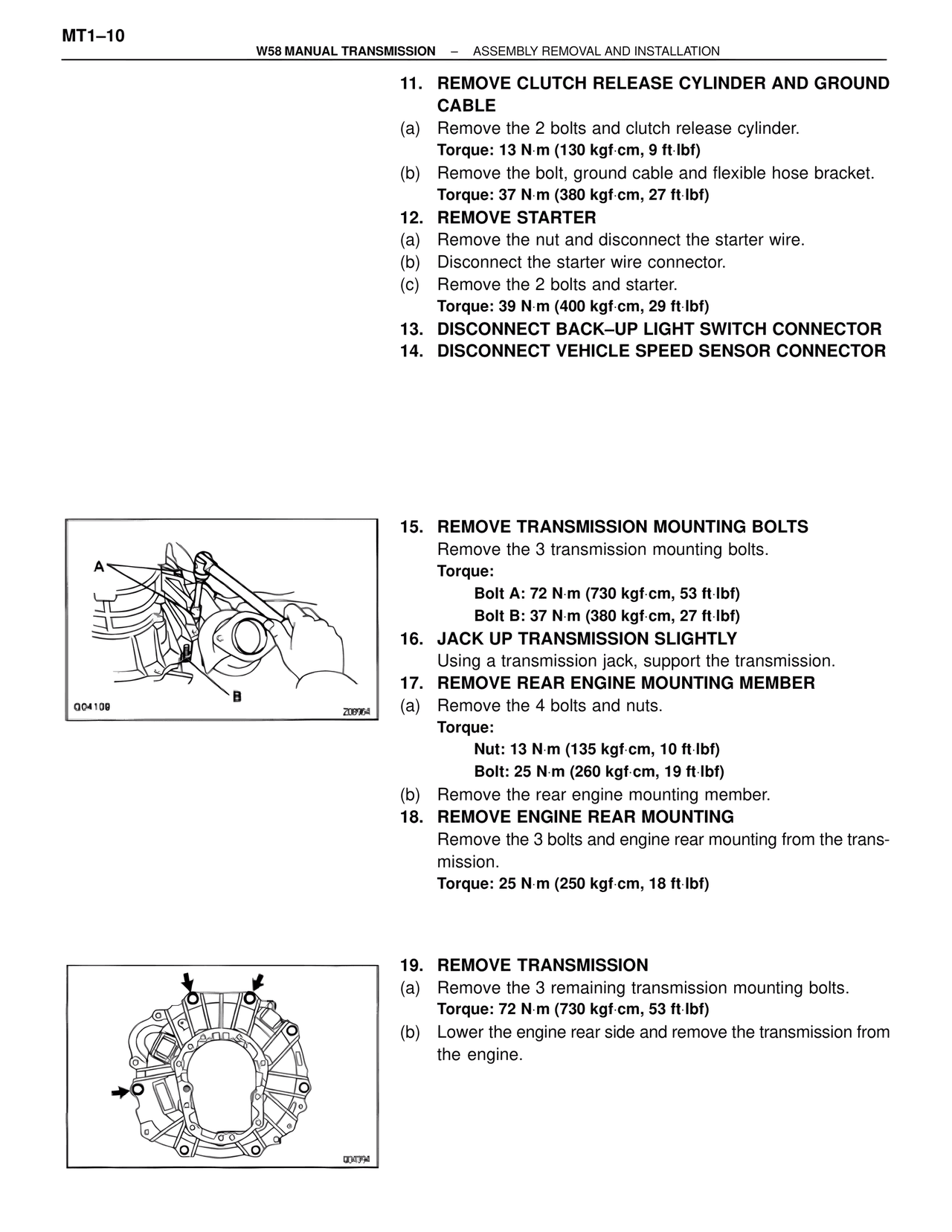

W58 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
11. REMOVE CLUTCH RELEASE CYLINDER AND GROUND CABLE
(a) Remove the 2 bolts and clutch release cylinder.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
(b) Remove the bolt, ground cable and flexible hose bracket.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)
12. REMOVE STARTER
(a) Remove the nut and disconnect the starter wire.
(b) Disconnect the starter wire connector.
(c) Remove the 2 bolts and starter.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
13. DISCONNECT BACK–UP LIGHT SWITCH CONNECTOR
14. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR
G04108 208964
15. REMOVE TRANSMISSION MOUNTING BOLTS
Remove the 3 transmission mounting bolts.
Torque:
Bolt A: 72 N·m (730 kgf·cm, 53 ft·lbf)
Bolt B: 37 N·m (380 kgf·cm, 27 ft·lbf)
16. JACK UP TRANSMISSION SLIGHTLY
Using a transmission jack, support the transmission.
17. REMOVE REAR ENGINE MOUNTING MEMBER
(a) Remove the 4 bolts and nuts.
Torque:
Nut: 13 N·m (135 kgf·cm, 10 ft·lbf)
Bolt: 25 N·m (260 kgf·cm, 19 ft·lbf)
(b) Remove the rear engine mounting member.
18. REMOVE ENGINE REAR MOUNTING
Remove the 3 bolts and engine rear mounting from the transmission.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
G04794
19. REMOVE TRANSMISSION
(a) Remove the 3 remaining transmission mounting bolts.
Torque: 72 N·m (730 kgf·cm, 53 ft·lbf)
(b) Lower the engine rear side and remove the transmission from the engine.
