MT1–11

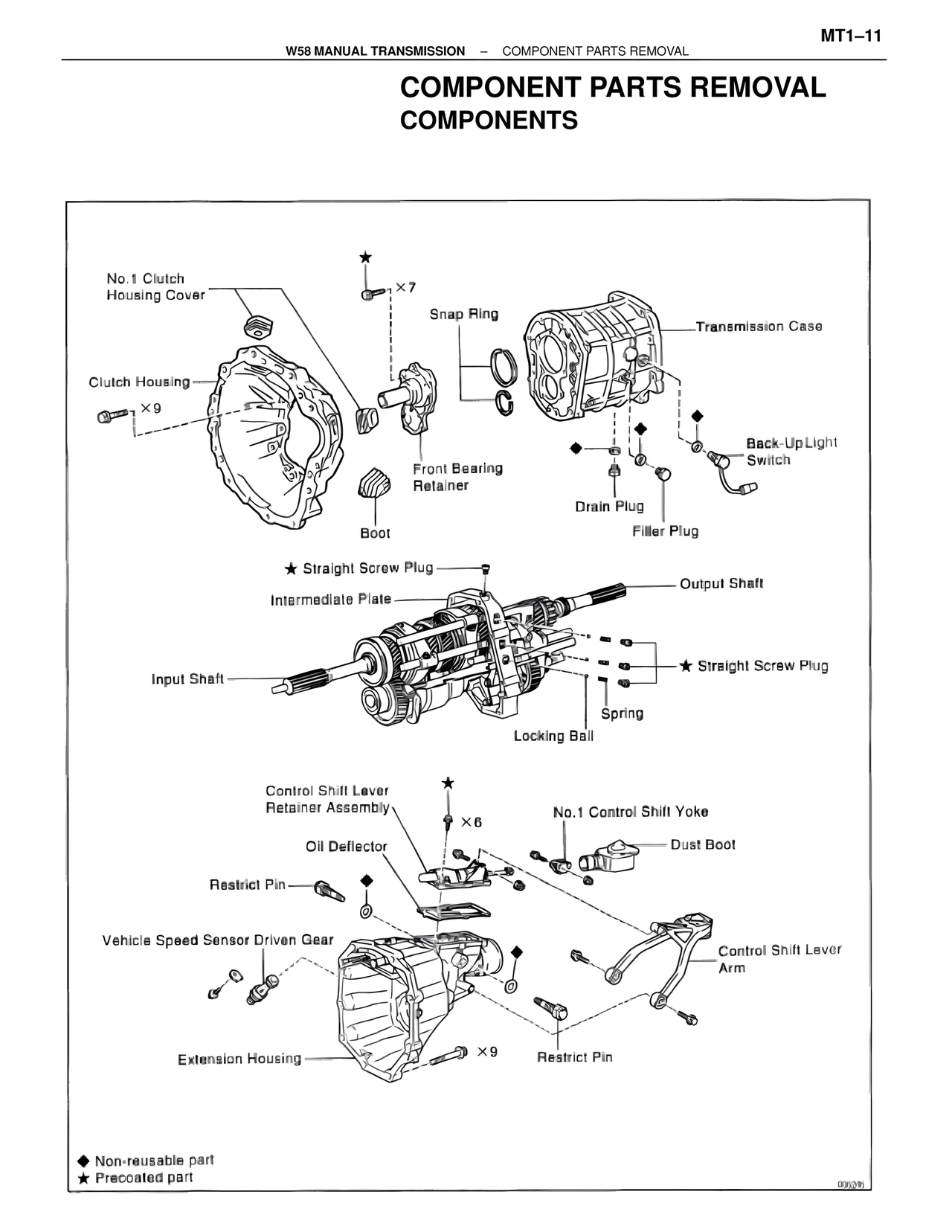

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
COMPONENT PARTS REMOVAL
COMPONENTS
No.1 Clutch
Housing Cover
★ ×7
Snap Ring
Transmission Case
Clutch Housing
◆ ×9
Back-Up Light
Switch
Front Bearing
Retainer
Drain Plug
Boot
Filler Plug
★ Straight Screw Plug
Output Shaft
Intermediate Plate
★ Straight Screw Plug
Input Shaft
Spring
Locking Ball
Control Shift Lever
Retainer Assembly ★
×6
No.1 Control Shift Yoke
Oil Deflector
Dust Boot
Restrict Pin ◆
Control Shift Lever
Arm
Vehicle Speed Sensor Driven Gear
◆
Extension Housing
×9
Restrict Pin
◆ Non-reusable part
★ Precoated part
005245
