MT1–12

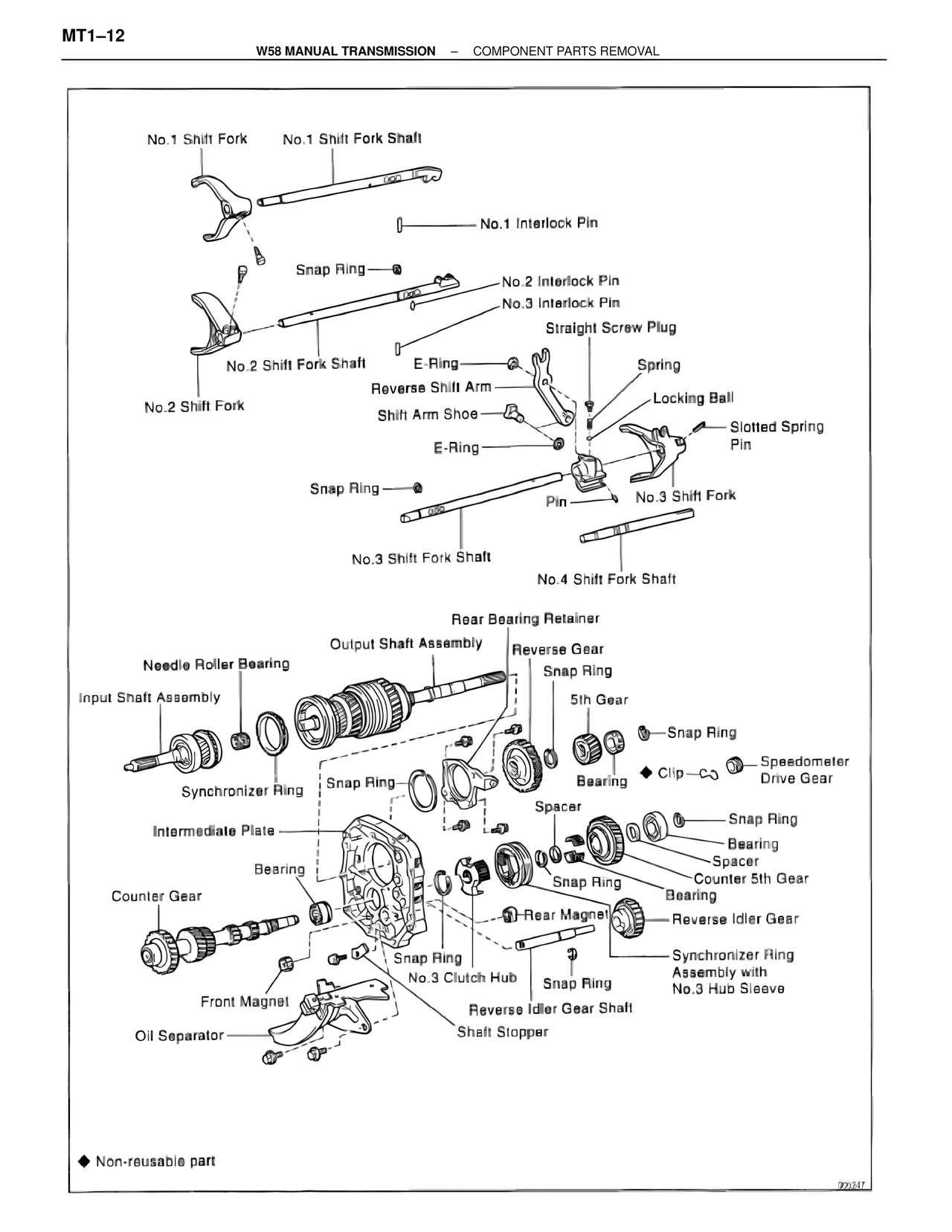

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
No.1 Shift Fork No.1 Shift Fork Shaft
No.1 Interlock Pin
Snap Ring
No.2 Interlock Pin
No.3 Interlock Pin
Straight Screw Plug
No.2 Shift Fork Shaft E-Ring Spring
Reverse Shift Arm Locking Ball
Shift Arm Shoe Slotted Spring Pin
E-Ring
Snap Ring Pin No.3 Shift Fork
No.2 Shift Fork
No.3 Shift Fork Shaft
No.4 Shift Fork Shaft
Rear Bearing Retainer
Output Shaft Assembly Reverse Gear
Needle Roller Bearing Snap Ring
Input shaft Assembly 5th Gear
Snap Ring — Snap Ring
Bearing ◆ Clip Speedometer Drive Gear
Synchronizer Ring
Snap Ring
Intermediate Plate Snap Ring Bearing
Spacer
Bearing Snap Ring Spacer
Counter 5th Gear
Snap Ring Bearing
Counter Gear Rear Magnet Reverse Idler Gear
Synchronizer Ring Assembly with No.3 Hub Sleeve
Snap Ring
No.3 Clutch Hub Snap Ring
Front Magnet Reverse Idler Gear Shaft
Shaft Stopper
Oil Separator
Spacer
◆ Non-reusable part
909247
