MT1-41

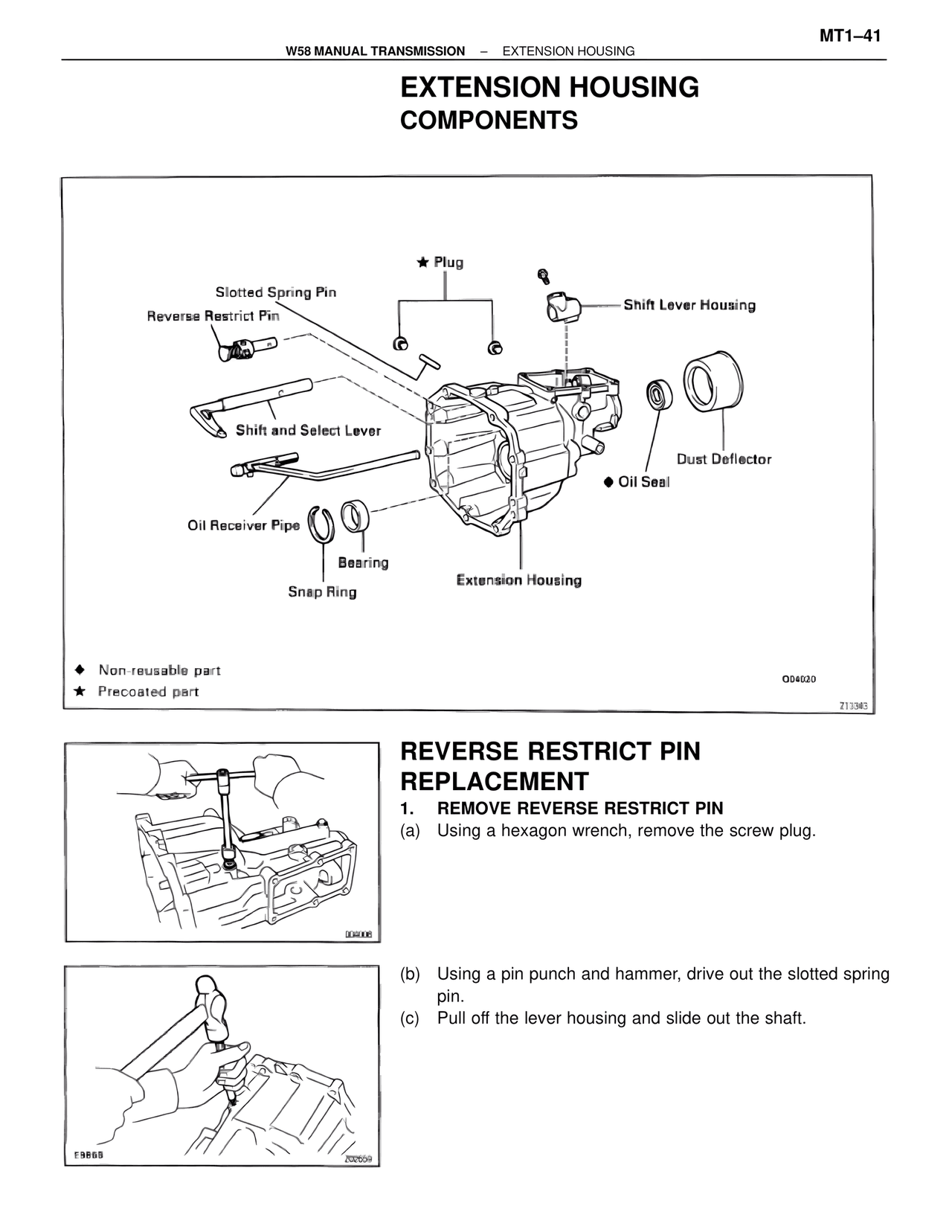

W58 MANUAL TRANSMISSION – EXTENSION HOUSING
EXTENSION HOUSING
COMPONENTS
★ Plug
Slotted Spring Pin
Shift Lever Housing
Reverse Restrict Pin
Shift and Select Lever
Dust Deflector
♦ Oil Seal
Oil Receiver Pipe
Bearing
Snap Ring
Extension Housing
♦ Non-reusable part
★ Precoated part
O04020
Z13343
REVERSE RESTRICT PIN
REPLACEMENT
1. REMOVE REVERSE RESTRICT PIN
(a) Using a hexagon wrench, remove the screw plug.
O04008
(b) Using a pin punch and hammer, drive out the slotted spring pin.
(c) Pull off the lever housing and slide out the shaft.
E9868
200659
