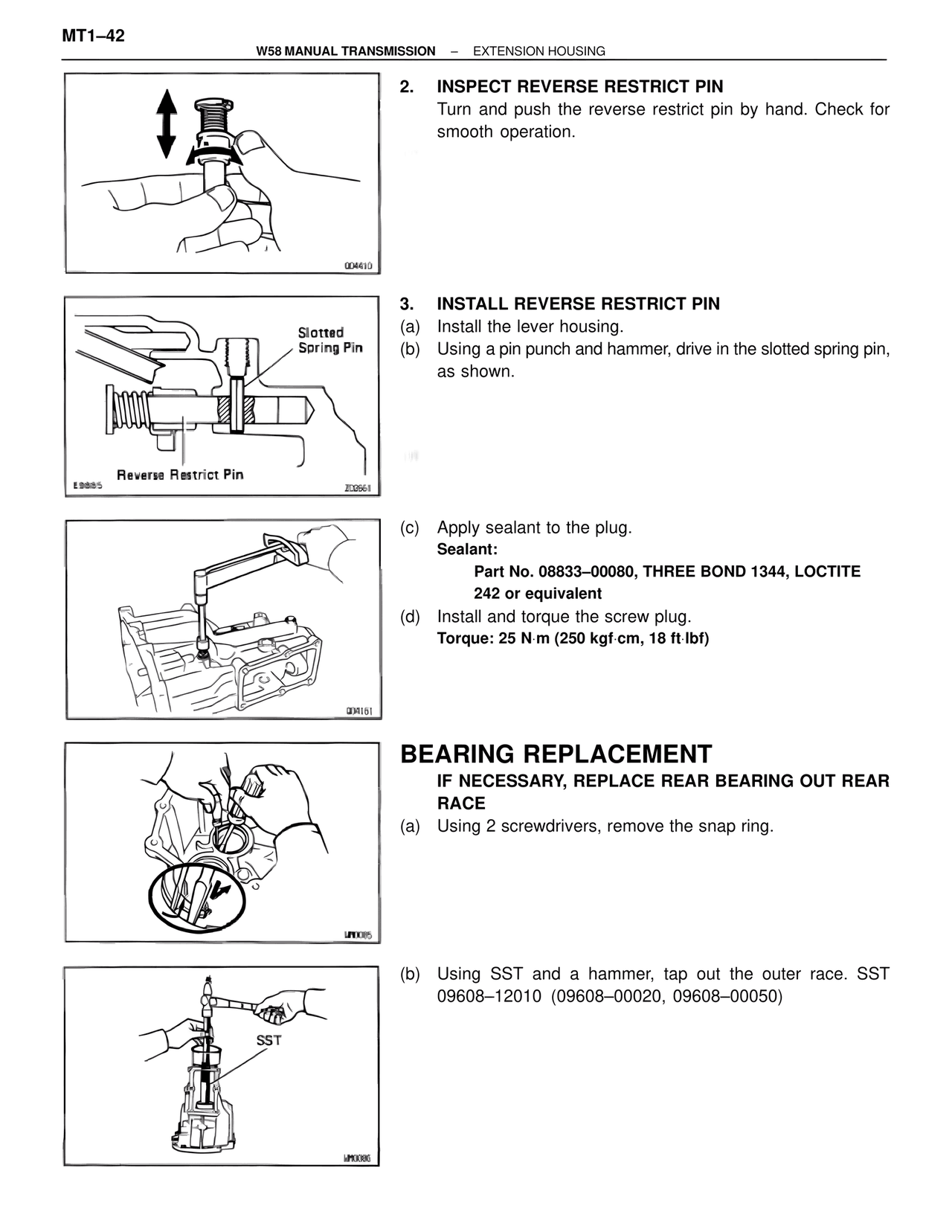

MT1–42
W58 MANUAL TRANSMISSION – EXTENSION HOUSING
2. INSPECT REVERSE RESTRICT PIN
Turn and push the reverse restrict pin by hand. Check for smooth operation.
3. INSTALL REVERSE RESTRICT PIN
(a) Install the lever housing.
(b) Using a pin punch and hammer, drive in the slotted spring pin, as shown.
Slotted Spring Pin
Reverse Restrict Pin
(c) Apply sealant to the plug.
Sealant:
Part No. 08833–00080, THREE BOND 1344, LOCTITE 242 or equivalent
(d) Install and torque the screw plug.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
BEARING REPLACEMENT
IF NECESSARY, REPLACE REAR BEARING OUT REAR RACE
(a) Using 2 screwdrivers, remove the snap ring.
(b) Using SST and a hammer, tap out the outer race. SST 09608–12010 (09608–00020, 09608–00050)
SST
