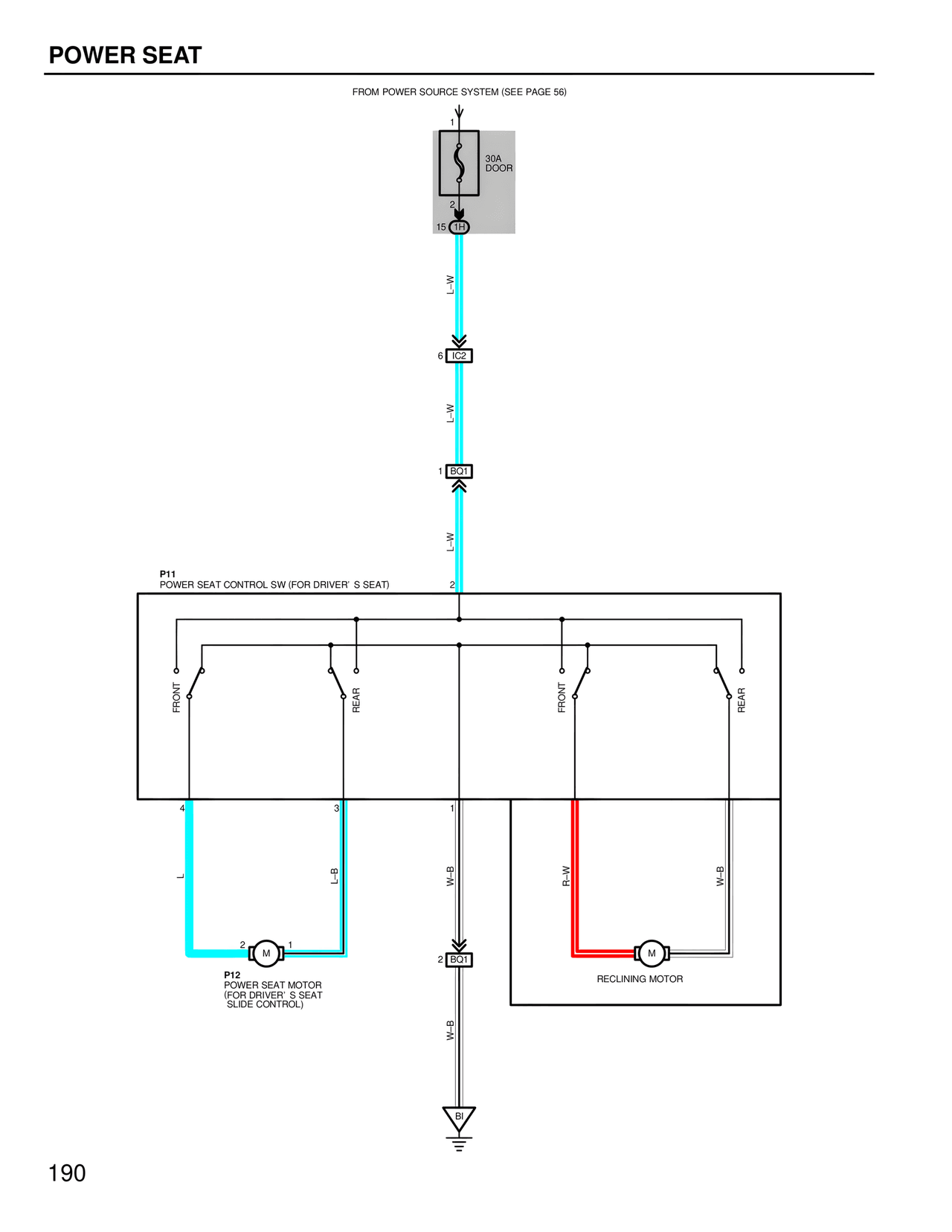

POWER SEAT
FROM POWER SOURCE SYSTEM (SEE PAGE 56)
1
30A
DOOR
2
15 1R
L-W
6 IC2
L-W
1 BQ1
L-W
P11
POWER SEAT CONTROL SW (FOR DRIVER'S SEAT)
2
FRONT
REAR
FRONT
REAR
4
3
1
L
L-B
W-B
R-W
W-B
2 M 1
2 BQ1
M
P12
POWER SEAT MOTOR
(FOR DRIVER'S SEAT
SLIDE CONTROL)
RECLINING MOTOR
W-B
B1
