D–42

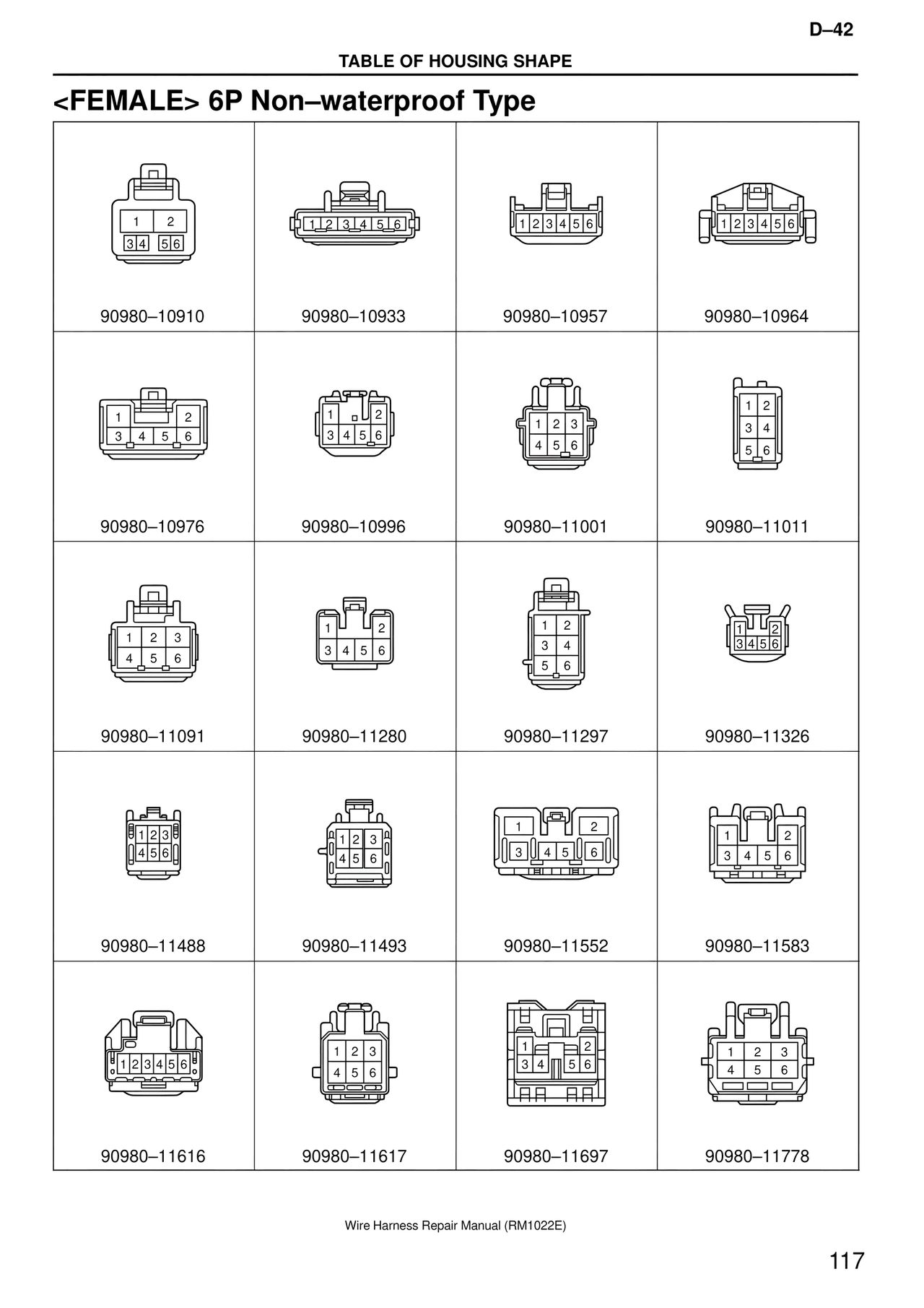

TABLE OF HOUSING SHAPE

<FEMALE> 6P Non–waterproof Type

1  2
3 4  5 6
90980–10910

1 2 3 4 5 6
90980–10933

1 2 3 4 5 6
90980–10957

1 2 3 4 5 6
90980–10964

1        2
3  4  5  6
90980–10976

1     2
3  4 5 6
90980–10996

1  2  3
4  5  6
90980–11001

1  2
3  4
5  6
90980–11011

1  2  3
4  5  6
90980–11091

1        2
3  4  5  6
90980–11280

1  2
3  4
5  6
90980–11297

1  2
3 4 5 6
90980–11326

1 2 3
4 5 6
90980–11488

1 2 3
4 5 6
90980–11493

1        2
3  4  5  6
90980–11552

1        2
3  4  5  6
90980–11583

1 2 3 4 5 6
90980–11616

1  2  3
4  5  6
90980–11617

1     2
3 4  5 6
90980–11697

1  2  3
4  5  6
90980–11778

Wire Harness Repair Manual (RM1022E)

117
