D–43

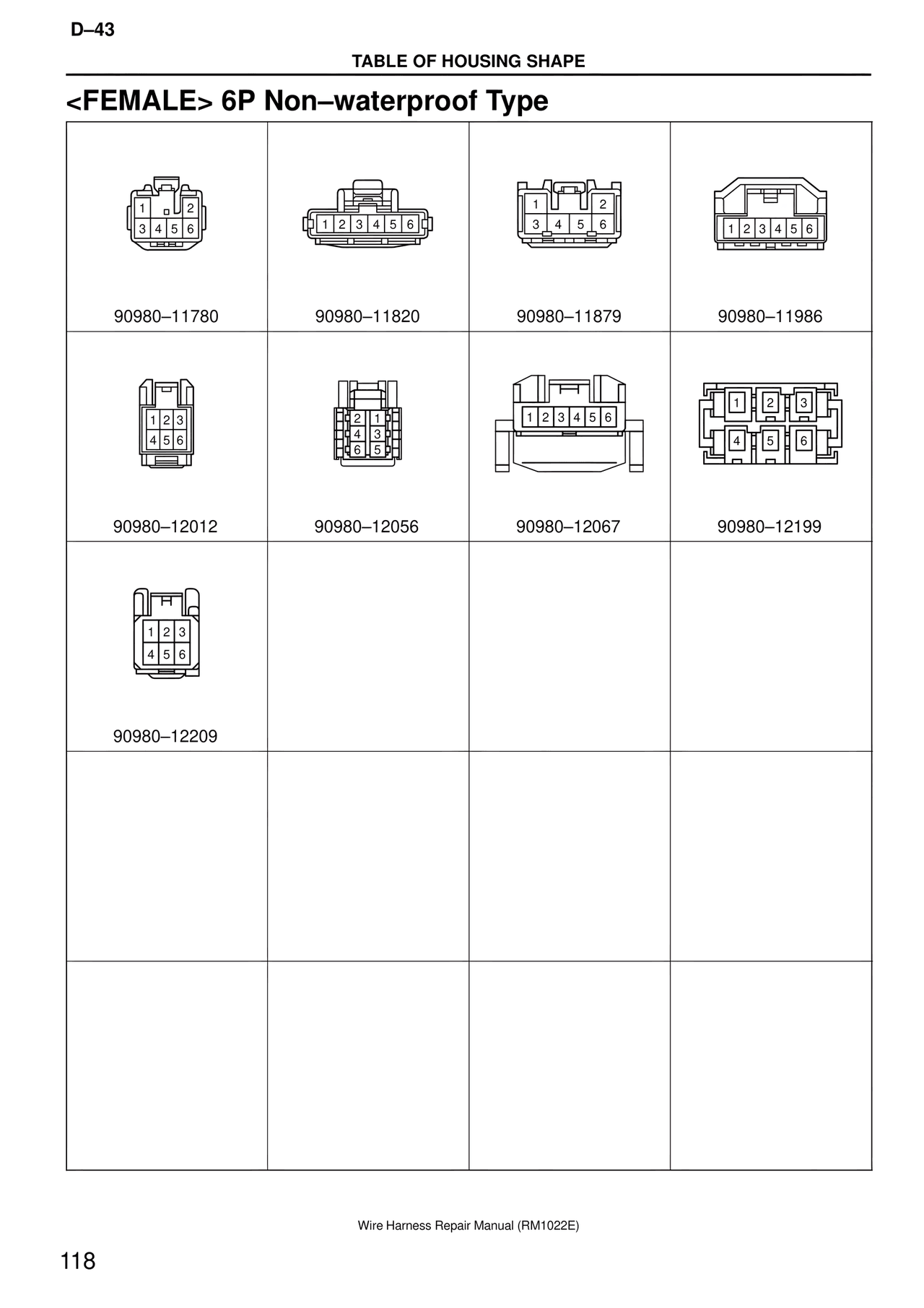

TABLE OF HOUSING SHAPE

<FEMALE> 6P Non–waterproof Type

1  2
3 4 5 6

90980–11780

1 2 3 4 5 6

90980–11820

1      2
3  4  5 6

90980–11879

1 2 3 4 5 6

90980–11986

1 2 3
4 5 6

90980–12012

2  1
4  3
6  5

90980–12056

1 2 3 4 5 6

90980–12067

1  2  3
4  5  6

90980–12199

1 2 3
4 5 6

90980–12209

Wire Harness Repair Manual (RM1022E)

118
