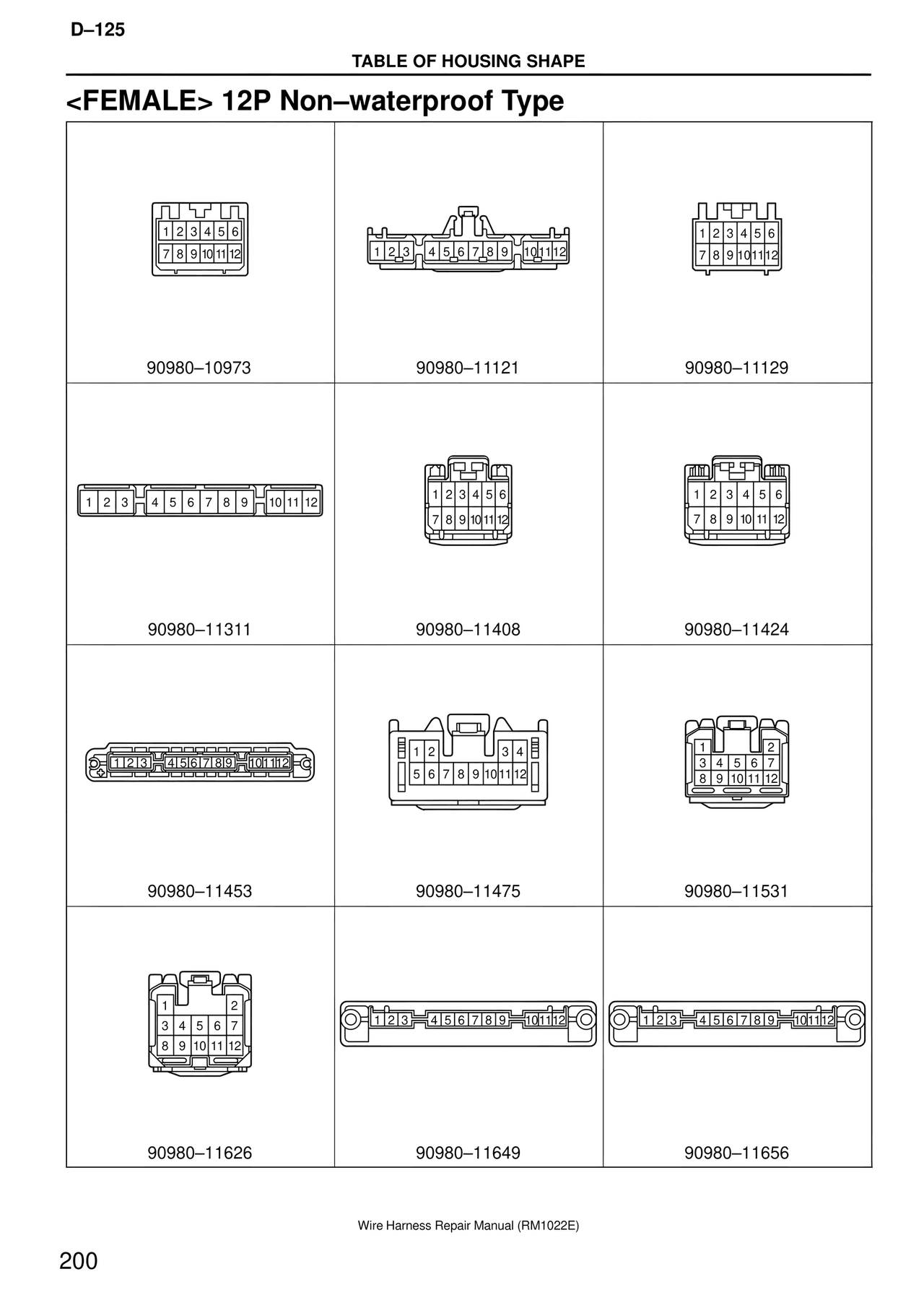

Page text (OCR transcript)

D–125

TABLE OF HOUSING SHAPE

<FEMALE> 12P Non–waterproof Type

1 2 3 4 5 6
7 8 9 10 11 12

90980–10973

1 2 3   4 5 6 7 8 9   10 11 12

90980–11121

1 2 3 4 5 6
7 8 9 10 11 12

90980–11129

1  2  3   4  5  6  7  8  9   10  11  12

90980–11311

1 2 3 4 5 6
7 8 9 10 11 12

90980–11408

1  2  3  4  5  6
7  8  9  10  11  12

90980–11424

1 2 3 4 5 6 7 8 9   10 11 12

90980–11453

1  2      3  4
5  6  7  8  9  10 11 12

90980–11475

1        2
3  4  5  6  7
8  9  10  11  12

90980–11531

1        2
3  4  5  6  7
8  9  10  11  12

90980–11626

1 2 3   4 5 6 7 8 9   10 11 12

90980–11649

1 2 3   4 5 6 7 8 9   10 11 12

90980–11656

Wire Harness Repair Manual (RM1022E)
