D–126

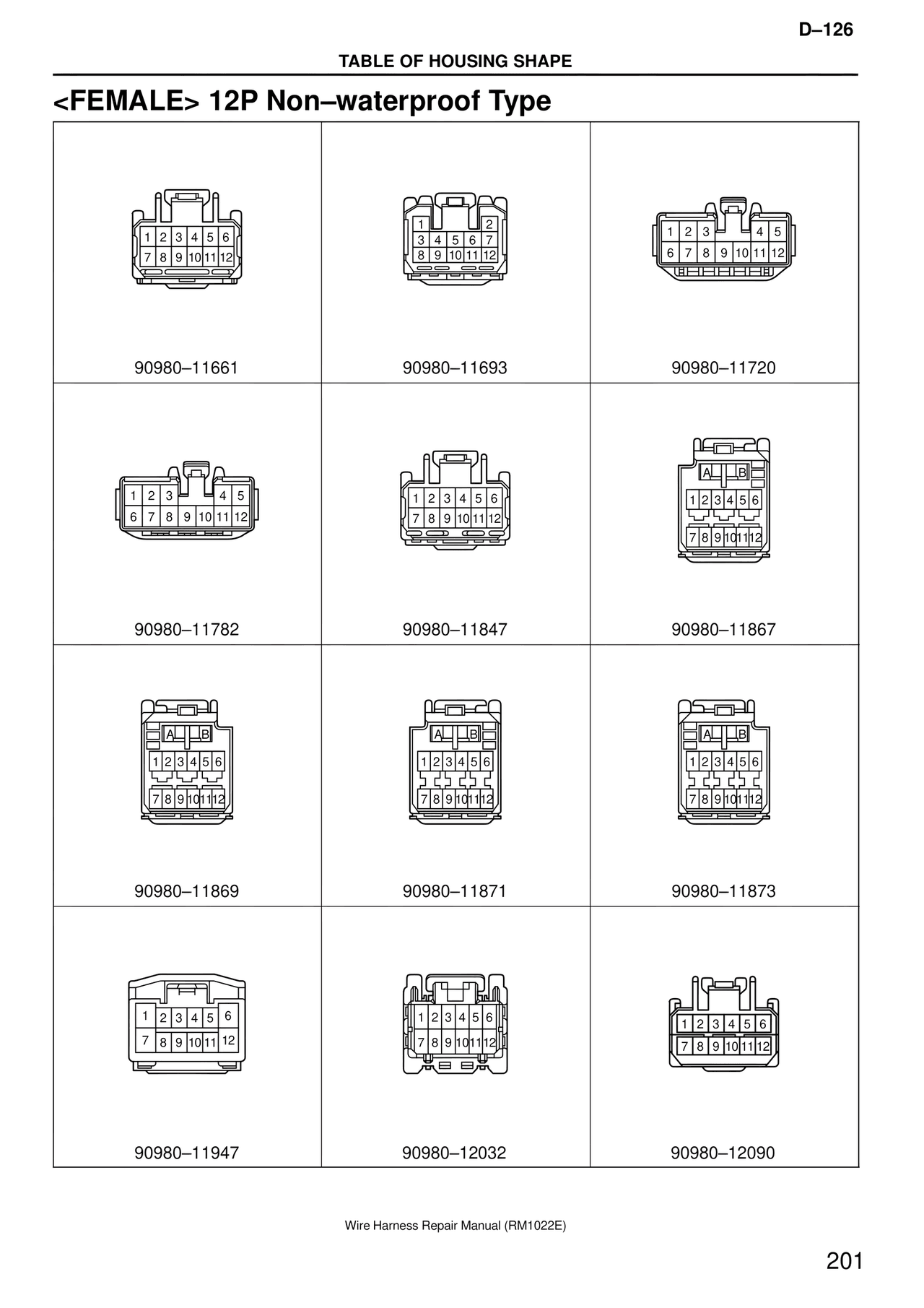

TABLE OF HOUSING SHAPE
<FEMALE> 12P Non–waterproof Type
1 2 3 4 5 6
7 8 9 10 11 12
90980–11661
1 2
3 4 5 6 7
8 9 10 11 12
90980–11693
1 2 3 4 5
6 7 8 9 10 11 12
90980–11720
1 2 3 4 5
6 7 8 9 10 11 12
90980–11782
1 2 3 4 5 6
7 8 9 10 11 12
90980–11847
A B
1 2 3 4 5 6
7 8 9 10 11 12
90980–11867
A B
1 2 3 4 5 6
7 8 9 10 11 12
90980–11869
A B
1 2 3 4 5 6
7 8 9 10 11 12
90980–11871
A B
1 2 3 4 5 6
7 8 9 10 11 12
90980–11873
1 2 3 4 5 6
7 8 9 10 11 12
90980–11947
1 2 3 4 5 6
7 8 9 10 11 12
90980–12032
1 2 3 4 5 6
7 8 9 10 11 12
90980–12090
Wire Harness Repair Manual (RM1022E)
201
