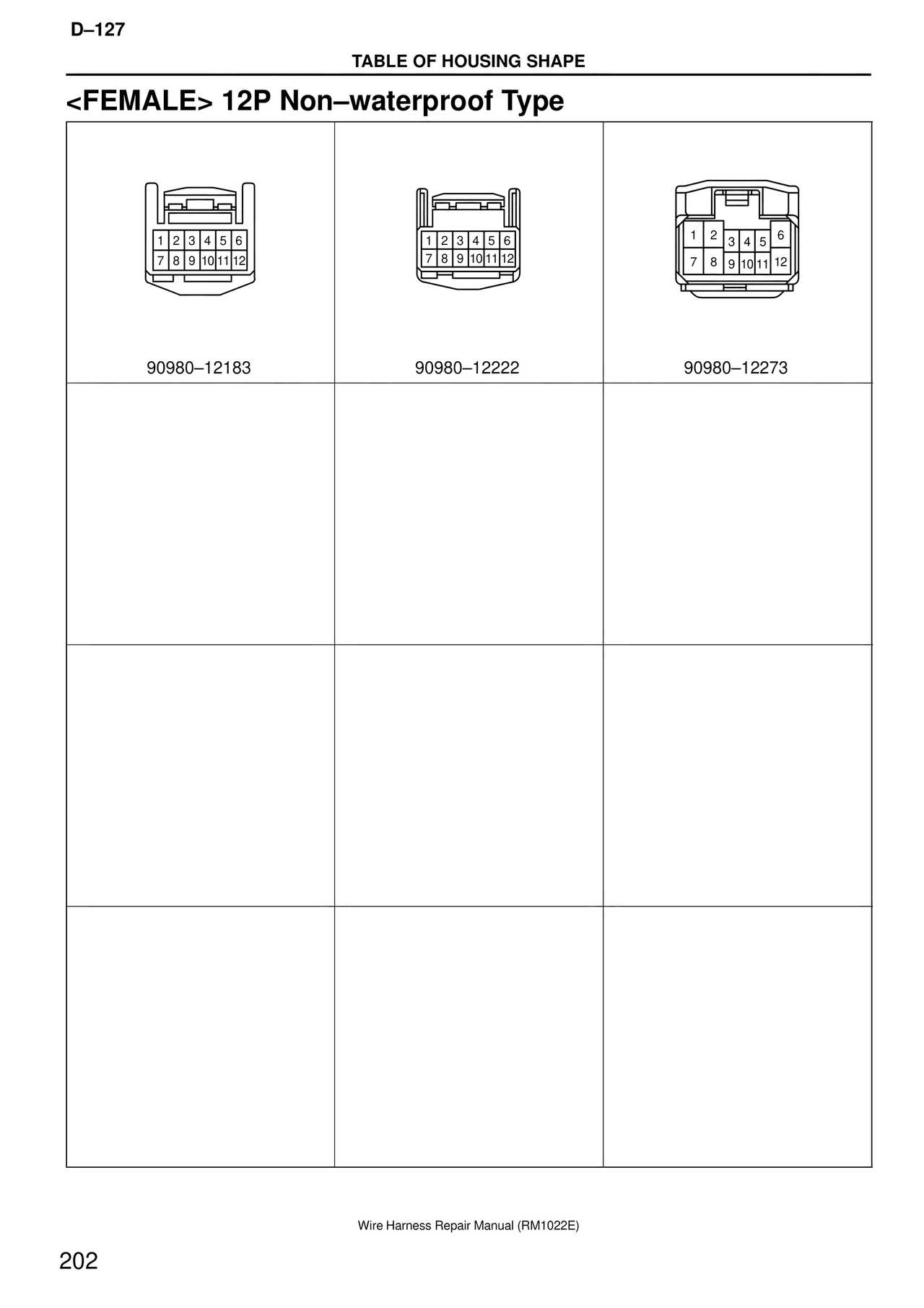

D–127 TABLE OF HOUSING SHAPE <FEMALE> 12P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 90980–12183 1 2 3 4 5 6 7 8 9 10 11 12 90980–12222 1 2 3 4 5 6 7 8 9 10 11 12 90980–12273 Wire Harness Repair Manual (RM1022E) 202
