WH/Wire Harness — <female> 13P Non–waterproof Type, page 203

203 / 414

<female> 13P Non–waterproof Type — MK4 Supra Wire Harness, page 203

100%

Page text (OCR transcript)

D–128

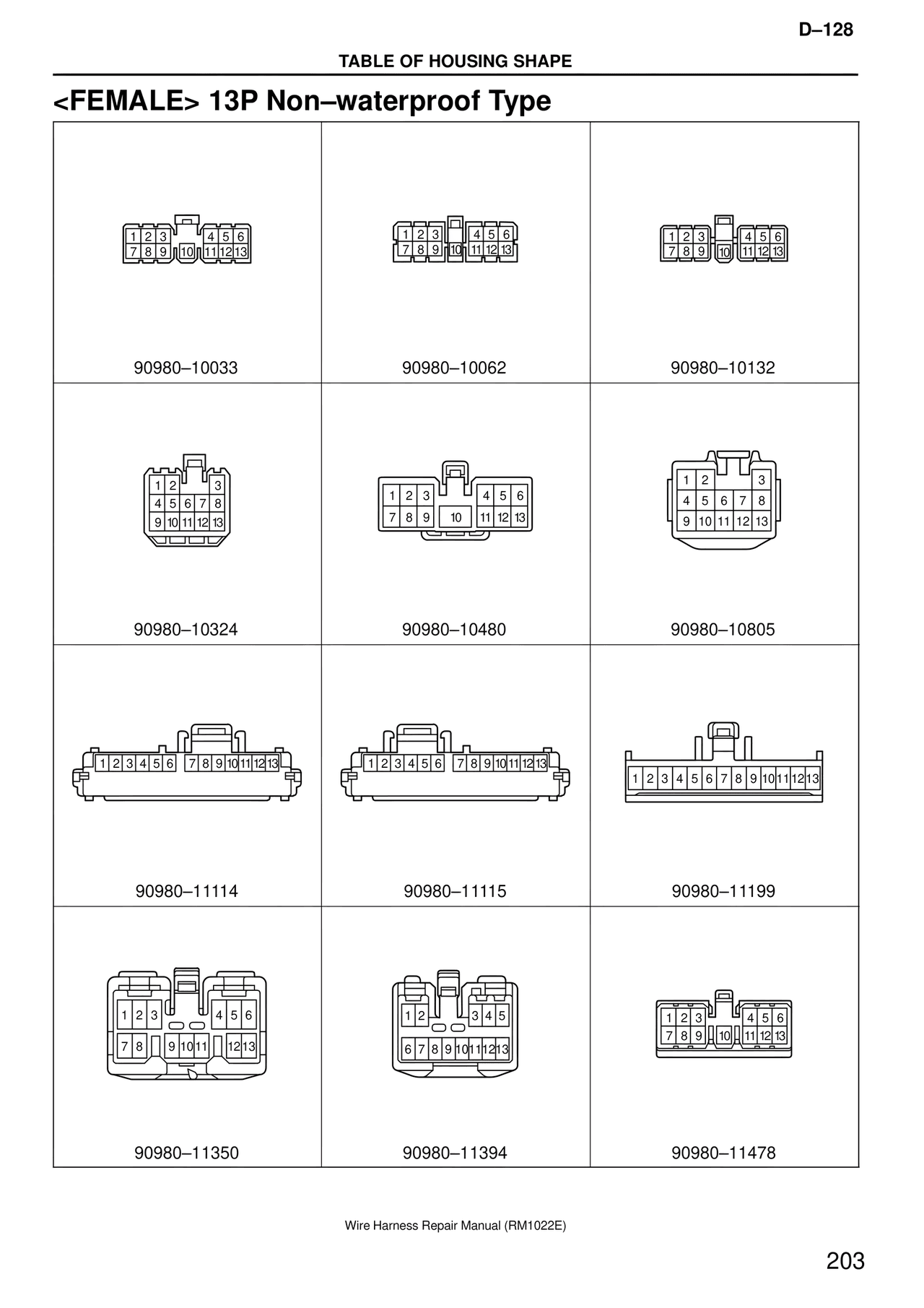

TABLE OF HOUSING SHAPE

<FEMALE> 13P Non–waterproof Type

1 2 3    4 5 6
7 8 9 10 11 12 13

90980–10033

1 2 3    4 5 6
7 8 9 10 11 12 13

90980–10062

1 2 3    4 5 6
7 8 9 10 11 12 13

90980–10132

1 2      3
4 5 6 7 8
9 10 11 12 13

90980–10324

1 2 3    4 5 6
7 8 9  10  11 12 13

90980–10480

1  2       3
4  5  6  7  8
9 10 11 12 13

90980–10805

1 2 3 4 5 6  7 8 9 10 11 12 13

90980–11114

1 2 3 4 5 6  7 8 9 10 11 12 13

90980–11115

1 2 3 4 5 6 7 8 9 10 11 12 13

90980–11199

1 2 3    4 5 6
7 8   9 10 11  12 13

90980–11350

1 2    3 4 5
6 7 8 9 10 11 12 13

90980–11394

1 2 3    4 5 6
7 8 9  10  11 12 13

90980–11478

Wire Harness Repair Manual (RM1022E)
