WH/Wire Harness — <female> 16P Non–waterproof Type, page 212

D–137

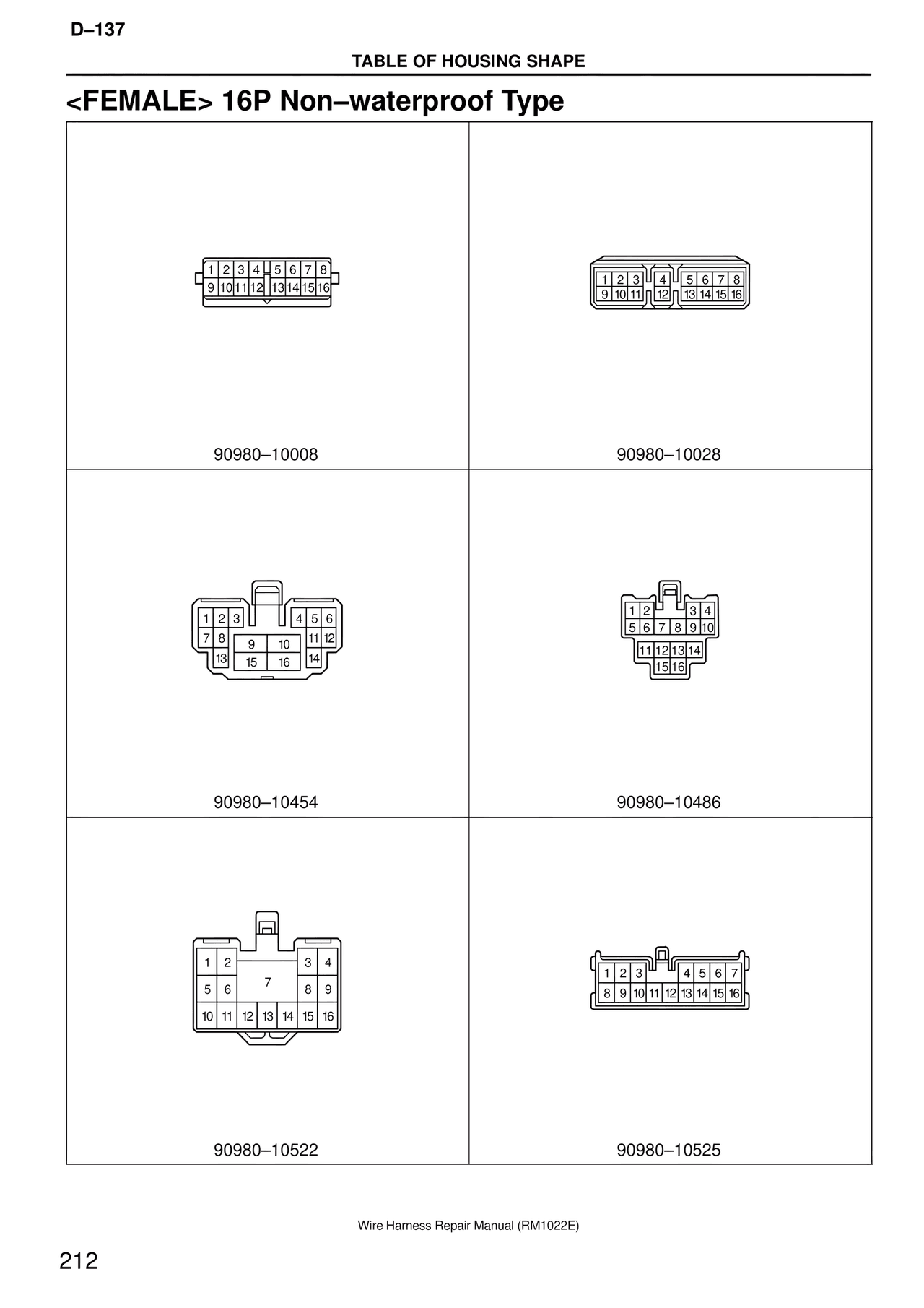

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–10008

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–10028

1 2 3 4 5 6
7 8 9 10 11 12
13 15 16 14

90980–10454

1 2 3 4
5 6 7 8 9 10
11 12 13 14
15 16

90980–10486

1 2 3 4
5 6 7 8 9
10 11 12 13 14 15 16

90980–10522

1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16

90980–10525
