WH/Wire Harness — <female> 16P Non–waterproof Type, page 213

D–138

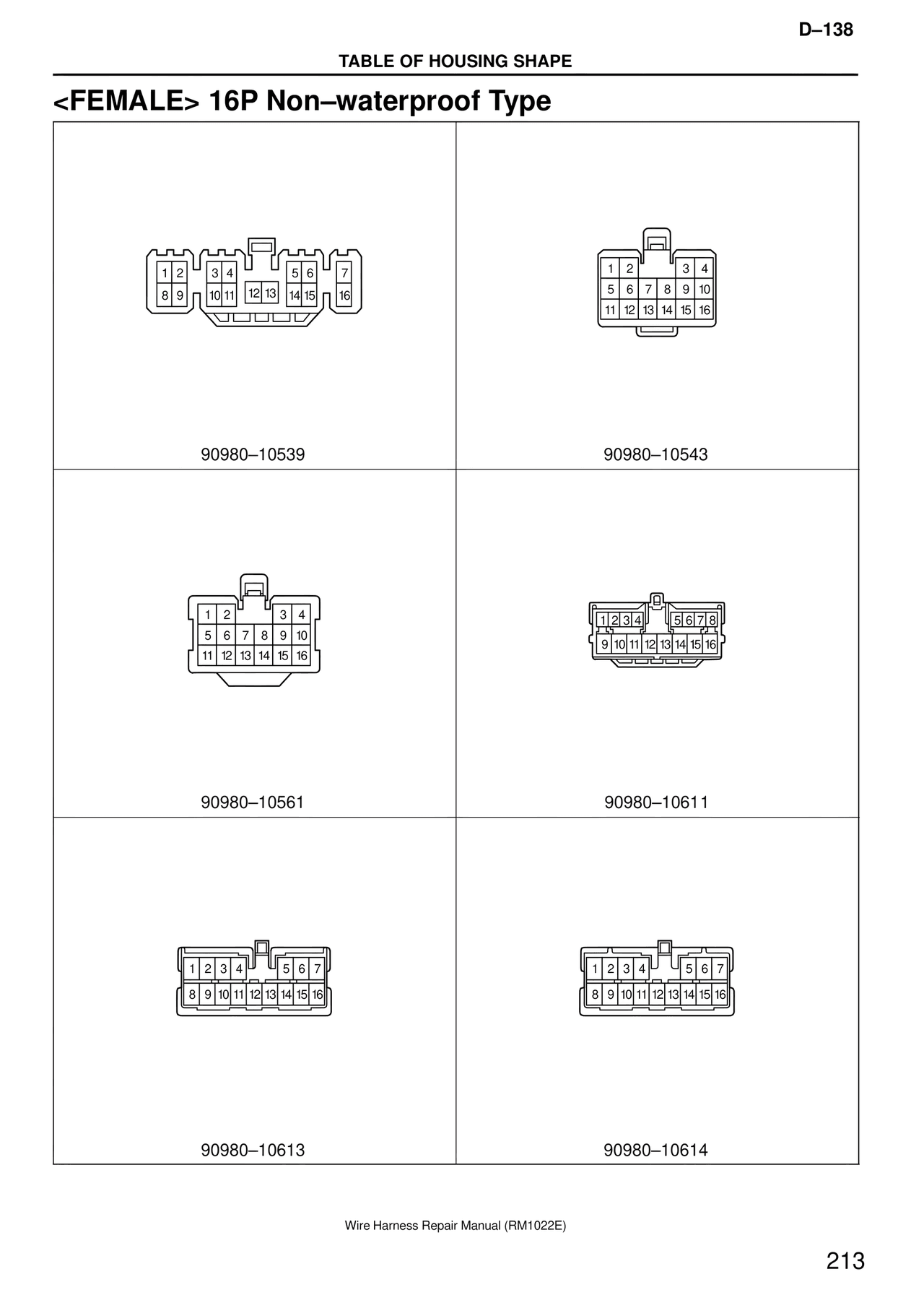

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1  2     3  4     5  6    7
8  9   10 11  12 13  14 15   16

90980–10539

1  2        3  4
5  6  7  8  9  10
11 12 13 14 15 16

90980–10543

1  2        3  4
5  6  7  8  9  10
11 12 13 14 15 16

90980–10561

1  2  3  4     5  6  7  8
9  10 11 12 13 14 15 16

90980–10611

1  2  3  4     5  6  7
8  9  10 11 12 13 14 15 16

90980–10613

1  2  3  4     5  6  7
8  9  10 11 12 13 14 15 16

90980–10614

Wire Harness Repair Manual (RM1022E)
