WH/Wire Harness — <female> 16P Non–waterproof Type, page 214

D–139

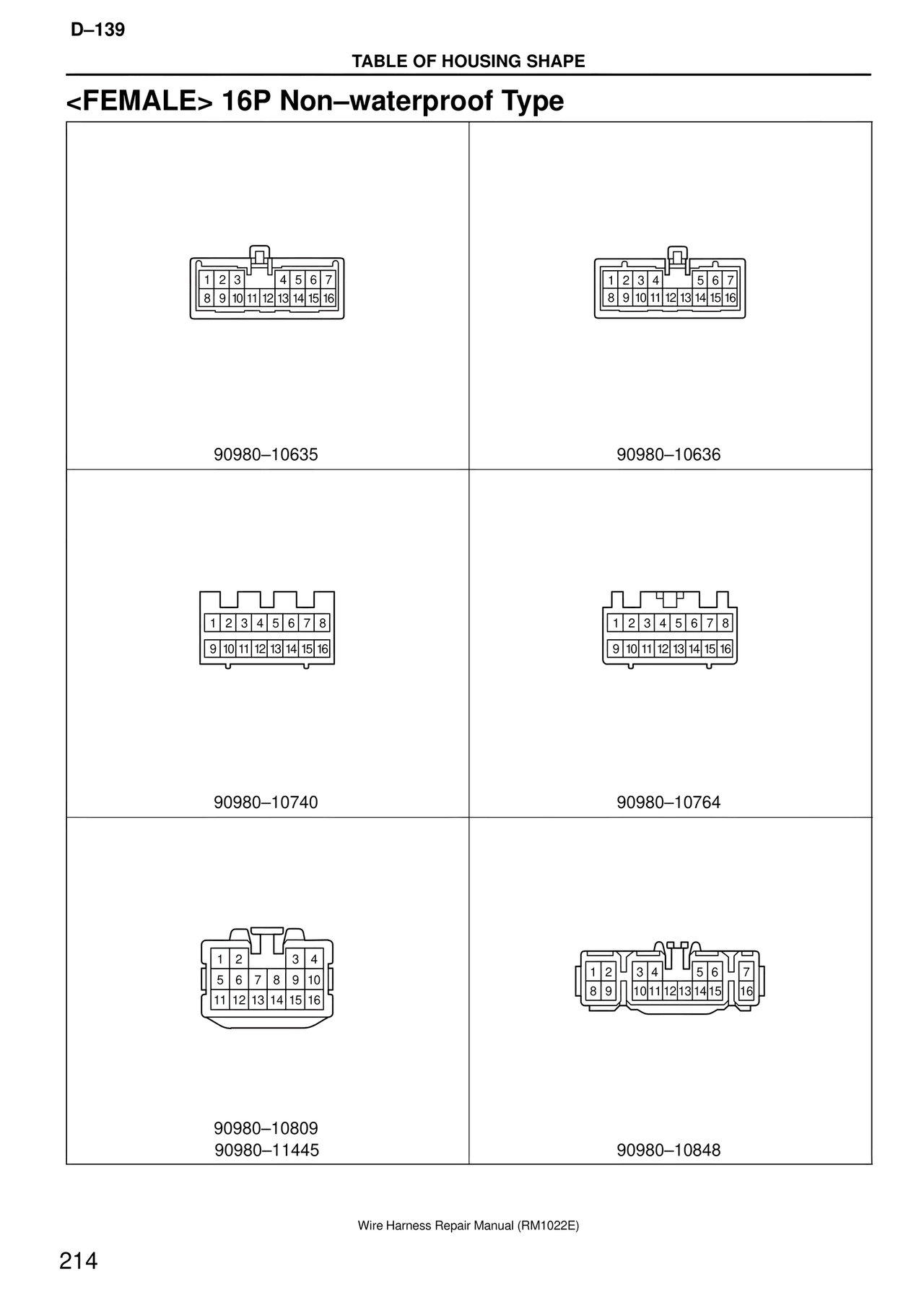

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3    4 5 6 7
8 9 10 11 12 13 14 15 16

90980–10635

1 2 3 4    5 6 7
8 9 10 11 12 13 14 15 16

90980–10636

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–10740

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–10764

1  2       3  4
5  6  7  8  9  10
11 12 13 14 15 16

90980–10809
90980–11445

1  2   3  4   5  6  7
8  9  10 11 12 13 14 15   16

90980–10848

Wire Harness Repair Manual (RM1022E)
