WH/Wire Harness — <female> 16P Non–waterproof Type, page 215

D–140

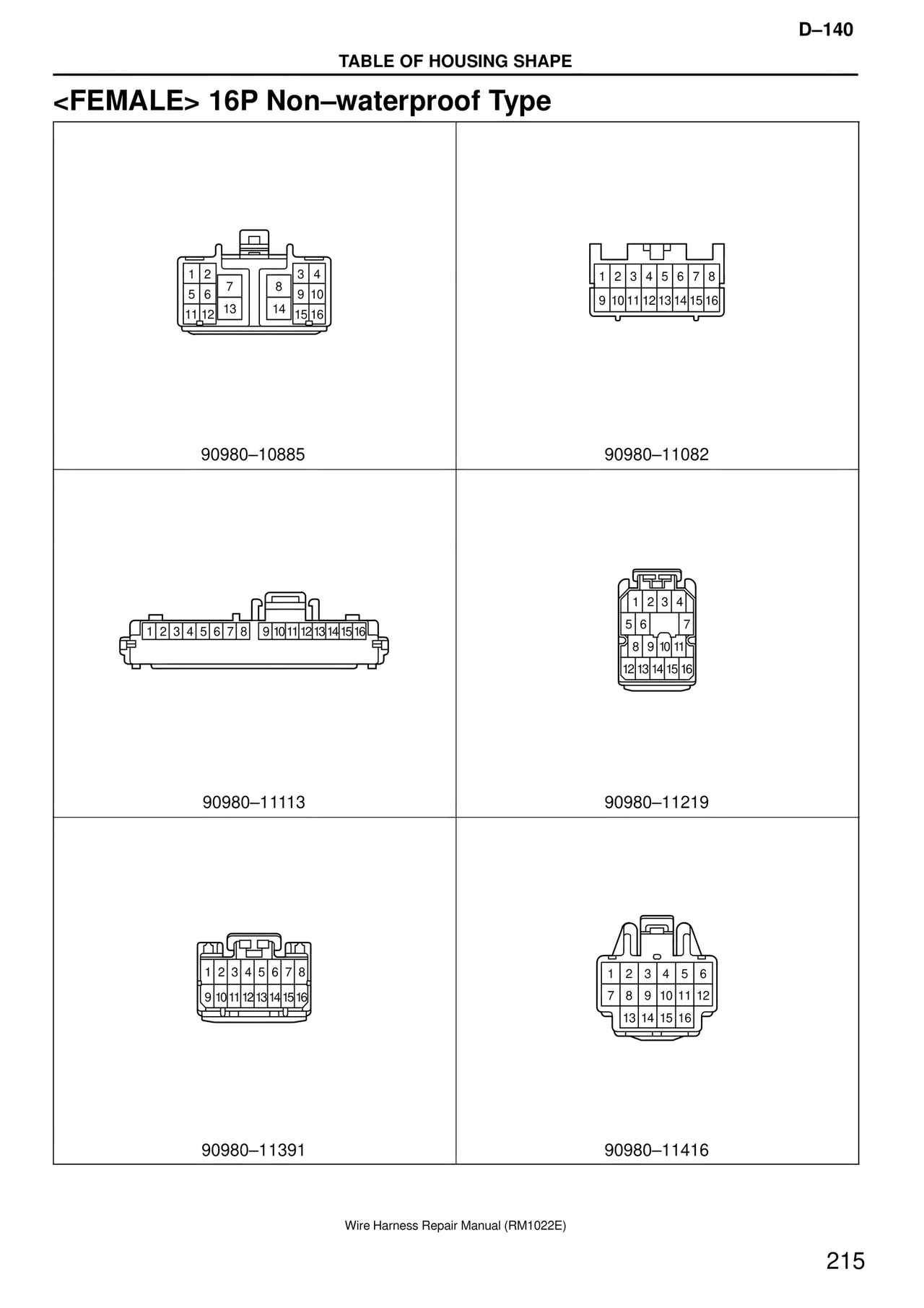

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1  2       3  4
5  6   7   8   9 10
11 12  13  14  15 16

90980–10885

1  2  3  4  5  6  7  8
9 10 11 12 13 14 15 16

90980–11082

1 2 3 4 5 6 7 8   9 10 11 12 13 14 15 16

90980–11113

1  2  3  4
5  6       7
8  9 10 11
12 13 14 15 16

90980–11219

1  2  3  4  5  6  7  8
9 10 11 12 13 14 15 16

90980–11391

1  2  3  4  5  6
7  8  9 10 11 12
13 14 15 16

90980–11416

Wire Harness Repair Manual (RM1022E)
