WH/Wire Harness — <female> 16P Non–waterproof Type, page 216

D–141

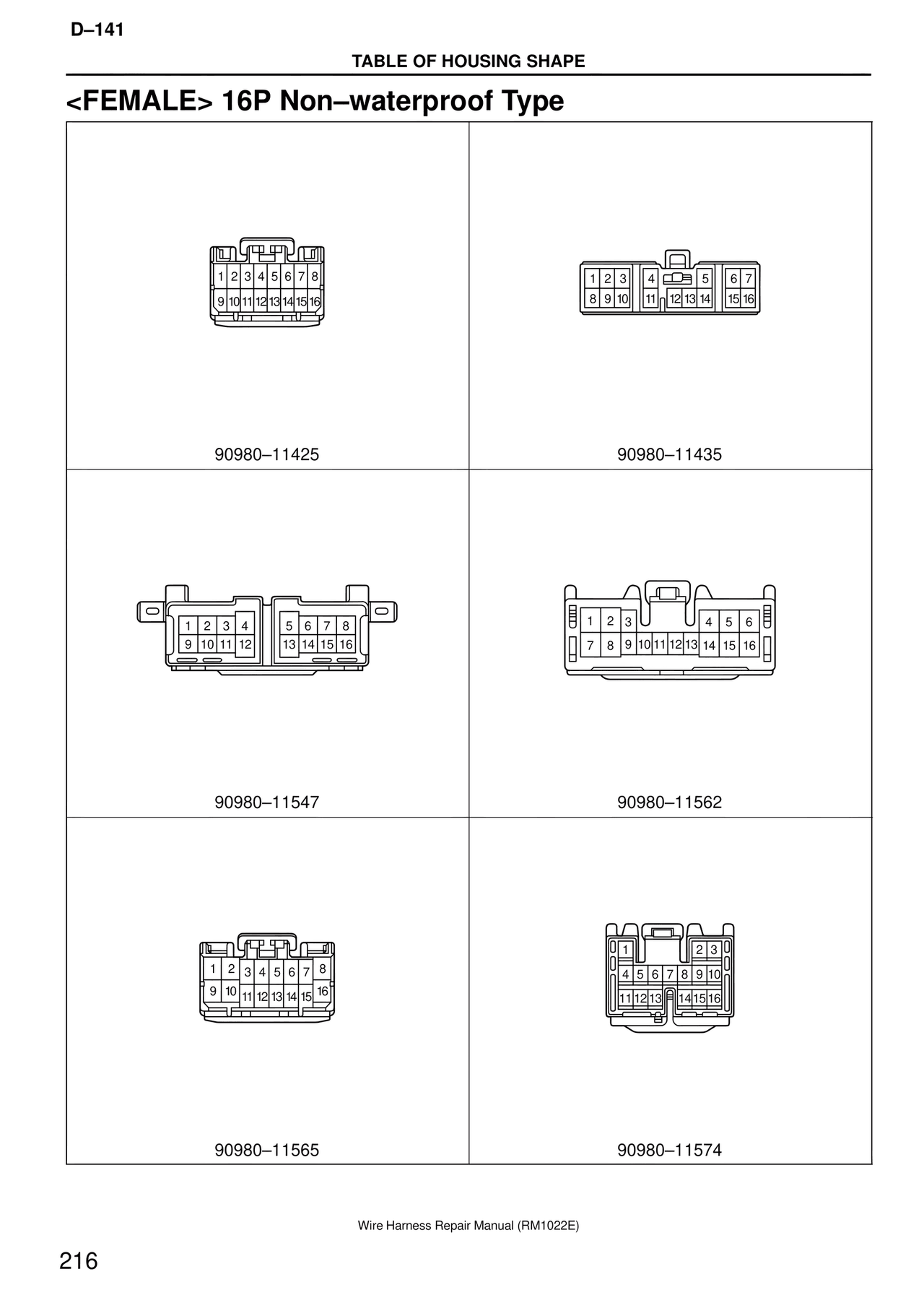

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11425

1 2 3  4  5  6 7
8 9 10  11 12 13 14  15 16

90980–11435

1 2 3 4  5 6 7 8
9 10 11 12  13 14 15 16

90980–11547

1 2 3  4 5 6
7 8 9 10 11 12 13  14 15 16

90980–11562

1 2 3 4 5 6 7 8
9 10  11 12 13 14 15 16

90980–11565

1  2 3
4 5 6 7 8 9 10
11 12 13  14 15 16

90980–11574
