D–209

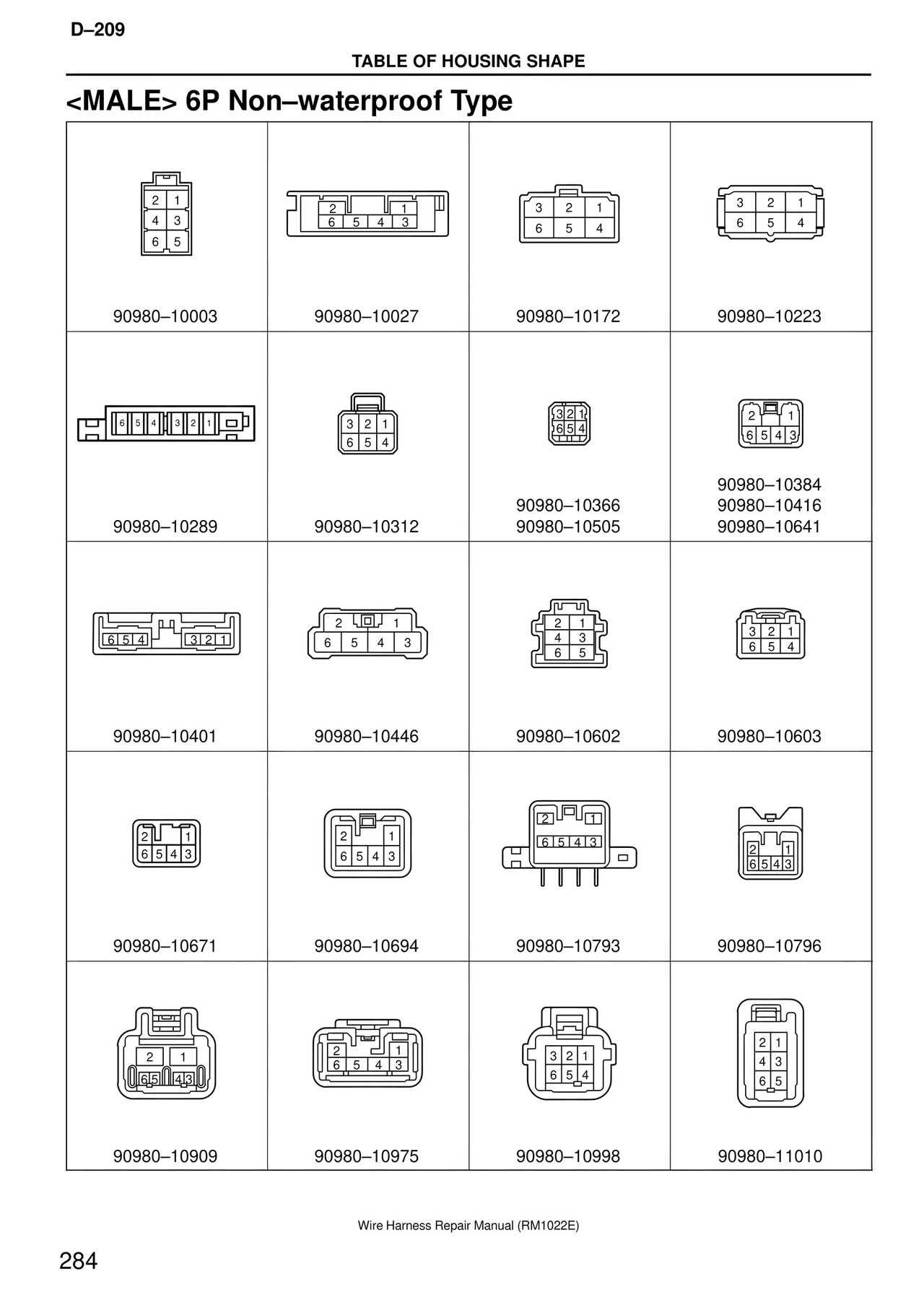

TABLE OF HOUSING SHAPE

<MALE> 6P Non–waterproof Type

2  1
4  3
6  5

90980–10003

2      1
6  5  4  3

90980–10027

3  2  1
6  5  4

90980–10172

3  2  1
6  5  4

90980–10223

6  5  4  3  2  1

90980–10289

3  2  1
6  5  4

90980–10312

3  2  1
6  5  4

90980–10366
90980–10505

2  1
6  5  4  3

90980–10384
90980–10416
90980–10641

6  5  4    3  2  1

90980–10401

2      1
6  5  4  3

90980–10446

2  1
4  3
6  5

90980–10602

3  2  1
6  5  4

90980–10603

2  1
6  5  4  3

90980–10671

2      1
6  5  4  3

90980–10694

2
6  5  4  3

90980–10793

2
6  5  4  3

90980–10796

2  1
6  5  4  3

90980–10909

2      1
6  5  4  3

90980–10975

3  2  1
6  5  4

90980–10998

2  1
4  3
6  5

90980–11010

Wire Harness Repair Manual (RM1022E)

284
