D–210

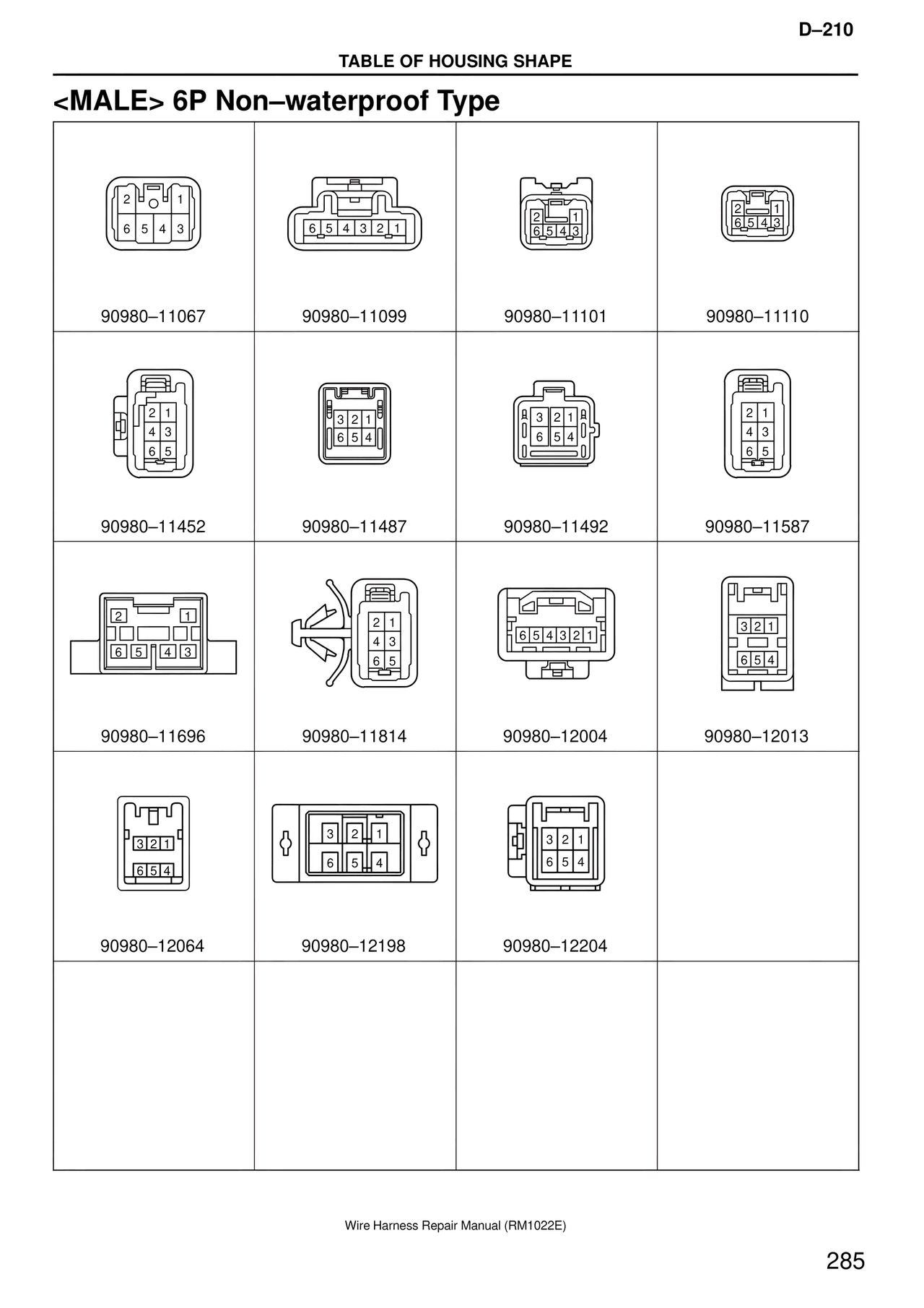

TABLE OF HOUSING SHAPE

<MALE> 6P Non–waterproof Type

2  1
6 5 4 3

90980–11067

6 5 4 3 2 1

90980–11099

2  1
6 5 4 3

90980–11101

2  1
6 5 4 3

90980–11110

2 1
4 3
6 5

90980–11452

3 2 1
6 5 4

90980–11487

3 2 1
6 5 4

90980–11492

2 1
4 3
6 5

90980–11587

2  1
6 5  4 3

90980–11696

2 1
4 3
6 5

90980–11814

6 5 4 3 2 1

90980–12004

3 2 1
6 5 4

90980–12013

3 2 1
6 5 4

90980–12064

3  2  1
6  5  4

90980–12198

3 2 1
6 5 4

90980–12204
